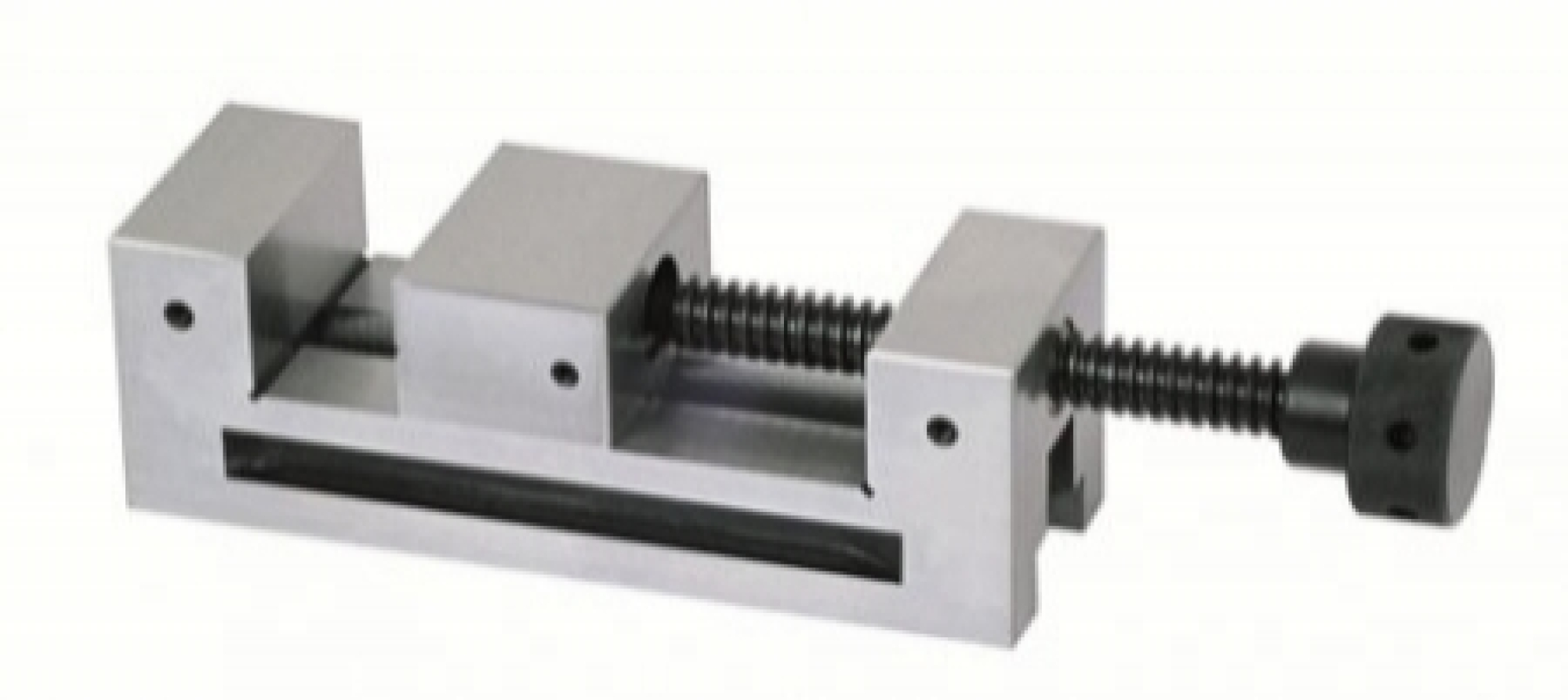

Grinding vise BG125
Grinding vise BG125
Technical Characteristics:
- Industry quality
- Hardened to HRC58-62
- Grinded
- Parallelism 0.005 mm / 100 mm
- Squareness 0.005 mm
Measurements:
- Jaw width B: 125 mm
- Jaw height H: 50 mm
- Jaw span Smax: 160 mm
- Length L: 300 mm
- Weight: 19.5 kg
