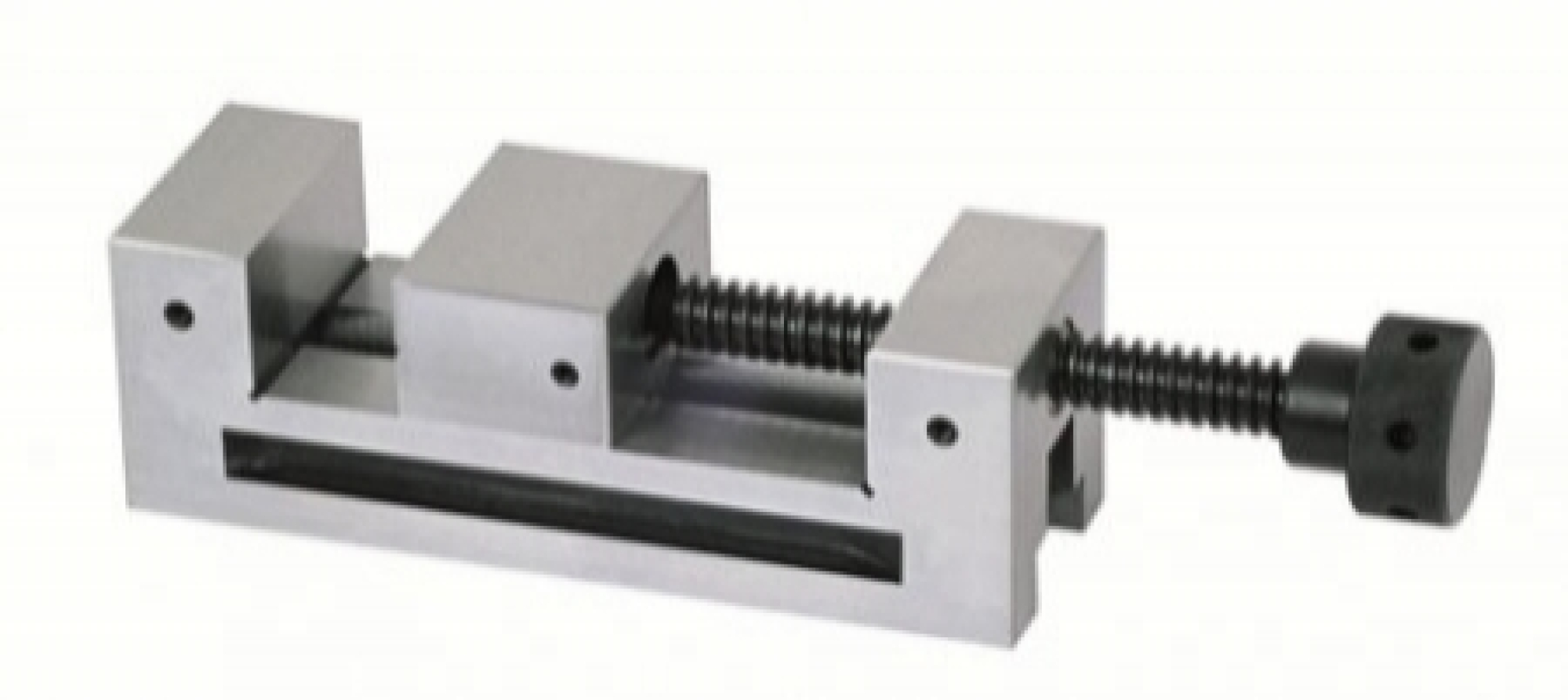

Grinding vise BG100
Grinding vise BG100
Technical Characteristics:
- Industry quality
- Hardened to HRC58-62
- Grinded
- Parallelism 0.005 mm / 100 mm
- Squareness 0.005 mm
Measurements:
- Jaw width B: 100 mm
- Jaw height H: 45 mm
- Jaw span Smax: 125 mm
- Length L: 260 mm
- Weight: 13.0 kg
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
