Y/longitudinal axes milled parts for spindle drive 16 mm Upgrade kit
Discover the possibility of upgrading the Y/longitudinal axis of your Volksfräse from Jaster CNC Technik GmbH!
Would you like to optimise your Volksfräse and raise it to a higher level? Our innovative spindle upgrade kit offers you the chance to improve your longitudinal axis with a high-quality 16 mm ball screw. Specially developed for the Volksfräse, this solution offers maximum flexibility and performance.
The upgrade kit allows for easy installation of the ball screw spindle along the aluminium profiles of your Volksfräse. You can use virtually any length of 16 mm spindle that fits between the side cheeks. Our kit includes a fixed bearing body, a loose bearing body, a driver and a sliding plate for the motor. The included driver has been specially designed to ensure smooth assembly without additional effort.

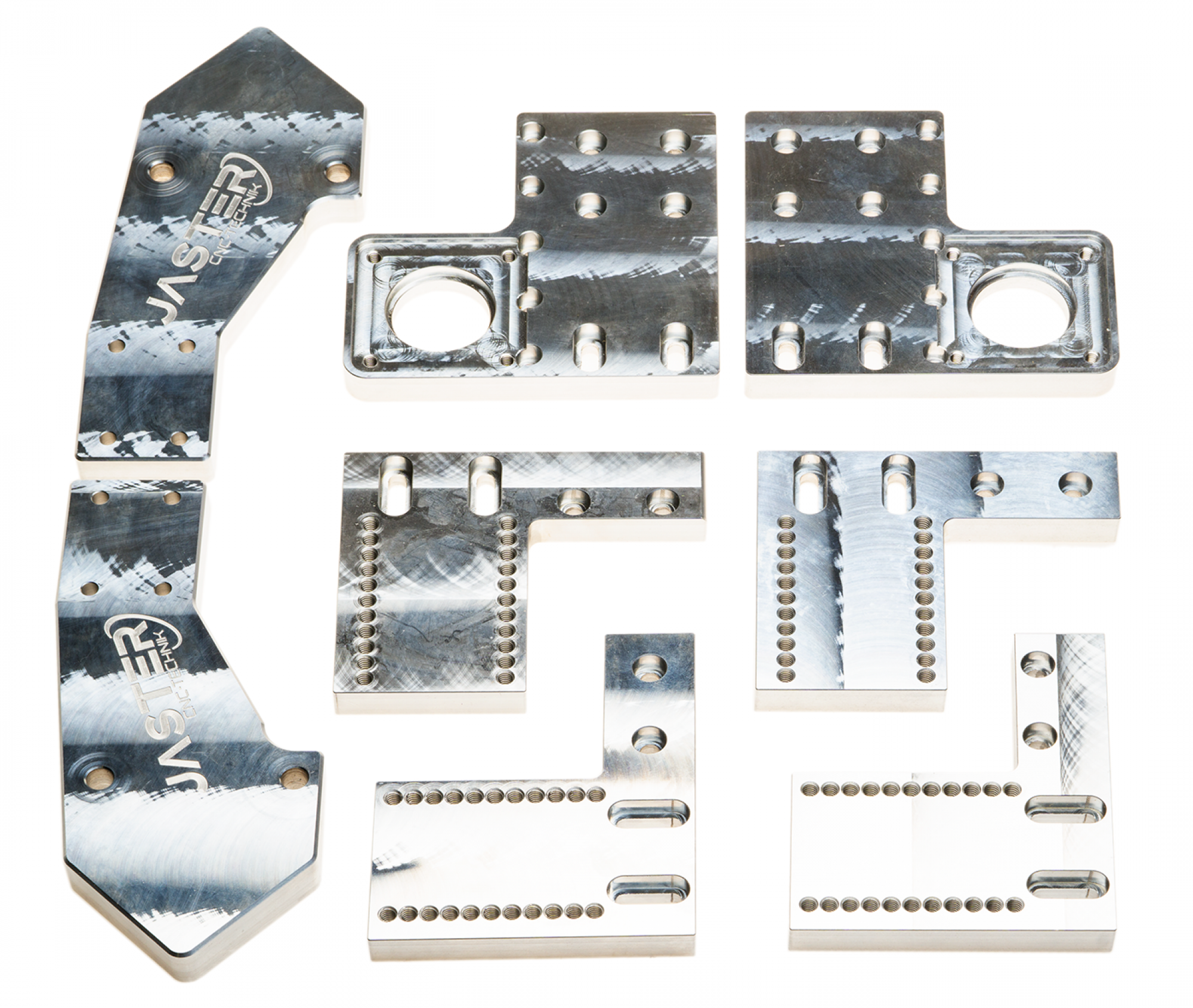

The following milled parts are included in the scope of delivery for each axis:
- 1 x fixed bearing body left/right
- 1 x floating bearing body left/right
- 1 x driver left/right
- 1 x sliding plate/motor plate left/right
- Fastening material
The spindle drive is not included!
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
