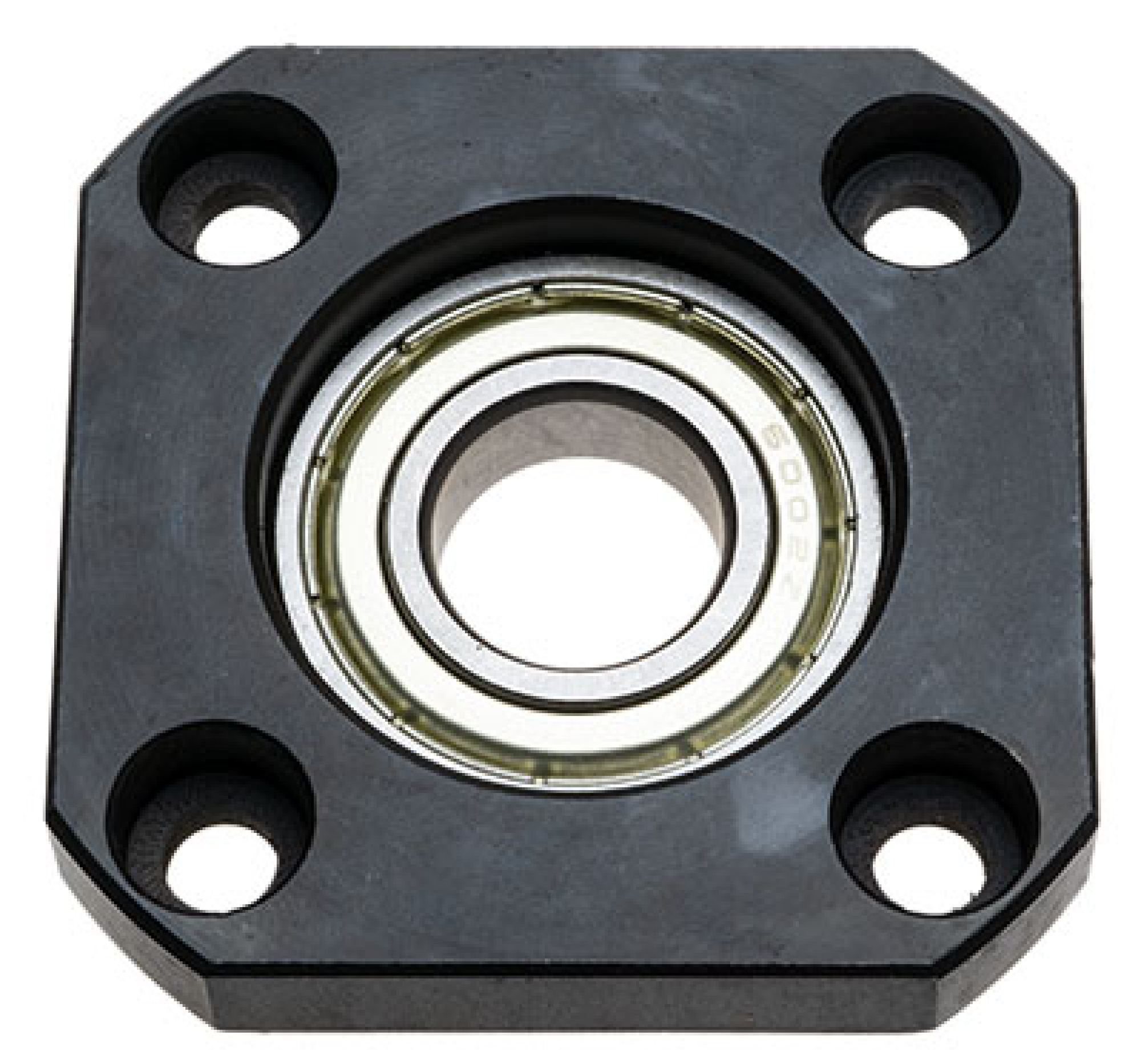

Flange float bearing block FF12 for Ø 16 mm ball screw Blue Line
Mounting block floating bearing FF12
for Ø 16 mm ball screw Blue Line
A spindle is held radially in the floating bearing block by using a deep groove ball bearing. When fastening the spindle with the supplied locking ring, the spindle is held radially in position, while the axial position remains variable. Axial fixation is only possible through the connection with a fixed bearing on the opposite side.

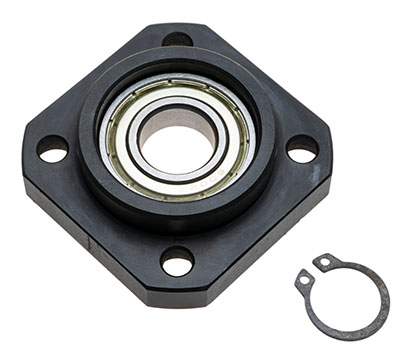

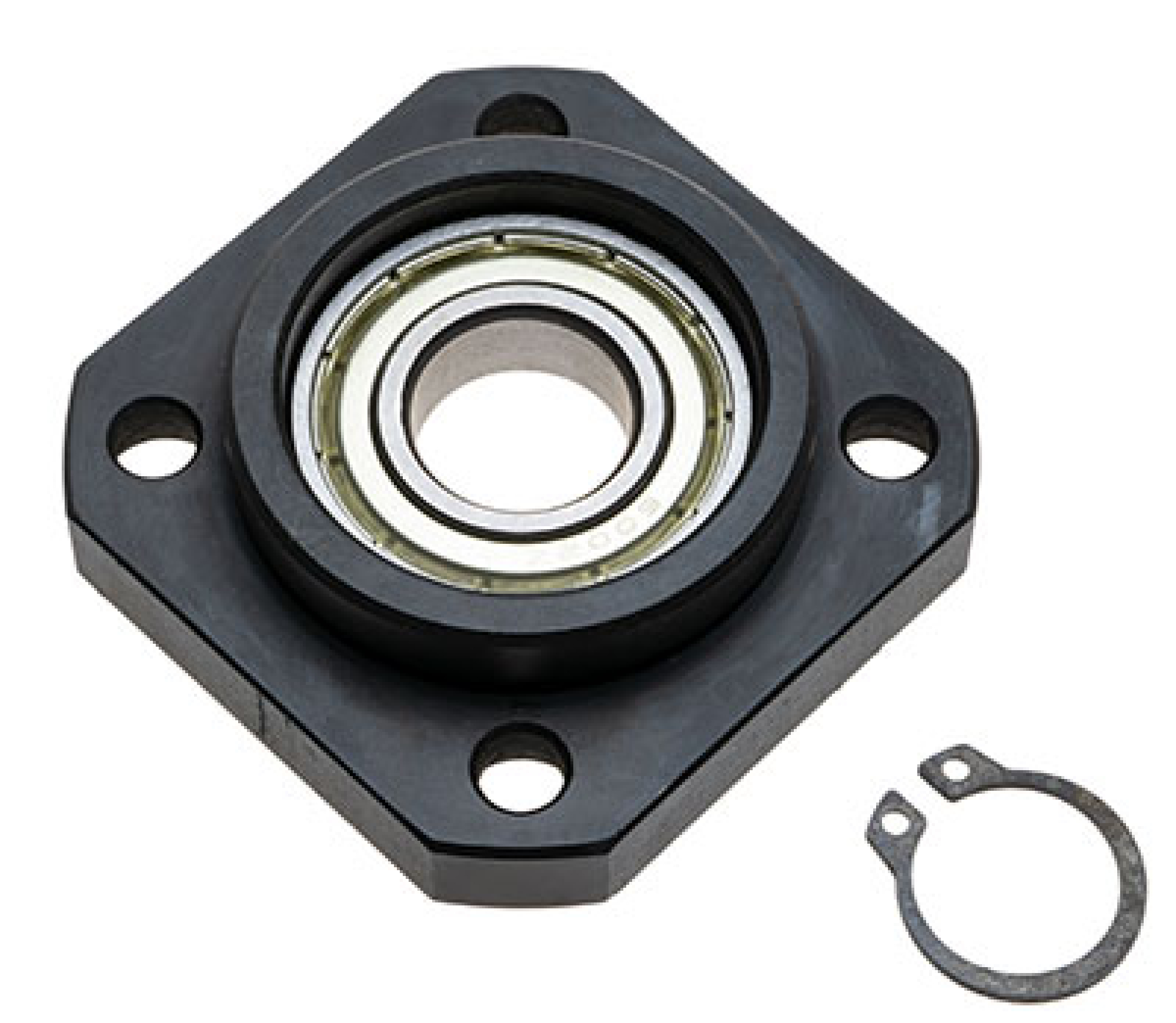

Scope of delivery
- Housing
- Ball bearing
- Shaft retaining ring
Datasheet Flange Bearing FF (german)
STEP FileManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
