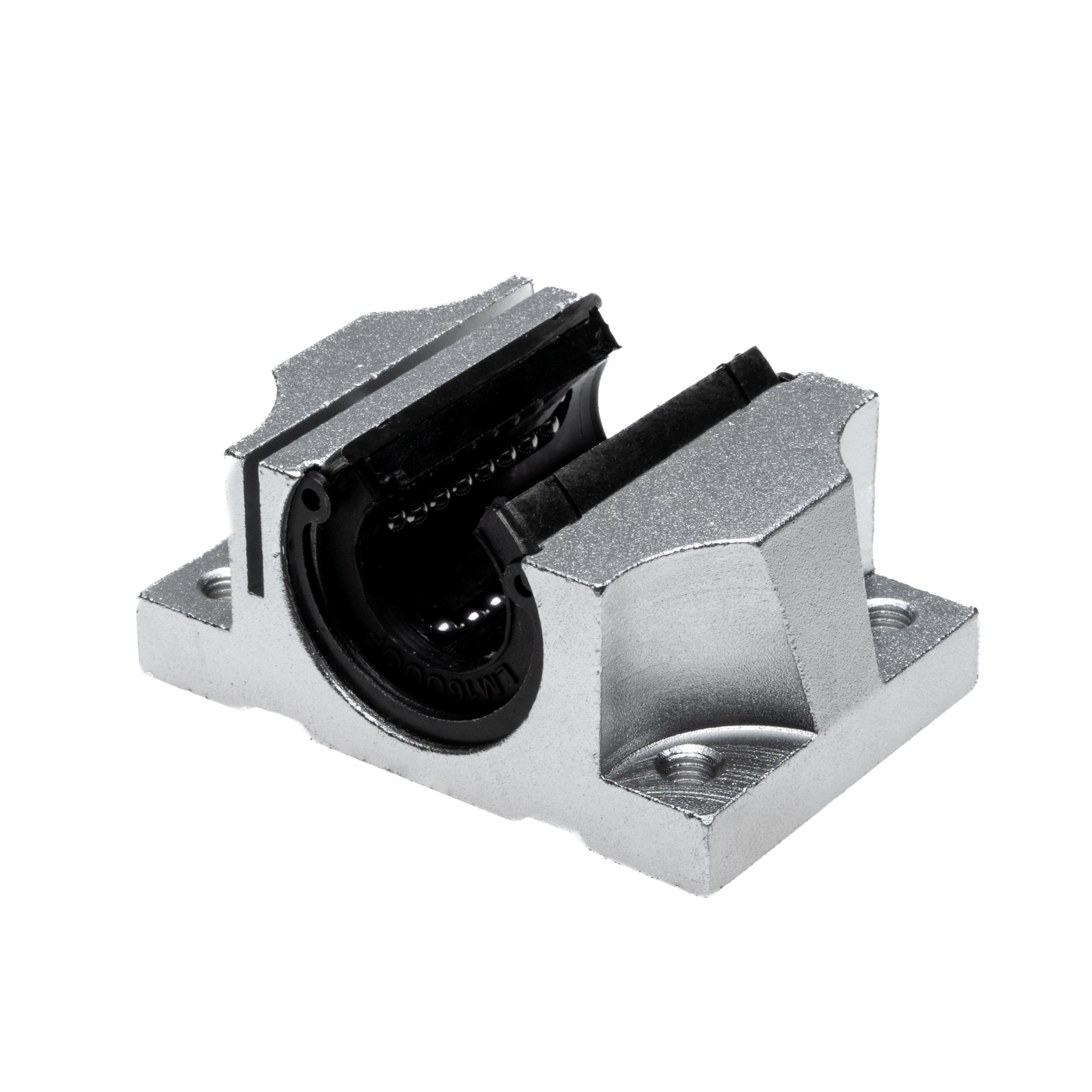

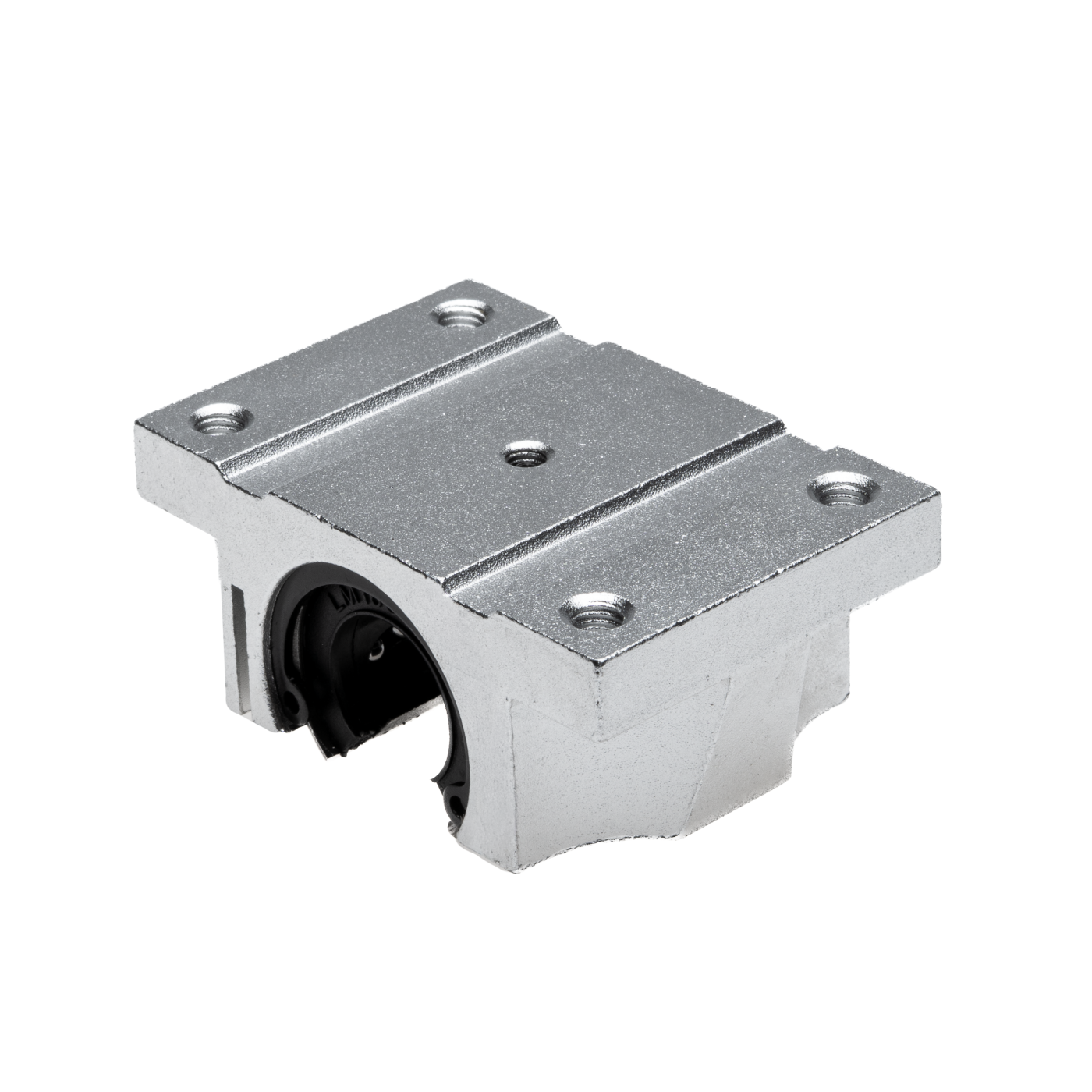

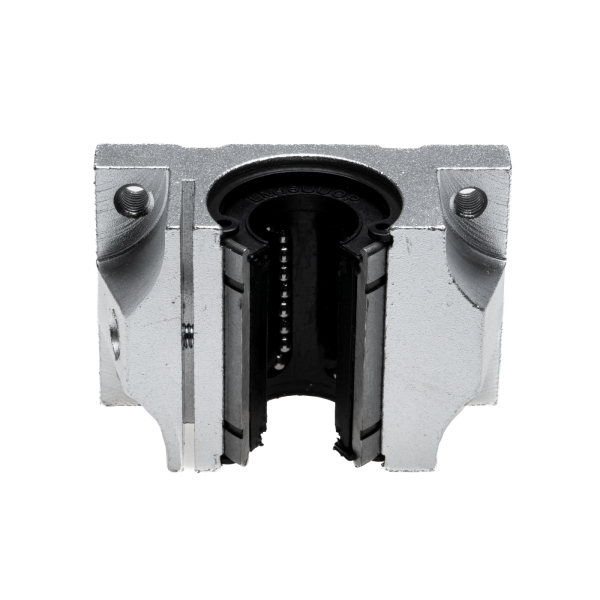

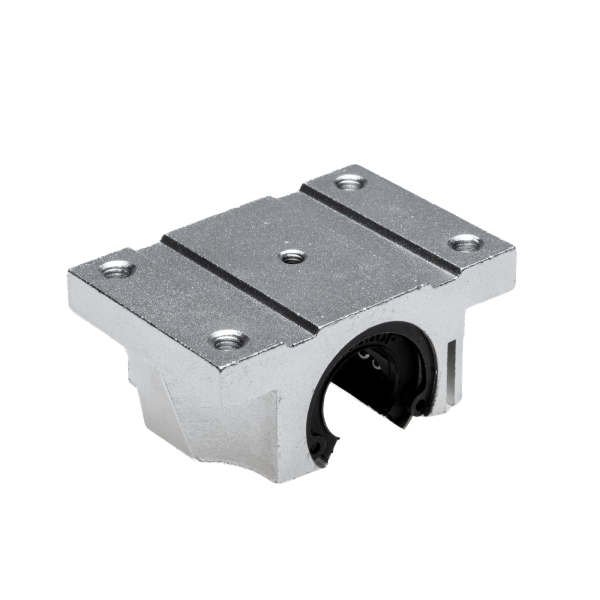

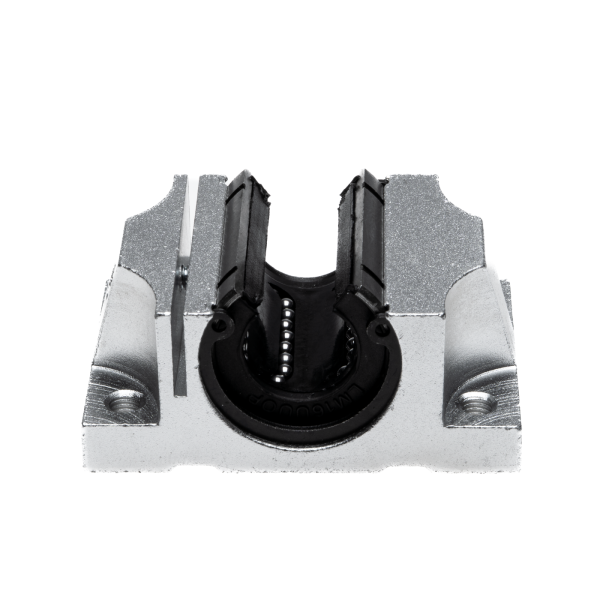

Flange Slide Block TBR20UU
NEW
Slide Block TBR20UU
Ball beared rail guide with connection flange, short, open design
For supported shaft guide rails
B = 54 mm
C = 37 mm
W = 68 mm
L = 51 mm
Datasheet TBR Flange CarriagesManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
