Product No.:
AL.ZAN.FL16.M5.01
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
0.09 kg per piece
29,93 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

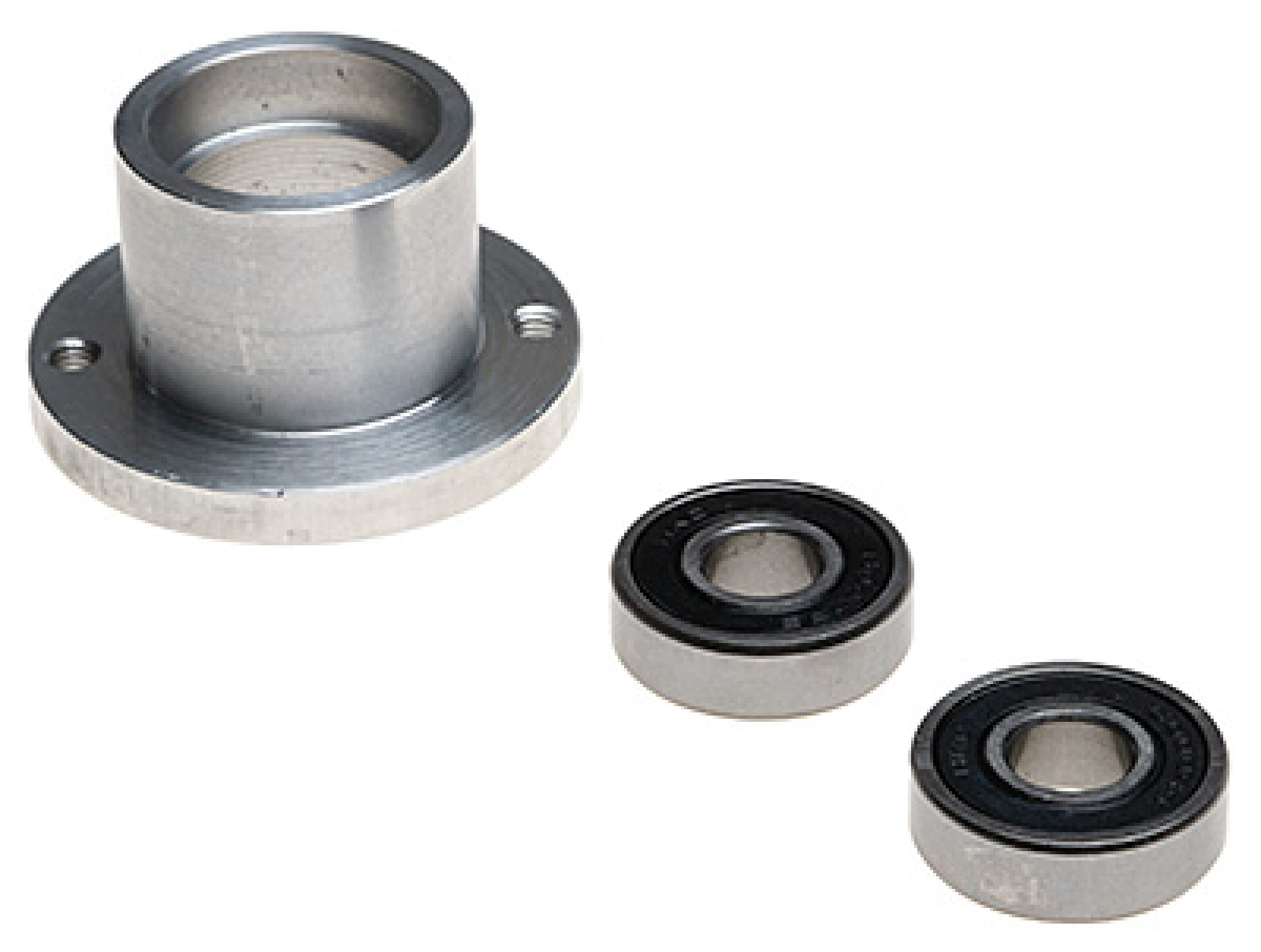

Fixed bearing housing with 2 ball bearings

for 16 mm spindle, with M5 threads


More about

This fixed housing is provided with M5 threads for an easy bolt on.
We also offer the same fixed housing with non threated holes.
Documentation

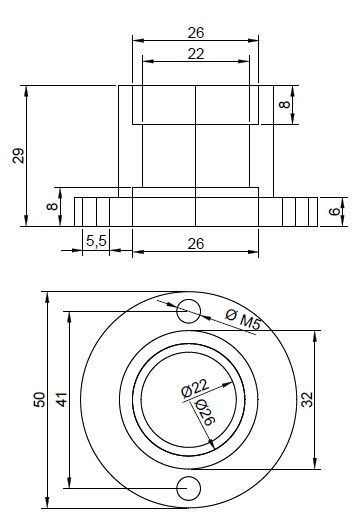

  Technical Drawing
