Finishing Mill coated Z6 Ø 8 mm ALU
Finishing cutter coated
for best surfaces

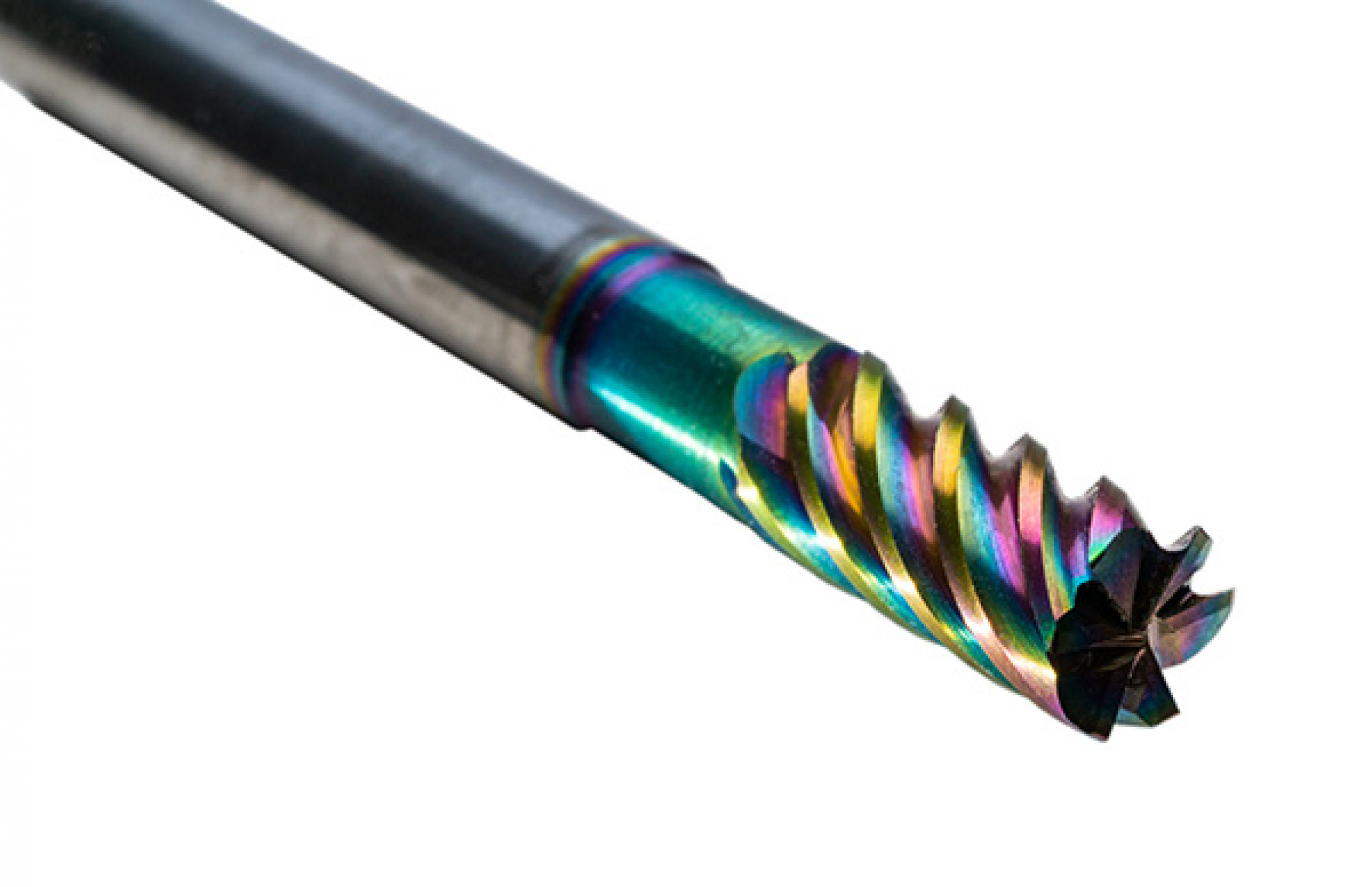

Four rounded cutting edges create the almost perfectly smooth surface in the last work step. Thanks to the relief-ground shaft, this is also possible in depth. The rainbow-colored coating is not only a feast for the eyes, but also ensures significantly increased wear resistance.

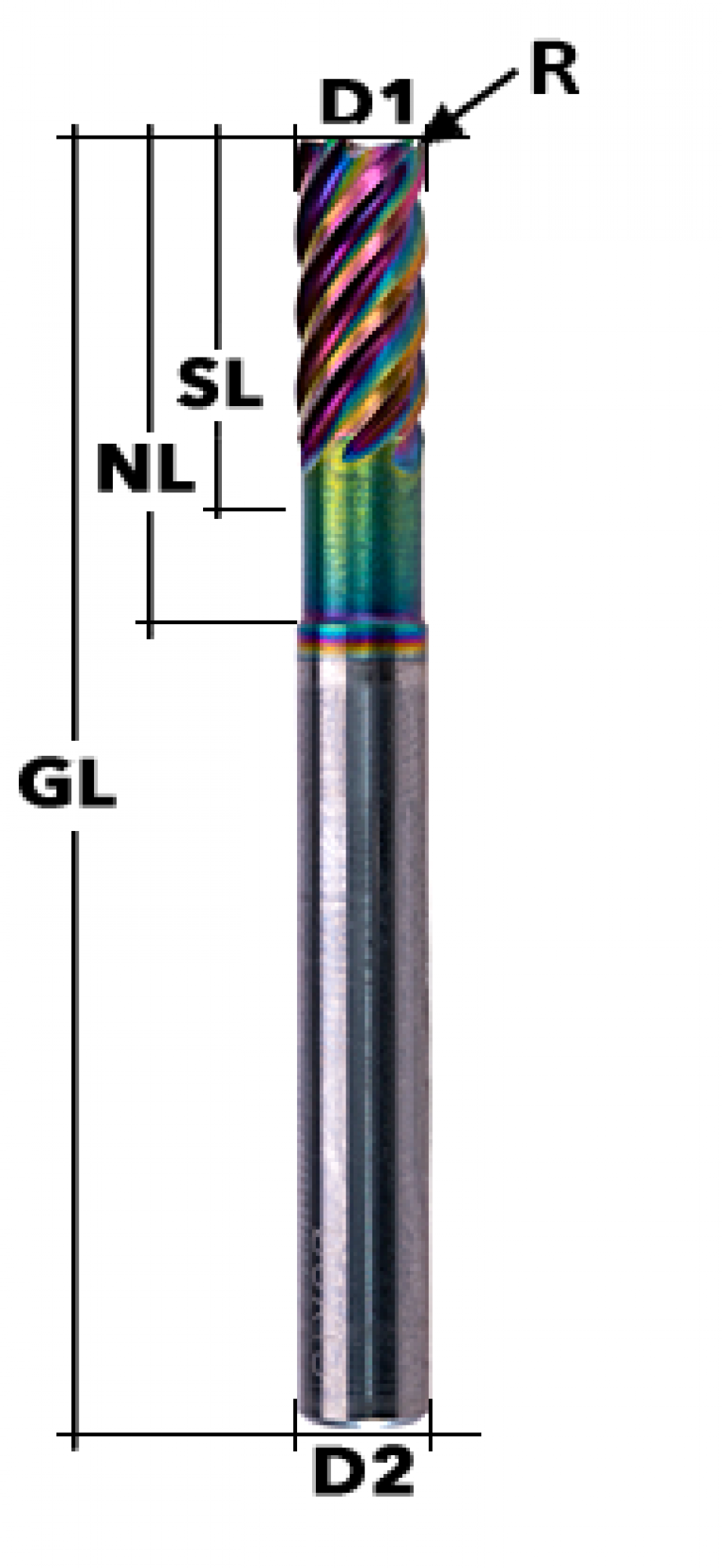

Technical Specifications:
- Solid Carbide-End Mill Ø 8 mm
- Upcut-spiral
- Industry Quality
- Z: 6-Flute
- D1: 8 mm
- D2 (Shaft): 8 mm
- SL: 19 mm
- NL: 27 mm
- GL: 63 mm
- R: 0.25
Applications:
- Special mill for aluminum
- Non-ferrous metals
