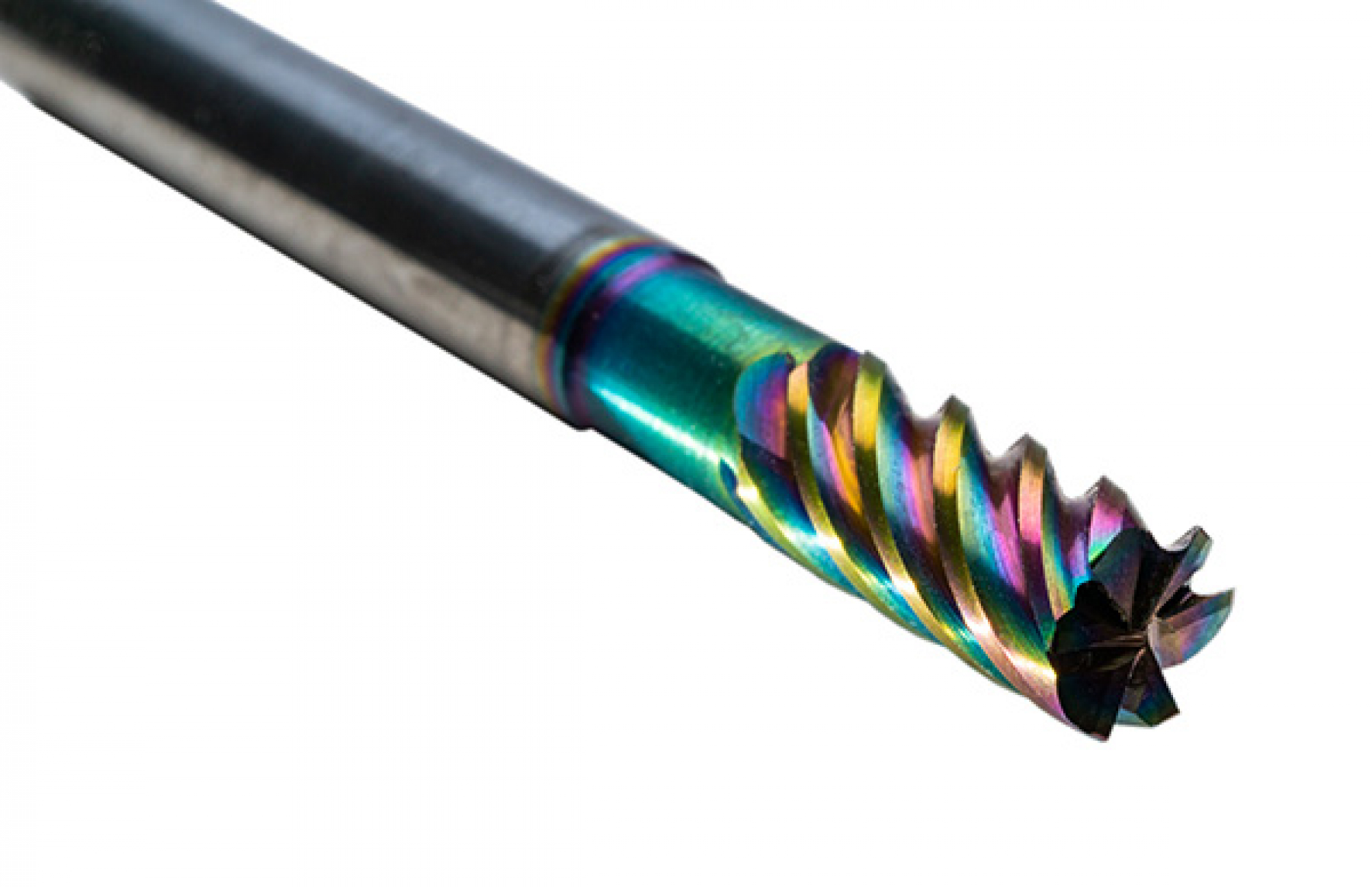

Finishing Mill coated Z4 Ø 3 mm ALU
Finishing cutter coated
for best surfaces
Four rounded cutting edges create the almost perfectly smooth surface in the last work step. Thanks to the relief-ground shaft, this is also possible in depth. The rainbow-colored coating is not only a feast for the eyes, but also ensures significantly increased wear resistance.

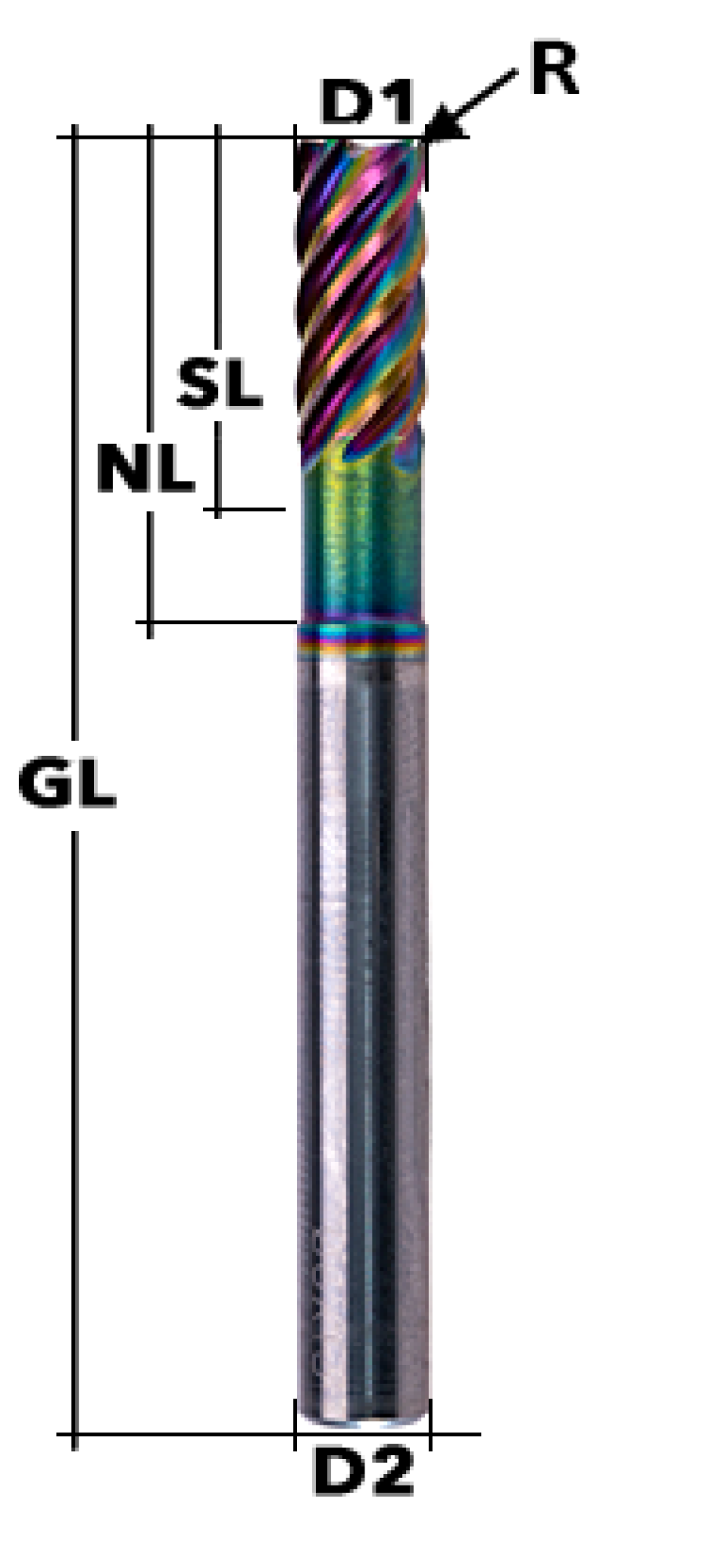

Technical Specifications:
- Solid Carbide-End Mill Ø 3 mm
- Upcut-spiral
- Industry Quality
- Z: 4-Flute
- D1: 3 mm
- D2 (Shaft): 6 mm
- SL: 8 mm
- NL: 18 mm
- GL: 57 mm
- R: 0.13
Applications:
- Special mill for aluminum
- Non-ferrous metals
