Estlcam socket adapter "XL"

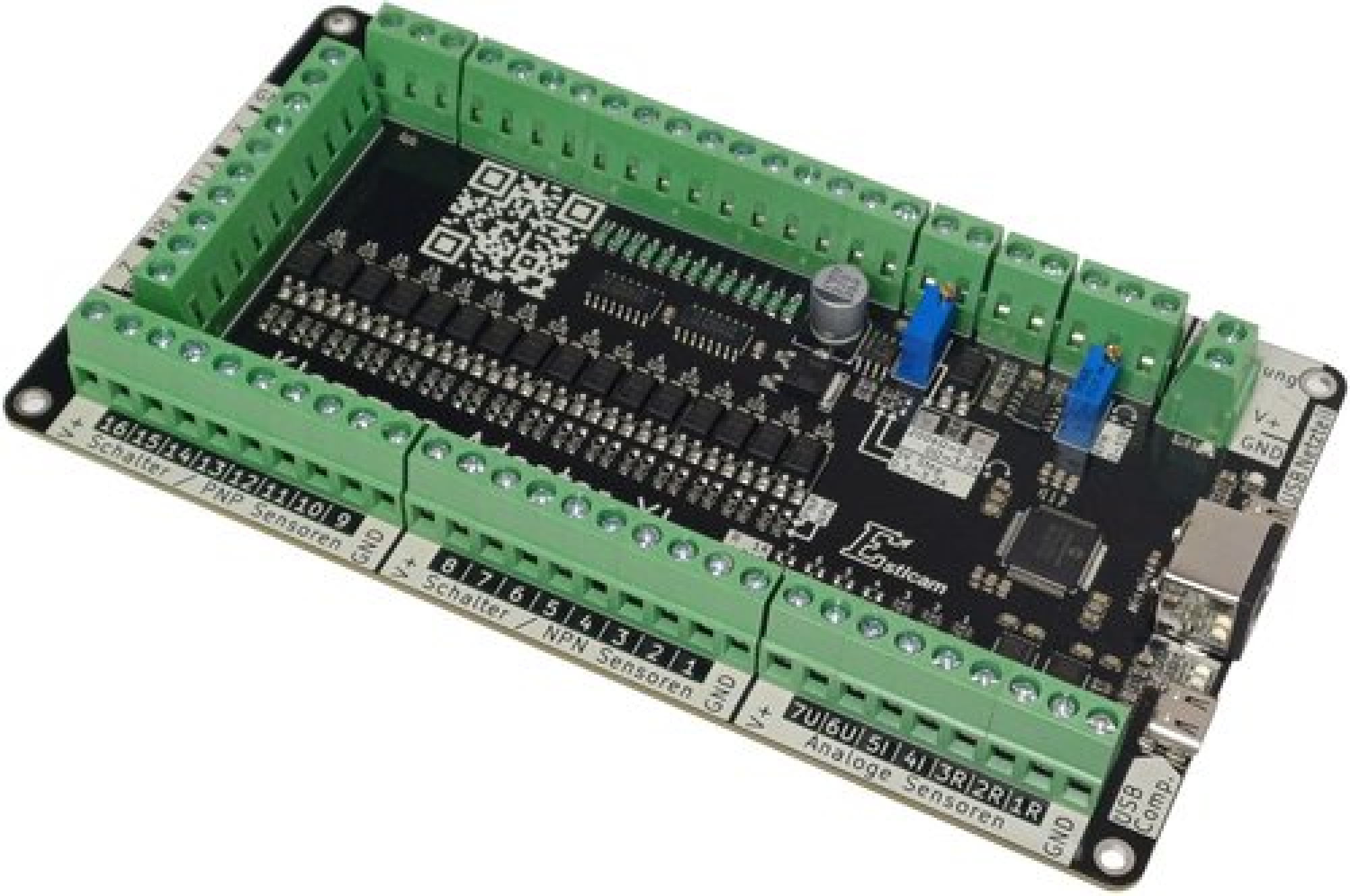

Estlcam terminal adapter "XL"

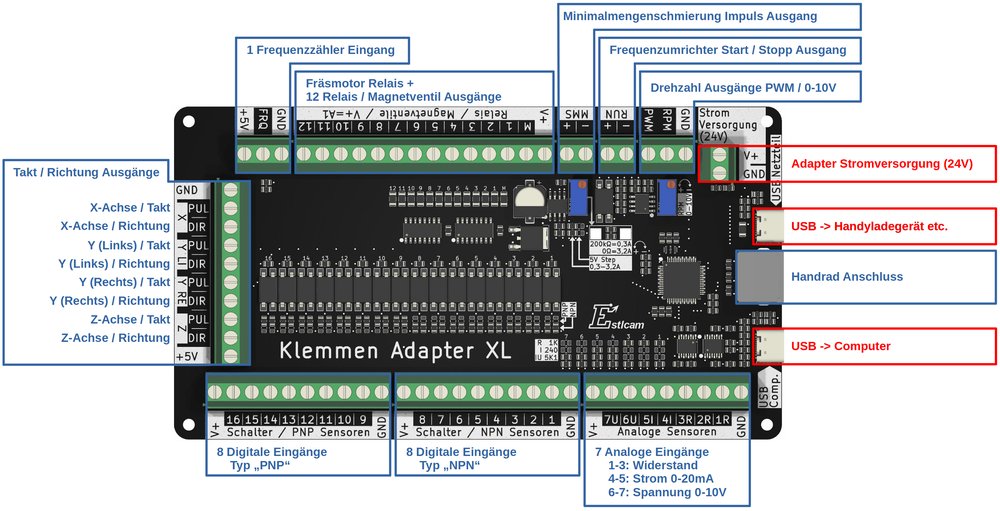

- Estlcam USB control with screw connections:
- Attention: only compatible with Estlcam version 12.100 or higher!
- Older versions require the terminal adapter "Classic"
- For power amplifiers and motors with 5V clock / direction (Step / Dir) control...
- e.g. Leadshine power amplifiers / JMC servos...
- 2 Y power amplifiers (left / right) with automatic alignment possible...
- 16 inputs for switches, proximity sensors etc...
- 12 outputs for relays and solenoid valves...
- 7 analog inputs e.g. for temperature sensors...
- 1 frequency counter e.g. for flow meters...
- 5V PWM and 0-10V analog output for speed control...
- Pulse output with adjustable current limit e.g. for controlling injection valves for minimum quantity lubrication...
- Galvanically isolated USB-C connection:
- Protection of the computer against wiring errors and defects...
- Attention: 2 USB-C cables required for connection!
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
