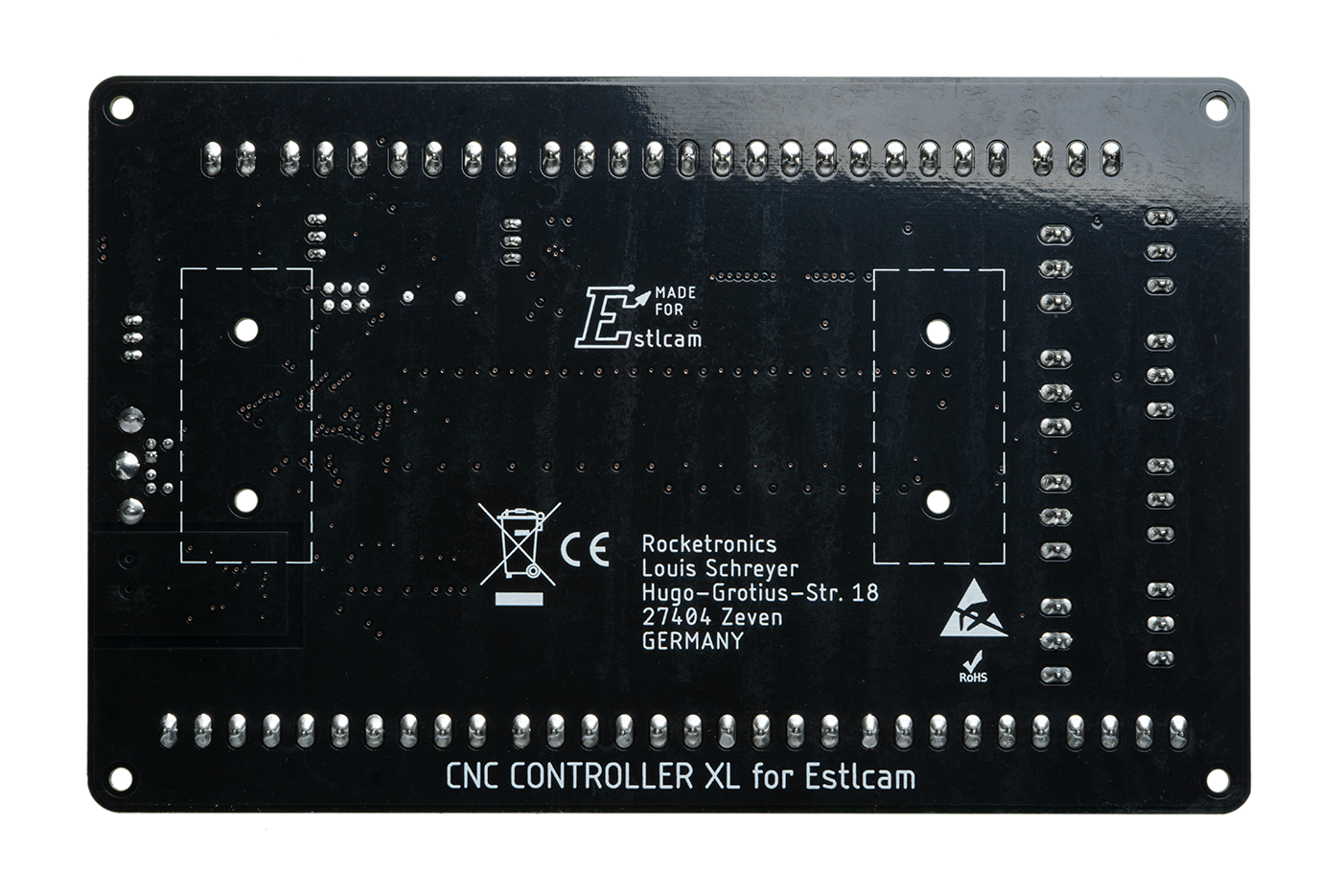

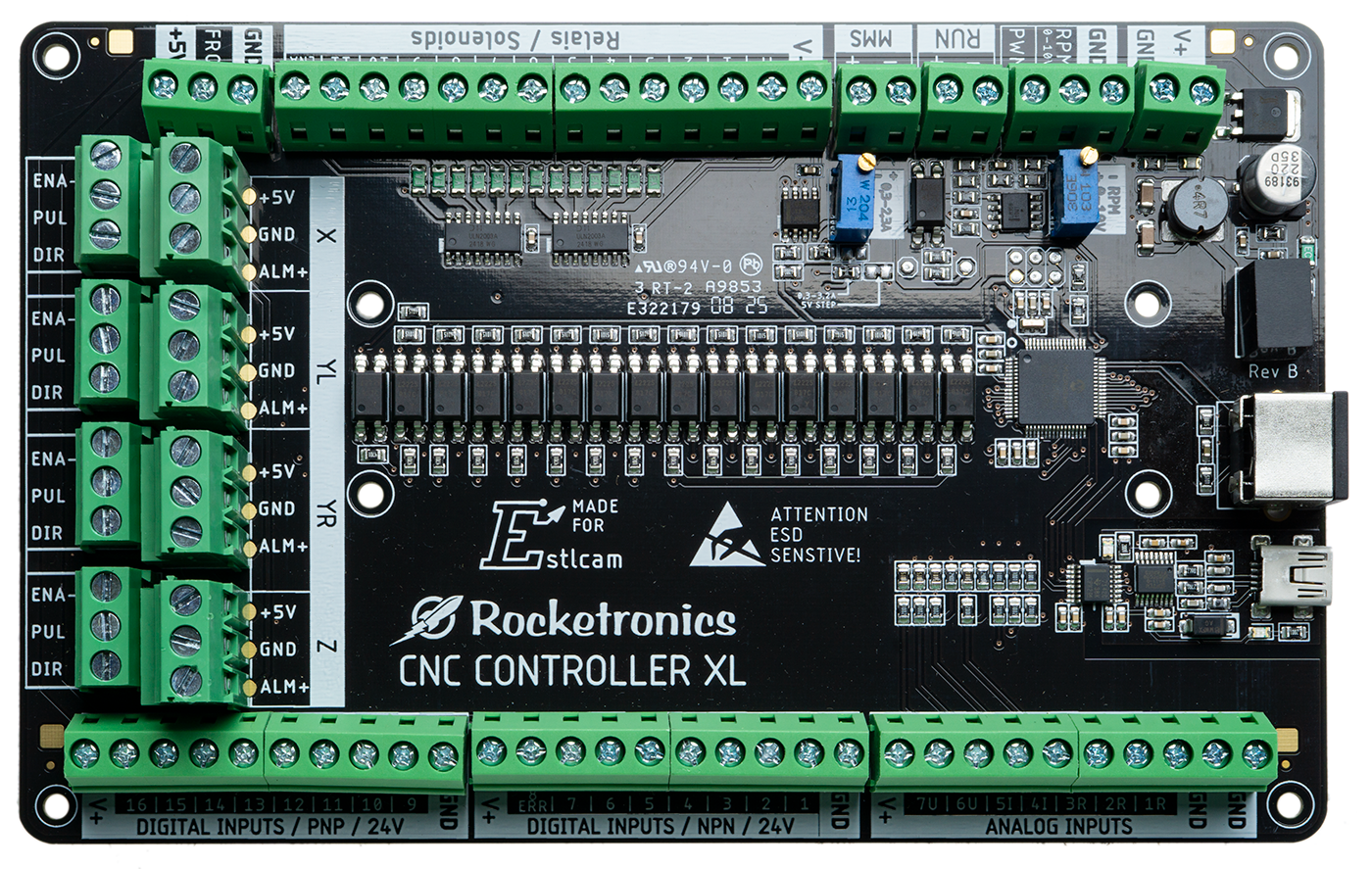

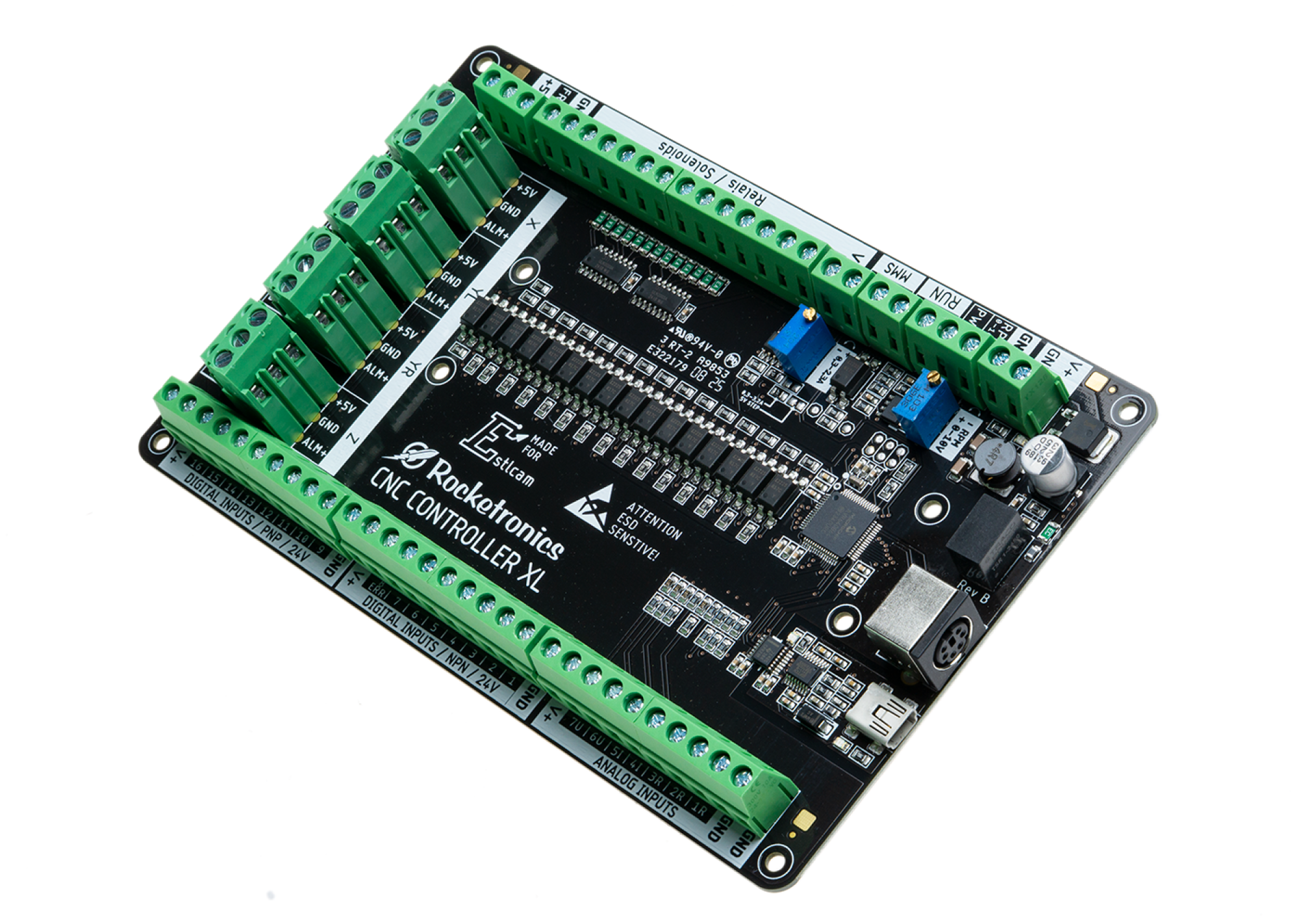

Estlcam Terminal Adapter XL
Estlcam USB Controller with Screw Terminals
100% compatible, improved, and expanded version of the original "Terminal Adapter XL" by Christian Knüll.
- With integrated power supply for the logic section: The adapter requires only a 24V supply voltage and no separate USB power supply.
- The 5V voltage range is protected by a self-resetting fuse, preventing damage from accidental short circuits.
- Dual-level terminals for up to four motors, with terminals for ALARM and ENABLE signals.
Complete CNC control for milling machines; no additional Arduino is required. Operates only with Estlcam,
not with Mach 3 or Mach 4.
Required accessories:
Windows PC (drivers in the "Documentation" tab)
Properly shielded USB cable
24V / 1A power supply
User Manual (german)
