End Mill Z3 Ø 5 mm Foam
End Mill Z3 Ø 5 mm Foam
Due to the steep spiral of 10°, the tool performs only small tensile forces up to the workpiece and thus prevents fraying of the cut edge. Unlike straight-fluted tools, the chips are effectively transported out of the milling channel and thus avoids clogging of the tool.

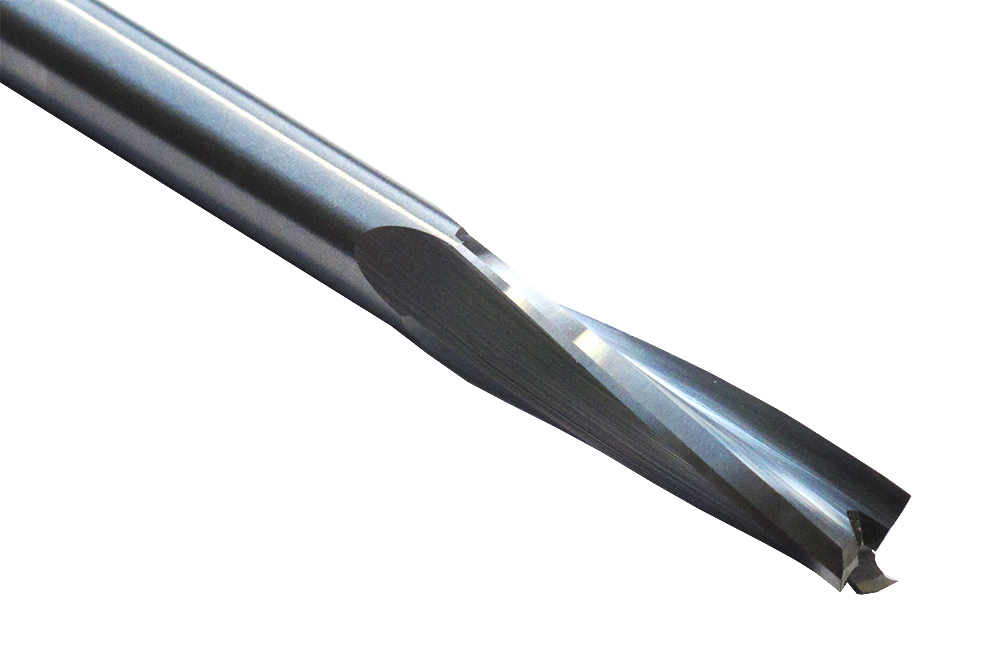

- Solid Carbide-End Mill Ø 5 mm
- Upcut-spiral
- Industry Quality

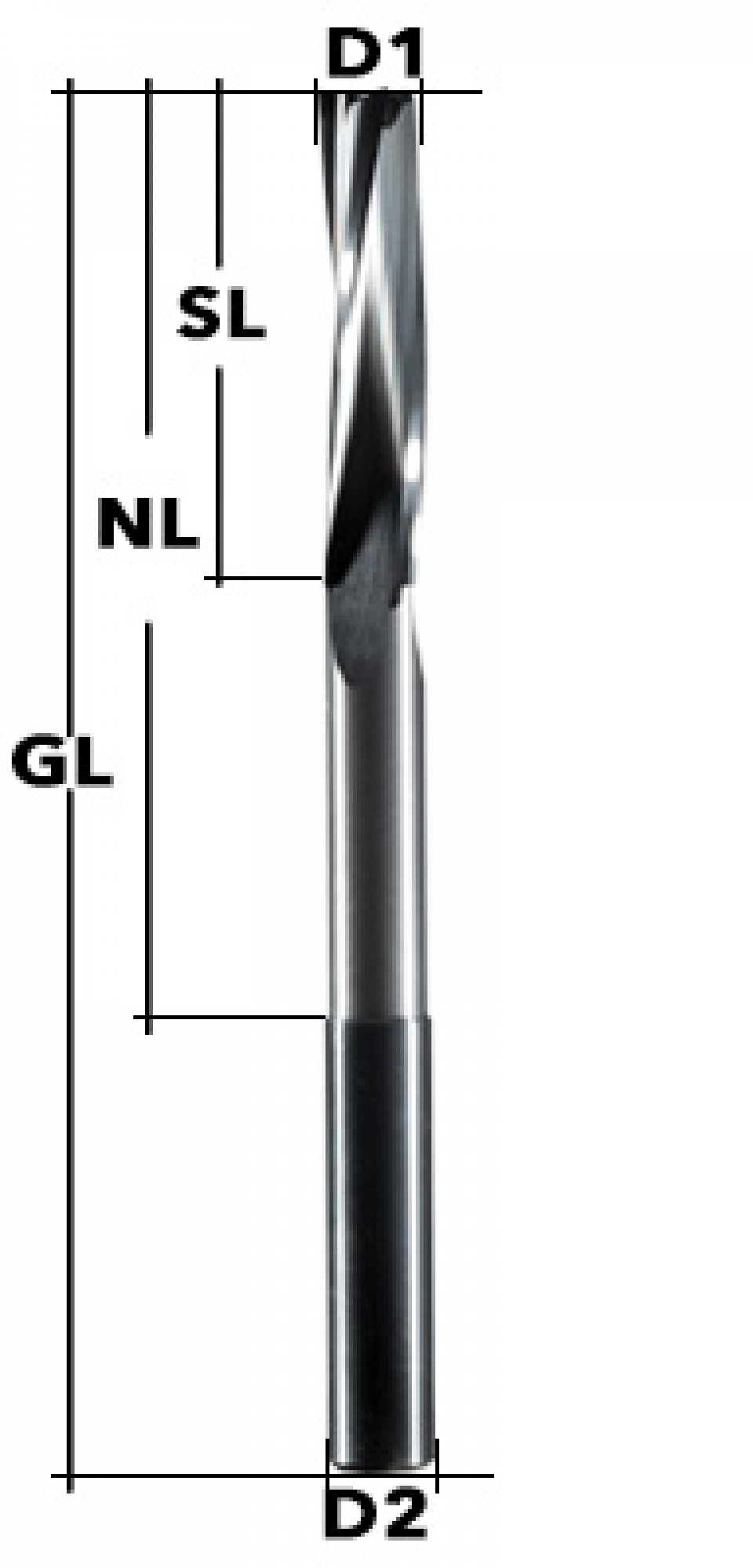

- Z: 3 Flute
- D2 (Shank): 5 mm
- SL (spiral lenght): 22 mm
- NL: 50 mm
- GL (overall length): 75 mm
- behind cut Ø: 4.5 mm
Applications:
- Foam
- PU
- PUR
- PE
