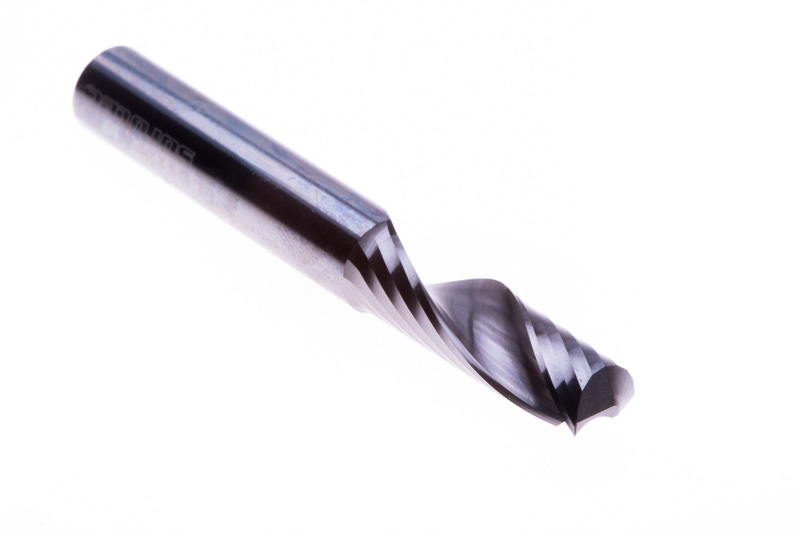

End Mill Z1 Ø 5 mm PROALU
End Mill Z1 Ø 5 mm PROALU
This mill has a very sharp,exposed cutting edge with an extreme grinding.The large flute enables a very good chip clearance. So the risk is low that the tool may clog during the milling process, also in softer sorts of aluminium.
Optimal for professional working.
Technical Specifications:
- Solid Carbide-End Mill Ø 5 mm
- Upcut-spiral
- Industry Quality
- Z: 1-Flute

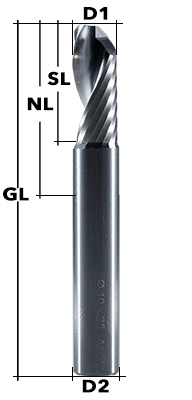

- D1: 5 mm
- D2 (Shank): 5 mm
- GL: 50 mm
- NL: 16 mm
Applications:
- Spezial mill for Aluminum
- Non-ferrous metals
- Acrylics
- Wood
