End Mill Double-Flute ALU Ø 3 mm long
Technical Specifications:
- Solid Carbide-End Mill Ø 3 mm
- Double-Flute
- Flat Bottom
- Upcut-spiral

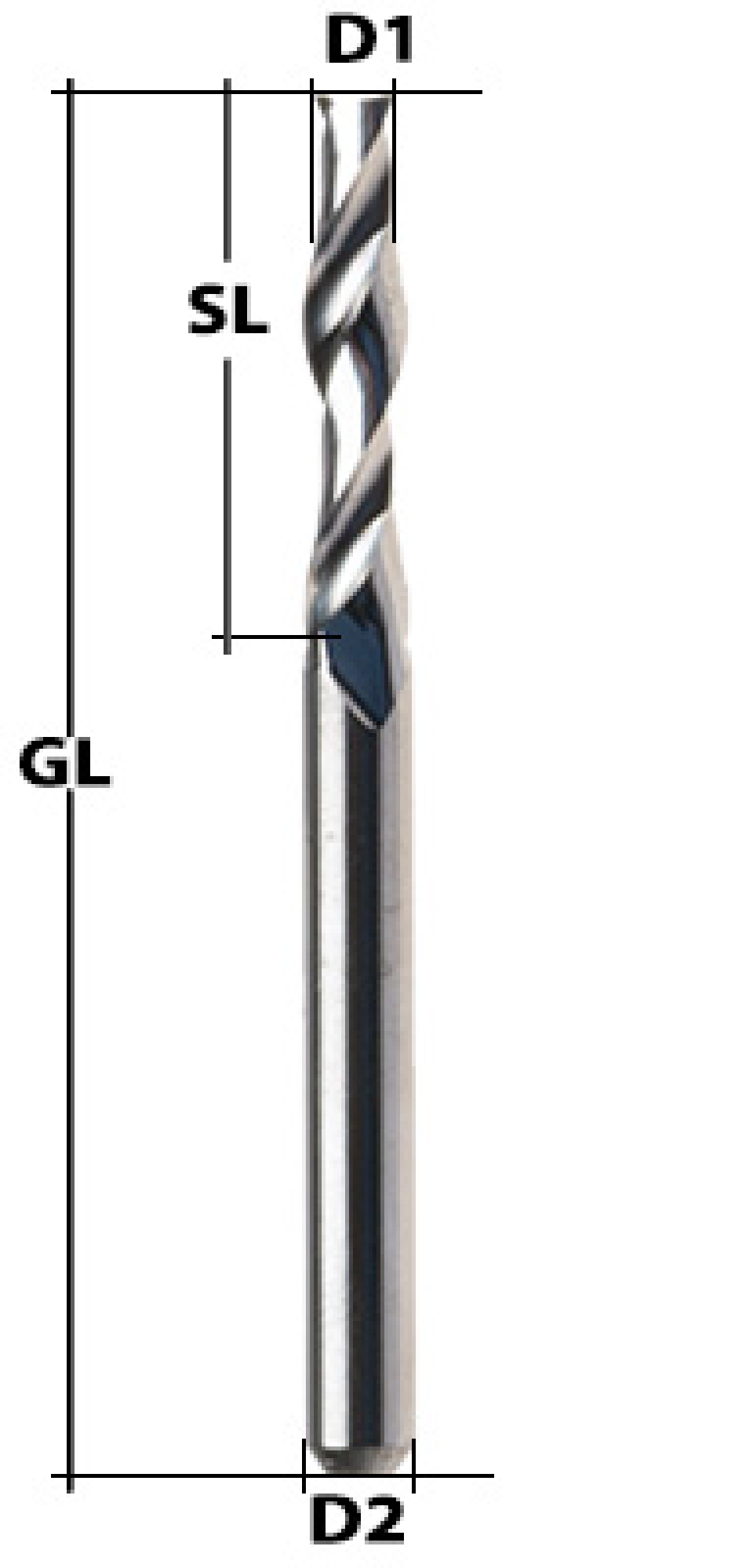

- D2 (Shank): 3.175 mm (1/8")
- SL (Spiral length): 15 mm
- NL (Usable Spiral length) = 0.7 x Spiral length
- GL (Overall length): 38 mm
Characteristics
- Industrial Quality
- Low wear through Flat Bottom
- Clean surfaces
Applications
- Specific geometry for Aluminum
- Plastics
Notes:
- Further diameters and spiral lengths on request.
- Left spiral and/or left cutting mills on request.
