End Mill Double-Flute (Flat) Ø 2 mm long
Technical Specifications:
- Solid Carbide-End Mill Ø 2 mm
- Double-Flute
- Flat Bottom
- Upcut-spiral

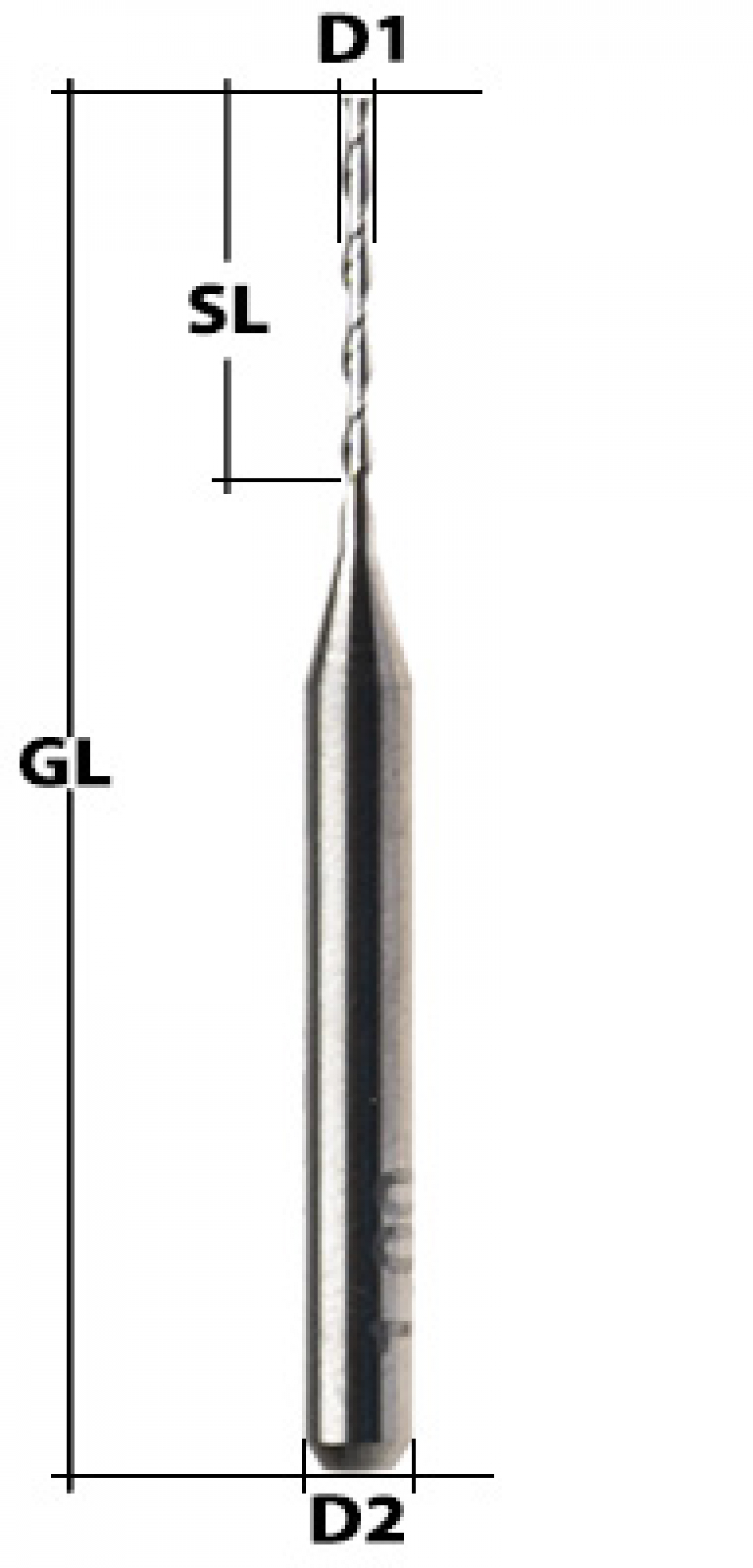

- D2 (Shank): 3.175 mm (1/8")
- SL (Spiral length): 10 mm
- NL (Usable Spiral length) = 0.85 x Spiral length
- GL (Overall length): 38 mm
Characteristics
- Industrial Quality
- Low wear through Flat Bottom
- Flat Bottom for very clean surfaces in pockets
Applications
- universally applicable
- Aluminium
- Plastics
- Wood
Notes:
- Further diameters and spiral lengths on request.
- Left spiral and/or left cutting mills on request.
