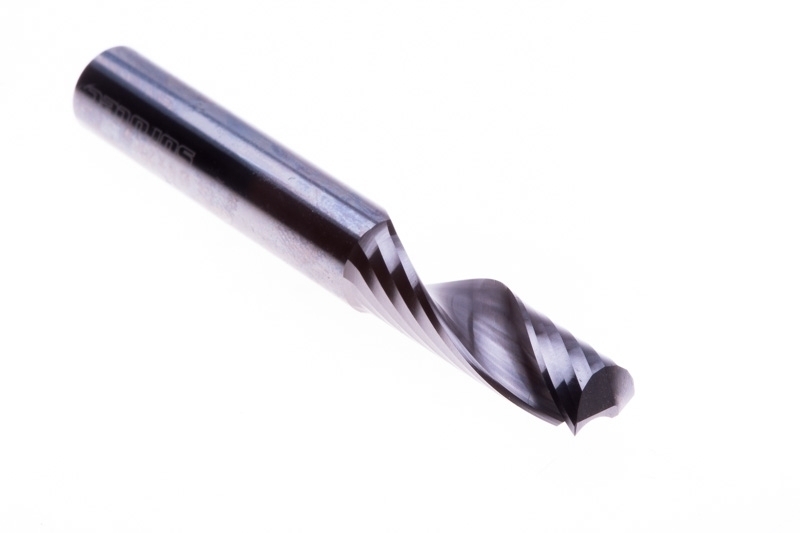

End Mill Z1 Ø 8 mm ACRYL
End Mill Z1 Ø 8 mm ACRYL
This mill has a very sharp,exposed cutting edge with an extreme grinding.The large polished flute enables a very good chip clearance. So the risk is low that the tool may clog during the milling process, also in Acrylics & Alu.
Optimal for professional working.
Technical Specifications:
- Solid Carbide-End Mill Ø 8 mm
- Upcut-spiral
- Industry Quality
- Z: 1-Flute
- D1: 8 mm
- D2 (Shank): 8 mm
- GL: 90 mm
- SL: 26 mm
- NL: 55 mm
Applications:
- Spezial mill for Aluminum & Plastic
- Non-ferrous metals
- Acrylics
- Wood
