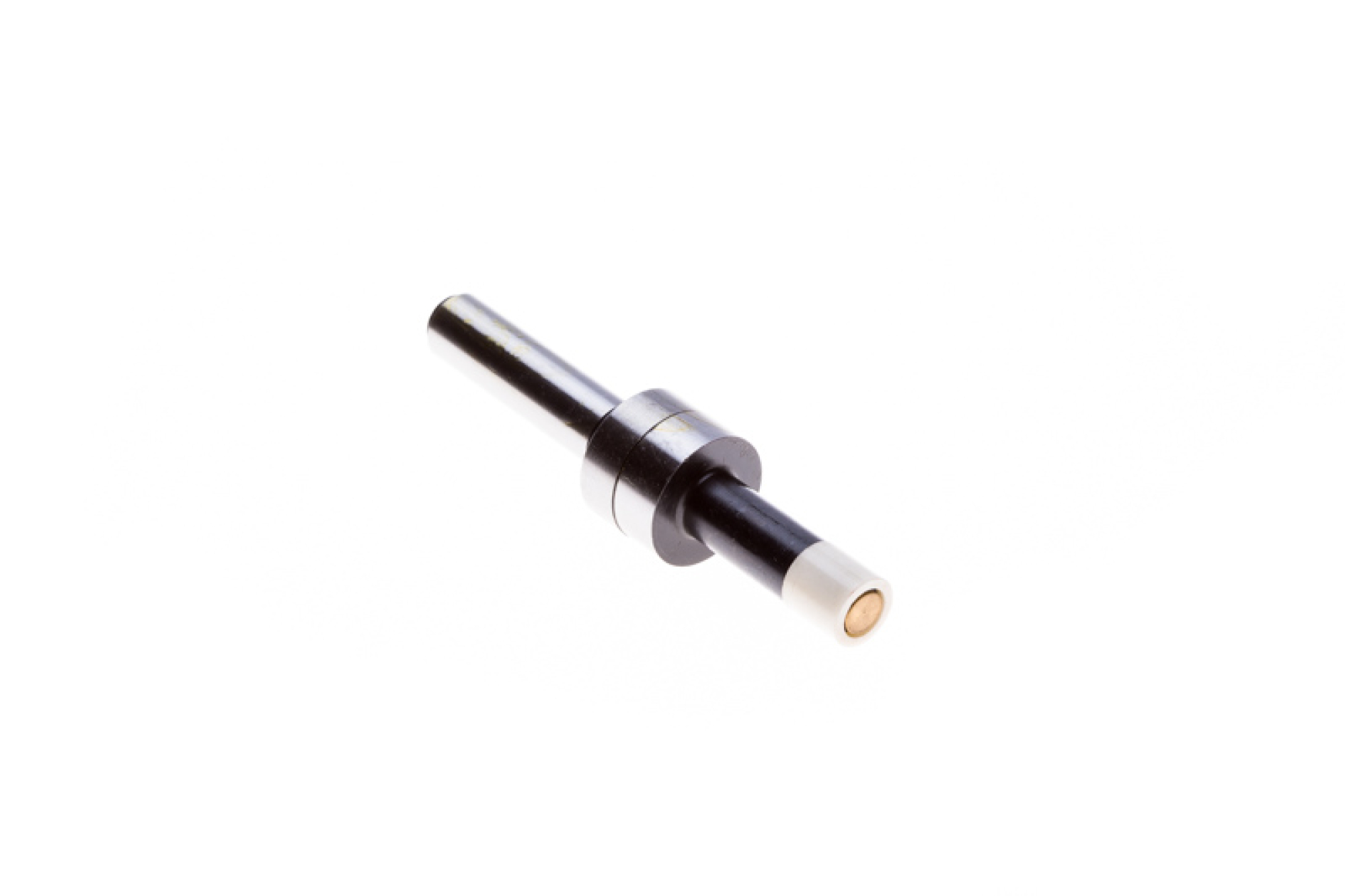

Edge Finder with ceramic probe 10 / 10 mm

Product No.:
WGS.KT0004
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
0.1 kg per piece
37,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

Edge Finder with ceramic probe 10 / 10 mm

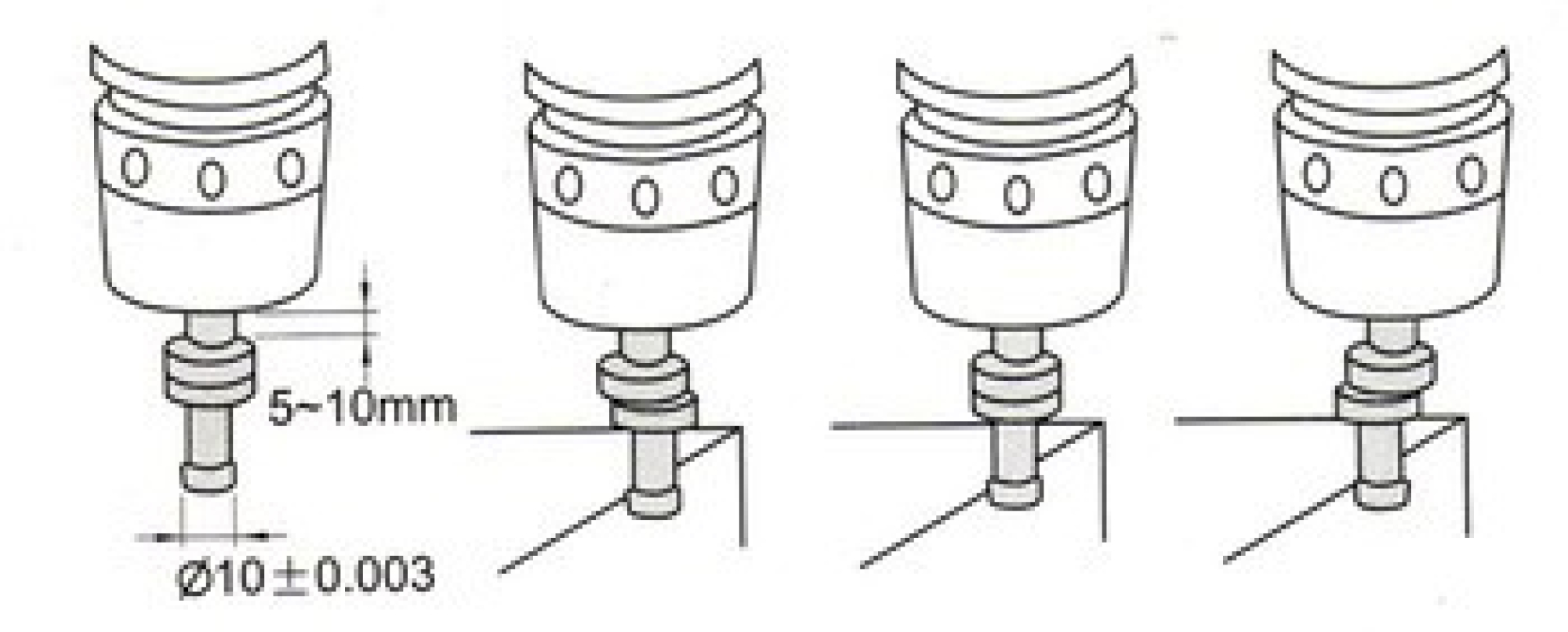

The Edge Finder is used for precise determination of edges of the workpiece and hole centers etc. during milling. With the help of the ceramic probe static charges are avoided.

Specifications:

  • Wear protection, antistatic
  • With ceramic head
  • Rotating spindle
  • Length: 86 mm
  • Concentricity: ±0.0025 mm
  • Speed range of 600 ... 950 U/min
  • Shaft length: 38 mm
  • Feel length: 30 mm
  • Clamping shank diameter: 10 mm
  • Sensor Diameter: 10 mm
  • Probe hardness: HRC90
  • Alignment accuracy: 0.005 mm

Includes:

  • Edge finder
  • Plastic storage box
