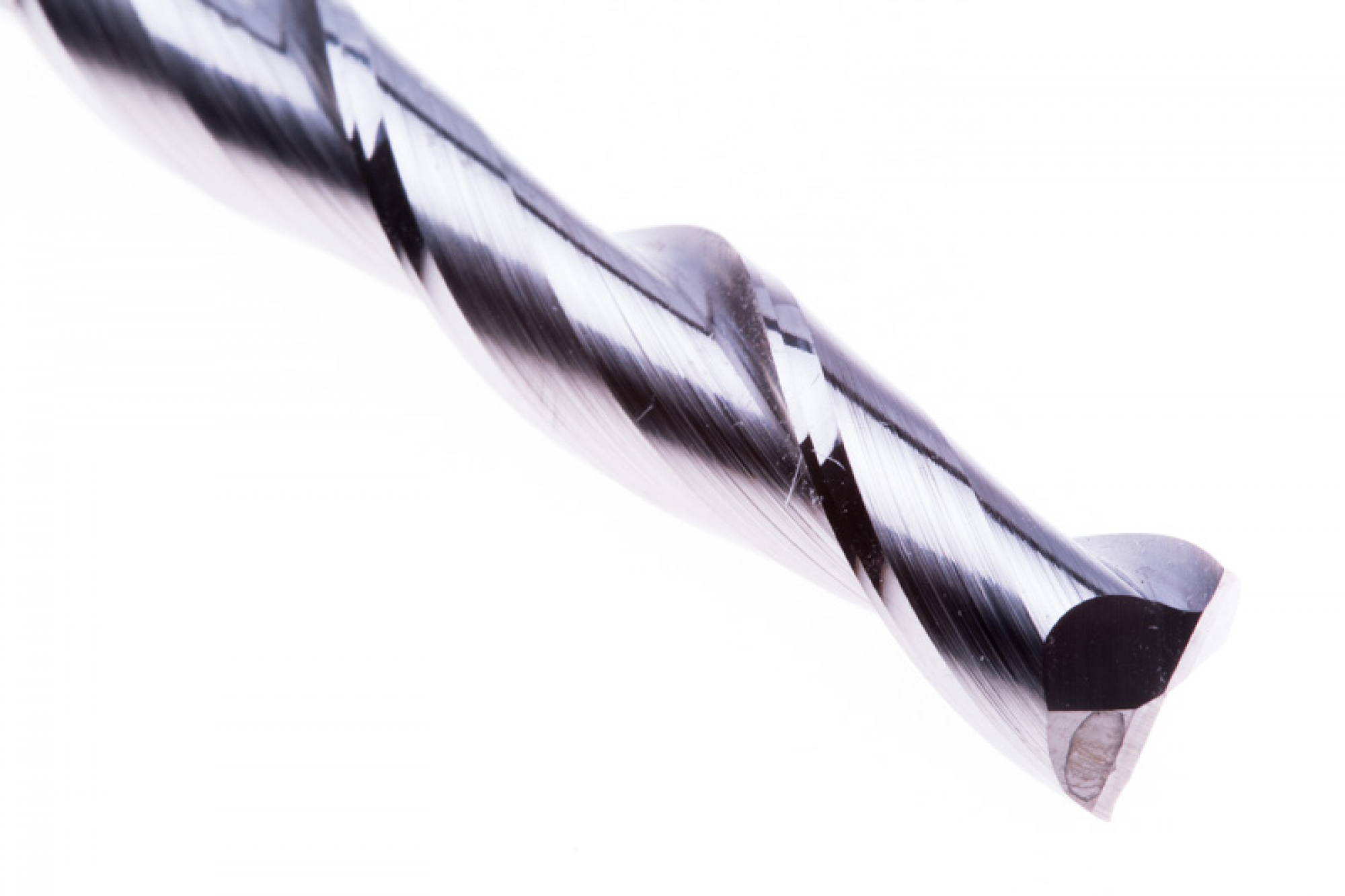

END Mill Z2 30° Ø 12 mm UNI XL
END Mill Z2 30° Ø 12 mm UNI XL
Technical Specifications:
- Solid Carbide-End Mill Ø 12 mm
- Center Cut (Diving possible)
- Upcut-spiral
- Industry Quality
- 30° Spiral
- Z: 2-Flute
- D2 (Shank): 12 mm
- SL (Spiral length): 76 mm
- GL (Overall length): 152 mm
Applications:
- Universal usability
- Metal
- Aluminum
- Non-ferrous metals
- Acrylics
- Wood
Notes:
- Further diameters on request.
- 3 and 4 Flute Mills on request
- Coating on request
