Droplet nozzle TDF

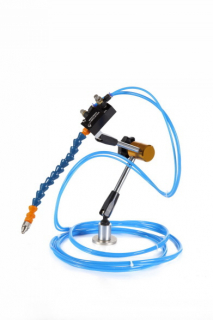

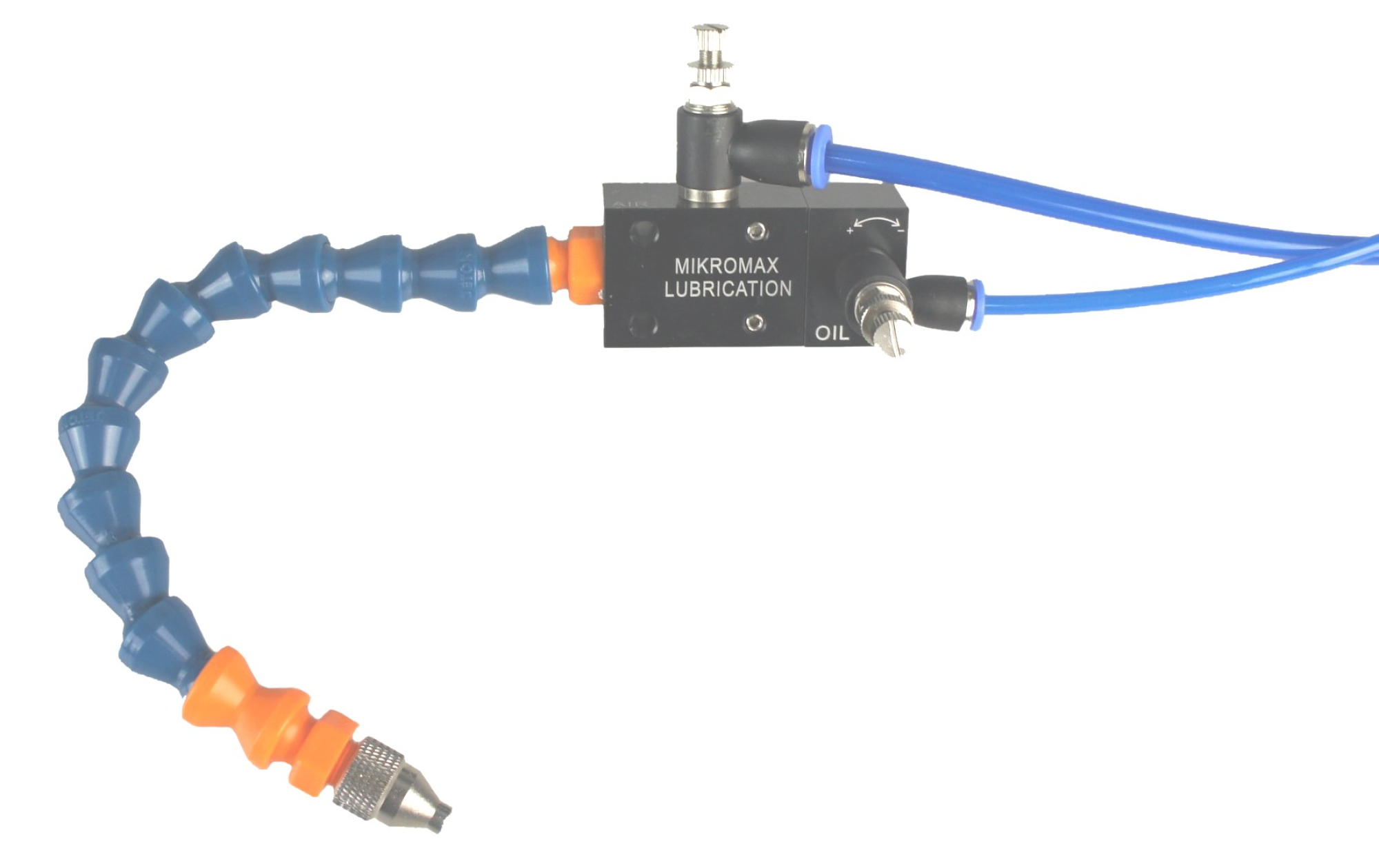

With the TDF droplet nozzle, the user can equip existing MDM and MDE systems with a second nozzle. With a V distributor, the air and coolant outlets on the device are expanded by a second outlet. A second nozzle can then be operated at this further outlet. These nozzles are also used on our MDE-P systems.
The supply hoses of the TDF nozzle have a length of approx. 3 meters. These hoses can also be routed through a cable chain.
6 mm outer Ø for air
4 mm outer Ø for coolant
The following is also required for connection as an additional nozzle:
One each
Y-connector for 4 mm hose (PNE.SVY4.4M)
Y-connector for 6 mm hose (PNE.SVY6.6M)
or one each
T-connector for 4 mm hose (PNE.SVT4.4M)
T-connector for 6 mm hose (PNE.SVT6.6M)
