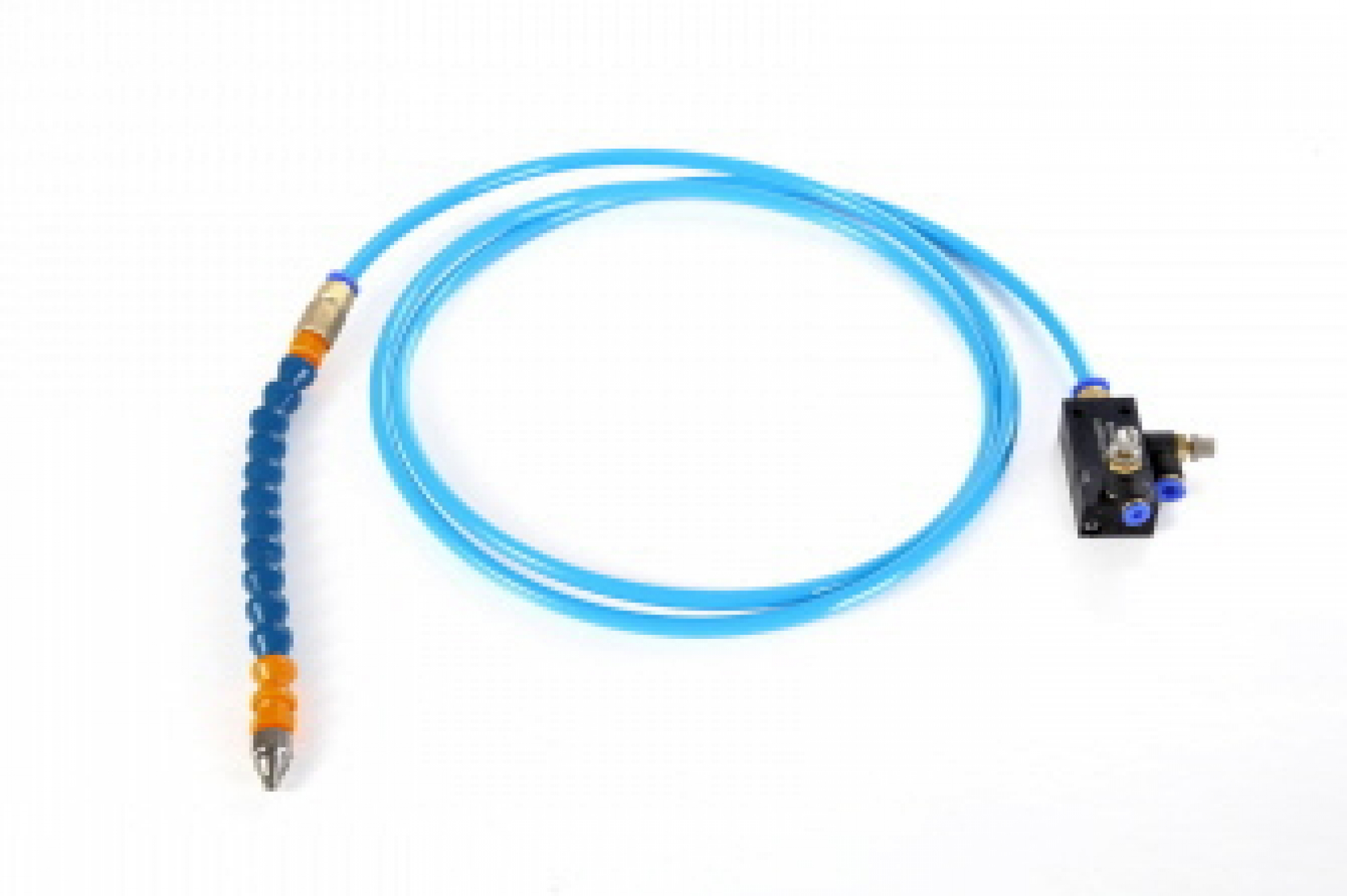

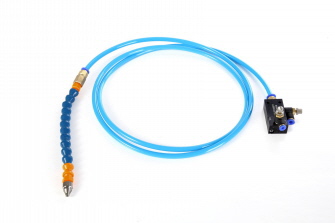

Droplet nozzle TDF-L
Droplet nozzle TDF-L
With the TDF-L, the nozzle is separated from the mixing head. It is used where the storage container can be attached close to the tool. The advantage: The mixing head is not in the chip area.The fixation with magnetic stands enables highly flexible handling.
These nozzles are also used on our MDE-P systems.
Connection with pneumatic hose:
6 mm outer Ø for air
4 mm outer Ø for coolant
The following is also required for connection as an additional nozzle:
One each
Y-connector for 4 mm hose (PNE.SVY4.4M)
Y-connector for 6 mm hose (PNE.SVY6.6M)
or one each
T-connector for 4 mm hose (PNE.SVT4.4M)
T-connector for 6 mm hose (PNE.SVT6.6M)
