Double nozzle DDF for droplet lubricating

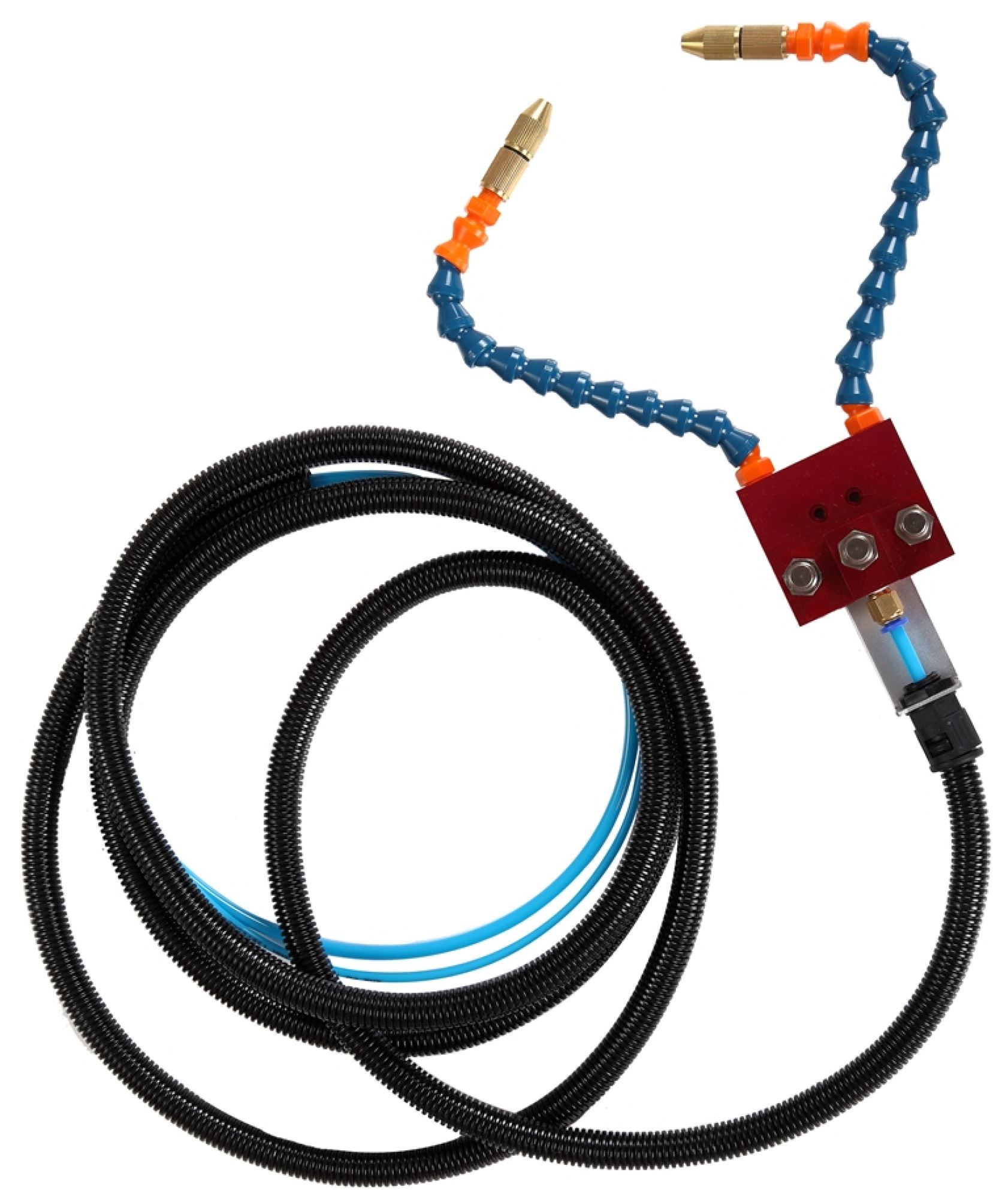

Double nozzle DDF
The double nozzle DDF is used wherever intensive lubrication of the tool from two sides is necessary. Thanks to the flexible hoses, the nozzles can be arranged so that they lubricate the tool by 180 degrees. The air and coolant quantities can be set individually for each nozzle on the mixing head via needle valves.Connection with pneumatic hose:
6 mm outer Ø for air
4 mm outer Ø for coolant
The following is also required for connection as an additional nozzle:
One each
Y-connector for 4 mm hose (PNE.SVY4.4M)
Y-connector for 6 mm hose (PNE.SVY6.6M)
or one each
T-connector for 4 mm hose (PNE.SVT4.4M)
T-connector for 6 mm hose (PNE.SVT6.6M)
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
