Das Endchen parts set configurator
The well-known Endchen by Sebastian End now at Sorotec!
(Illustrations do not show real existing machines)
- Parts of the standard kit from a single source!
- Upgrade kits for the standard
- Matching controls and accessories from our webshop!
All information about the Endchen

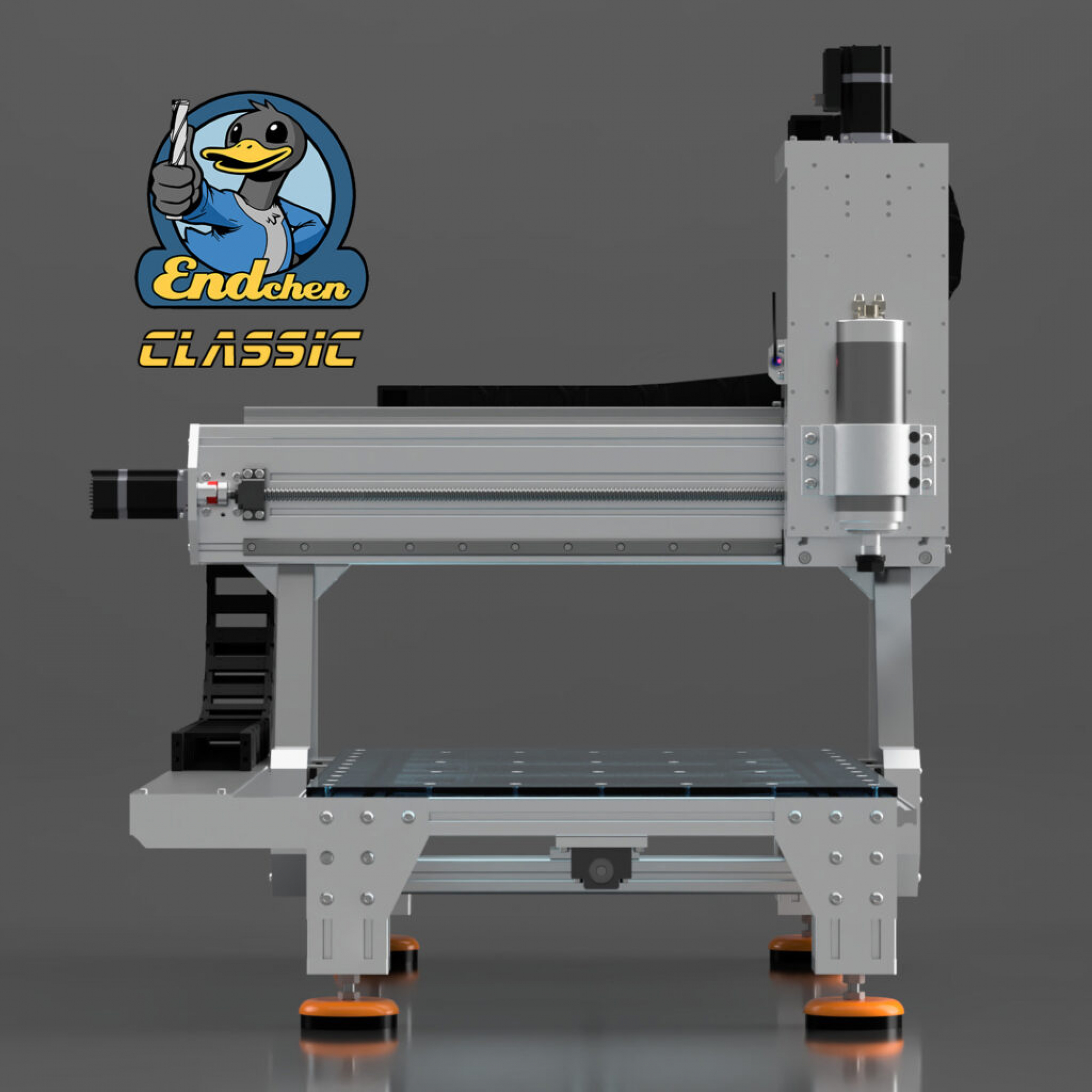

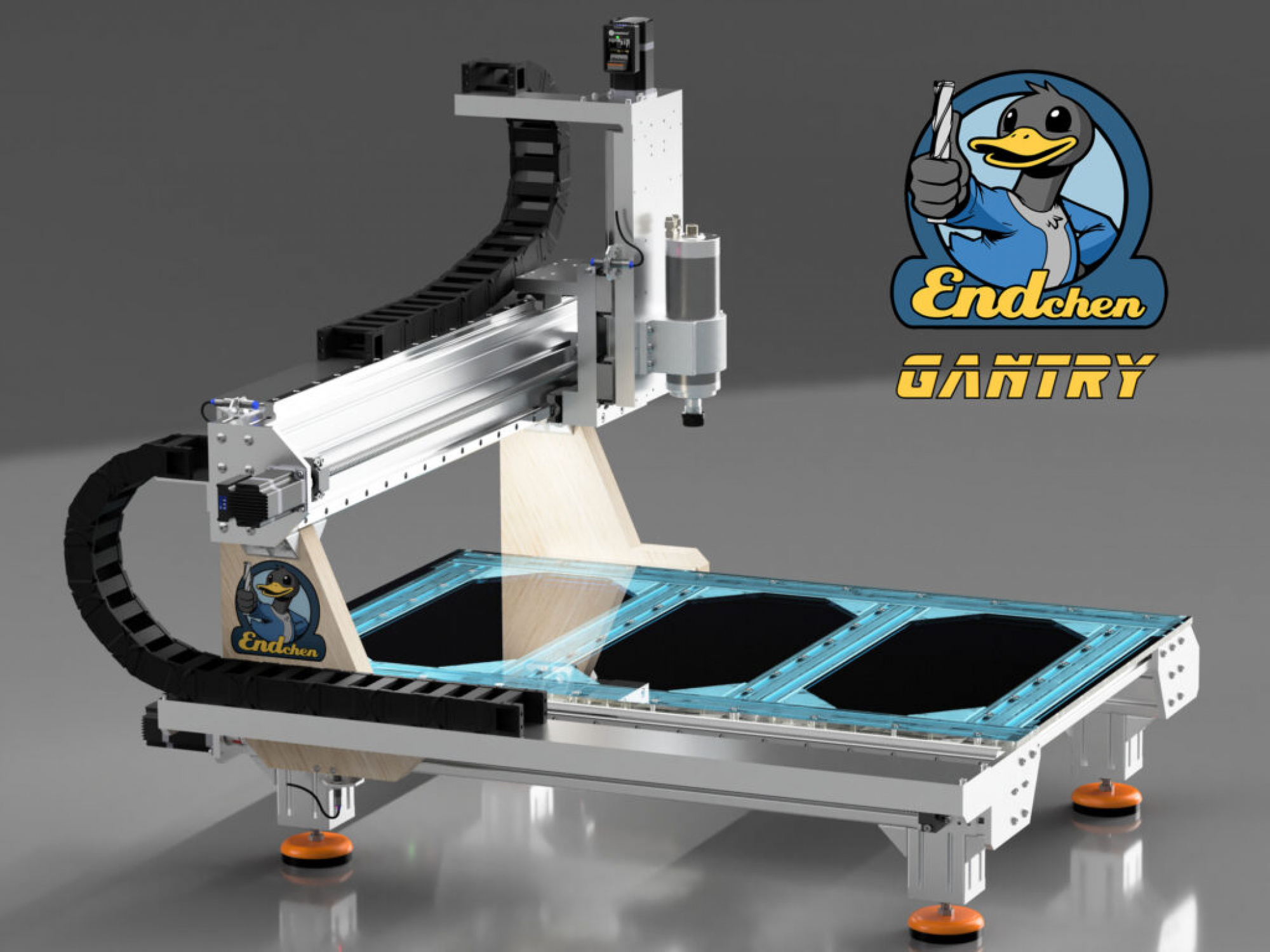

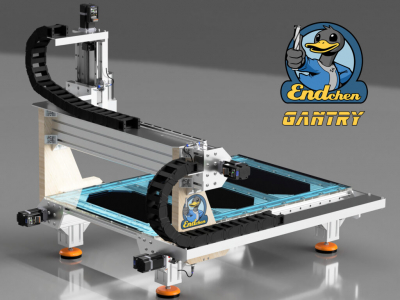

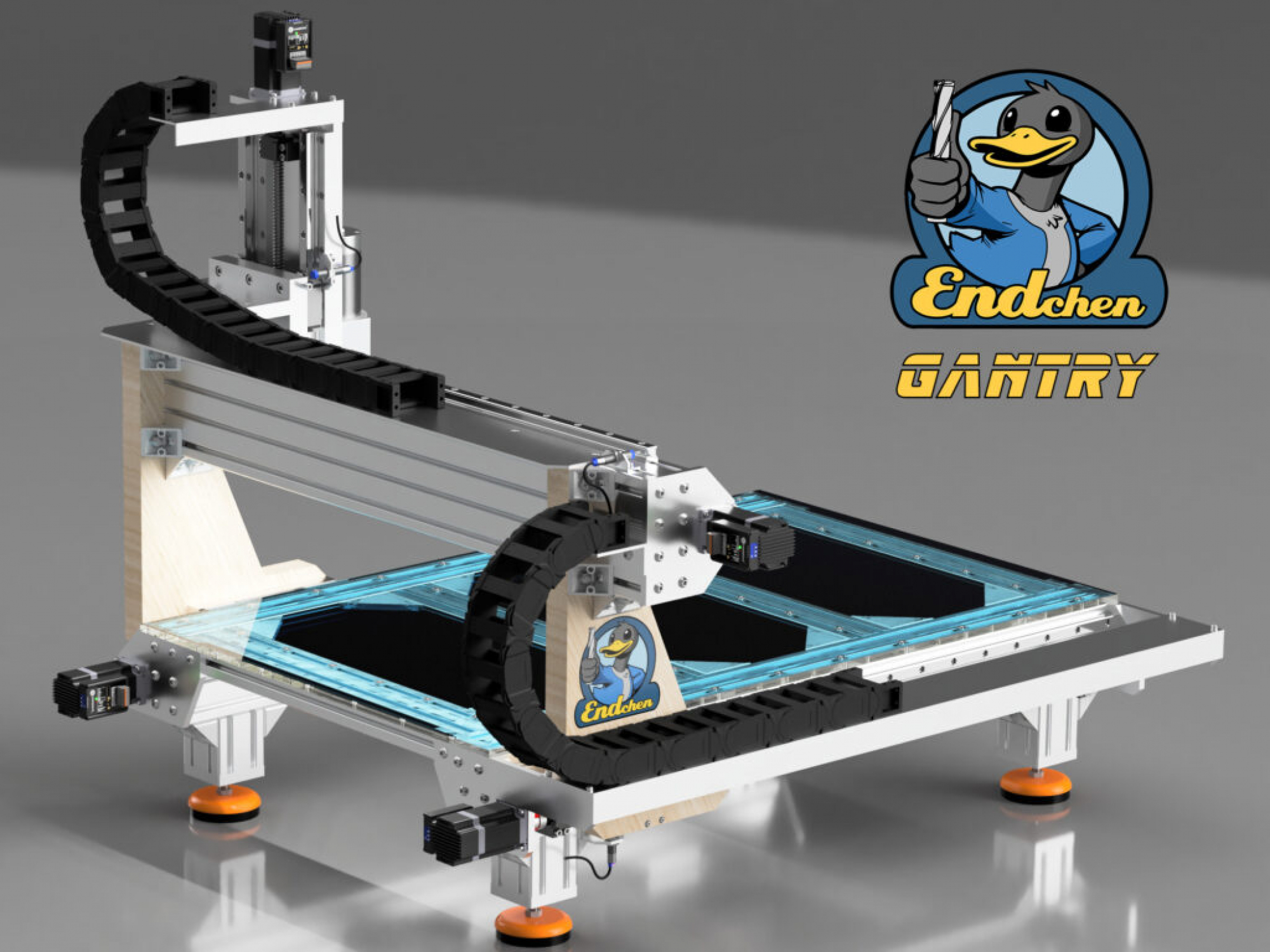

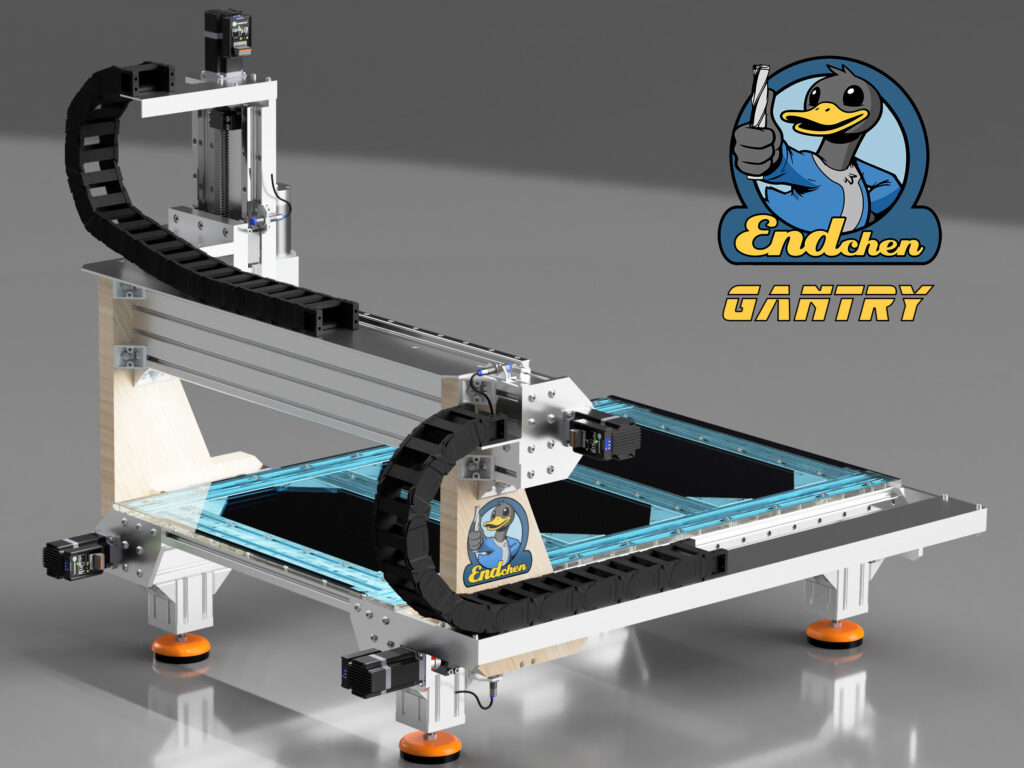

 The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state.After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this  Information sheet |
| The data and the parts may not be sold commercially without authorisation! More Information and contact to the parts data owner |
Available options
- All parts according to the standard
- Robust profile design for frame and portal beam
- Machine foot set
- milled parts optimized by Sorotec
- Complete set of screws
- Linear rails for all axes
- Belt drive for X- and Y-Axis
- Spindle drive for all axes
- Electric drives and reference sensors with cables
- Drag chains
All milled parts are optimised and manufactured by Sorotec:
- Countersunk screw holes on portal cheeks and other parts
- Bevelled edges
- Holes for cylindrical pins pins for precise mounting of the carriages
- Z-plate compatible with our Compact-Line adapter plates
Not included
- Milling spindle
- Base plate
- Drag chain supports
- Control unit

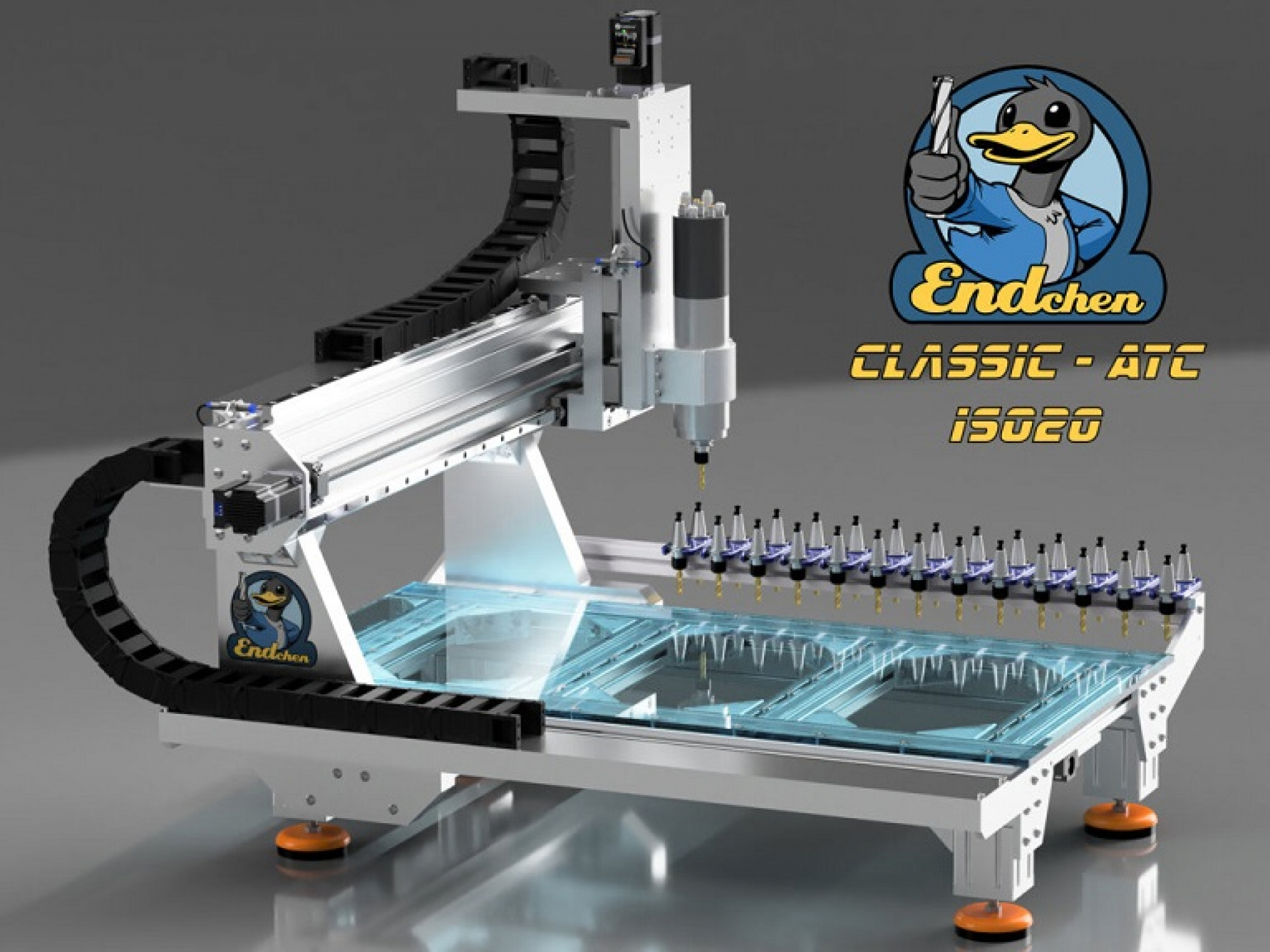

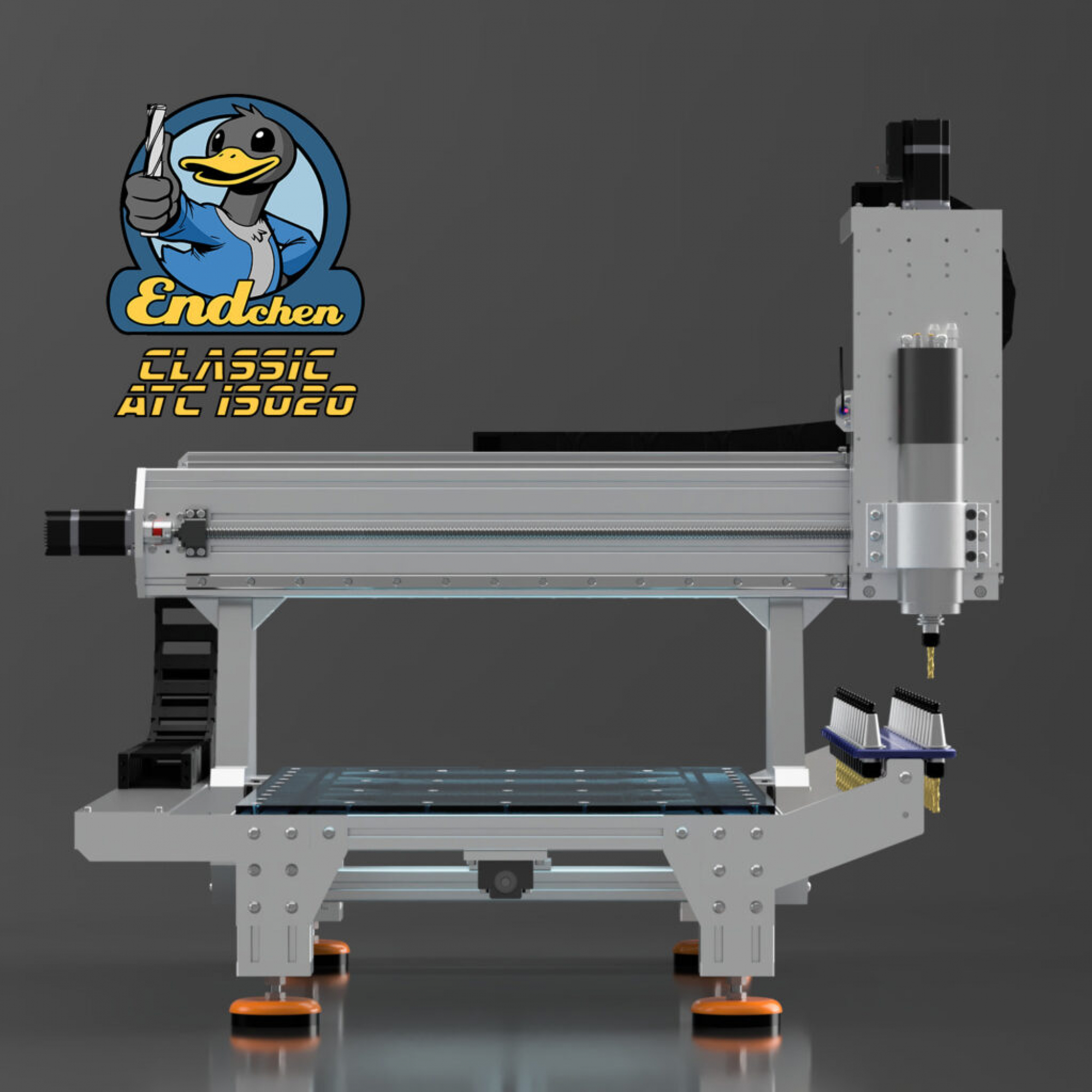

| Technical Data Classic 60x95 | Classic ATC 60x95 | |
|---|---|
| Travel | X: 600 mm Y: 950 mm Z: 190 mm |
| Shipping by freight forwarder, order on request Depending on the selected options this article may be delivered only by freight carrier for logistical reasons. In this case we will send you a customized offer incl. Transport costs. |
Have we piqued your interest? Fancy more?
Contact us, we will be happy to advise you and provide you with an offer that meets your requirements.
You can reach us at
sorotec@sorotec.de+49(0)7227 994255-0
Z-Hauptplatte Schienen fahren Zeichnung Sorotec v1.pdf Frontverbinder Zeichnung 2x fertigen v16.pdf Fussplatte Zeichnung v15.pdf Inihalter Portalachse einfach Zeichnung v3.pdf Inihalter Z-Achse einfach Zeichnung v2.pdf Kreuzplatte Teil 1 v5.pdf Kreuzplatte Teil 2 v8.pdf Kreuzplattenadappter Zeichnung v9.pdf Lageradapter Portal Zeichnung v10.pdf Lageradapter Tisch Zeichnung v9.pdf Motorhalter Portal Zeichnung v13.pdf Motorhalter Tisch Zeichnung v7.pdf Motorhalter Z-Achse Zeichnung v9.pdf Obere Portalplatte Zeichnung v8.pdf Portalverbinder Adapterplatte Zeichnung v3.pdf Portalwange Zeichnung v11.pdf Schleppkettenablage Portalachse 850 Zeichnung v7.pdf Schleppkettenbefestigung am Portal Zeichnung v3.pdf Schleppkettenhalter Tischachse Zeichnung v10.pdf Schleppkettenhalter Z-Achse Zeichnung v3.pdf Schleppkettenunterstuetzung Portalachse 1050 Zeichnung v3.pdf Unterstuetzung Schleppkette Tischachse Zeichnung v5.pdf Untertisch Classic 800 Zeichnung v8.pdf Z-Hauptplatte Schienen fahren Zeichnung v7.pdf Z-Schienen-Adapter v9.pdf
