DIY-Kit Z-Axis 190 mm (two guide rails)
NEW
Z-axis compact line kit

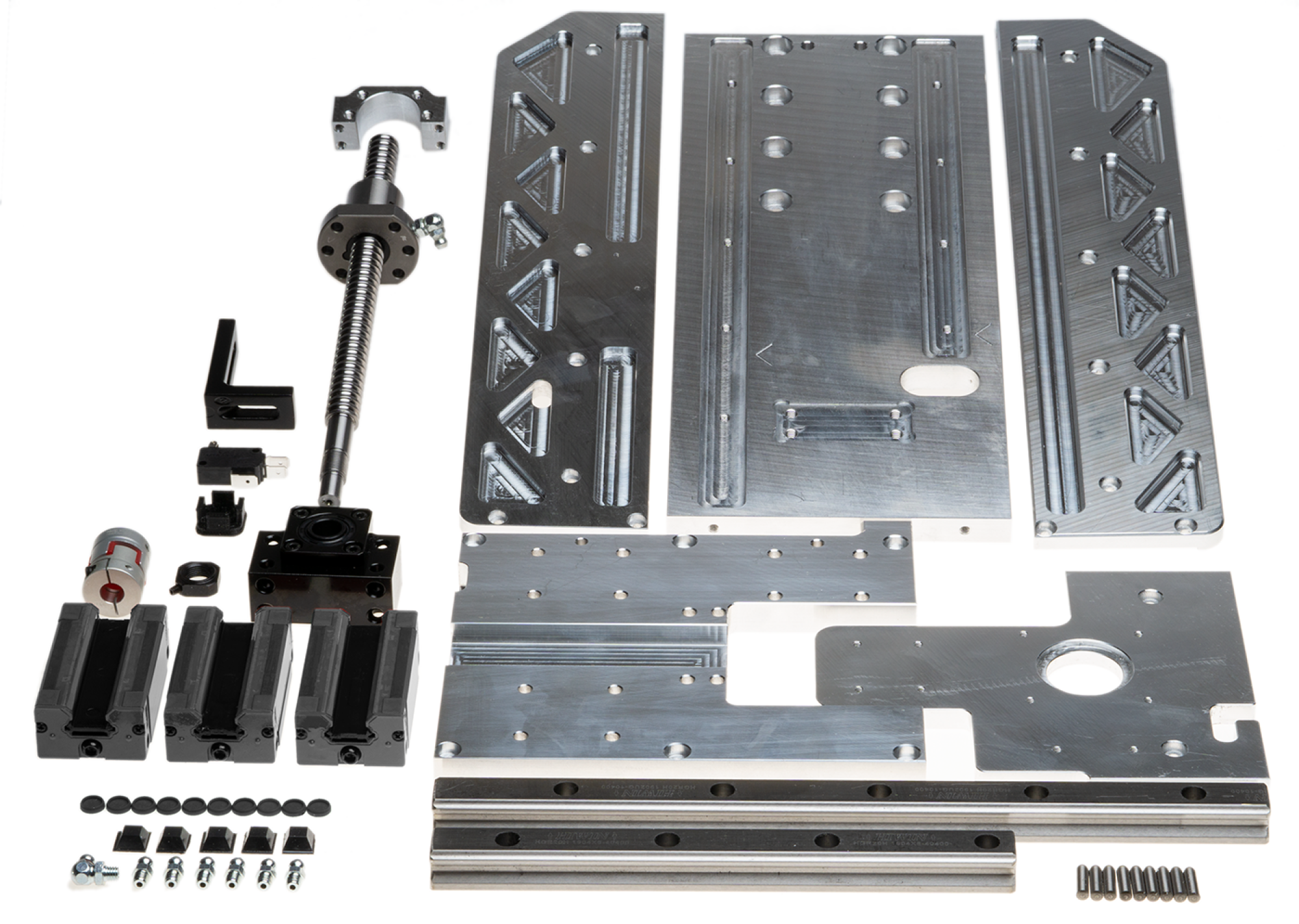

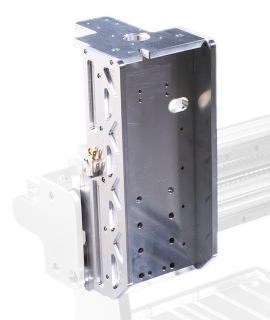

All parts for the mechanical construction of the Z-axis, as it also belongs to all machines of the Sorotec Compact Line. The Z-axis of the Compact Line portal milling machine is a self-contained assembly that is very well integrated into other projects. Be it as the centerpiece of your own new construction, or as a fitting completion of a new building that has already started. However, replacing an older machine is also an option, whether as a repair, to improve stiffness, or to use a milling motor for which no suitable holder has been available so far.
Drag chain and stepper motor are not included in the scope of delivery.
(Illustrations and pictures similar)
- Travel 190 mm
- Linear guides size 20
- HIWIN ball screw tolerance class T07
- Complete set of screws
