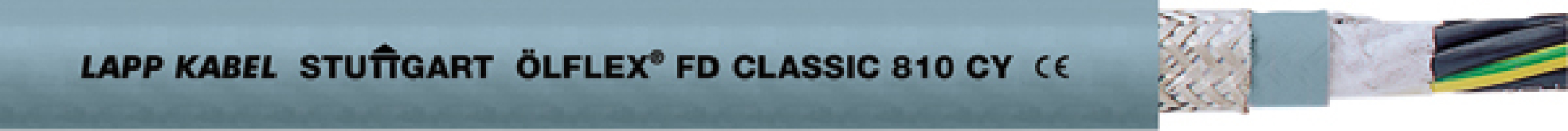

Control Cable ÖLFLEX® CLASSIC FD 810 CY G 5 x 0.5 mm²

Suitable for Drag chains

Screened, PVC -insulated, numbered, PVC-inner- and outer sheath

Application range

• In power chains or moving machine parts
• Use in measuring, control and regulating circuits
• Power circuits for electrical equipment in automation engineering
• Assembly lines, production lines, in all kinds of machines
• Plant engineering

Technical specifications

• Cross-section: 5 x 0.5 mm²
• Rated voltage: 300/500 V
• Outer-Ø: 6.2 mm
• Based on: Core in accordance with VDE 0245/0281
  Sheath in accordance with VDE 0245/0281
• Bending radius: For flexible applications: 15 x outside diameter
  Static: 4 x cable diameter
• Range of temperature: Flexing: 0 ... +70 °C, Fixed installation: -40 ... +80 °C
• Colour: Grey
• Core-Identcode: Black with white numbers acc. to VDE 0293, with GN/GE protection line
• Conductor stranding: Fine wire in acc. to VDE 0295 Cl.5 / IEC 60228 Cl.5
• RoHS-conform: Yes
• Sreened: Yes
• Color-coded: No
• Suitable for drag chain: Yes
• Halogen-free: No
• Number coded: Yes
