Connector-Set for steppers

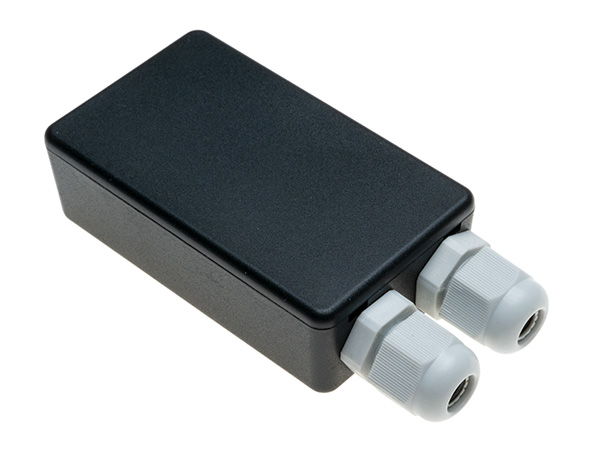

Connector set for stepper motors

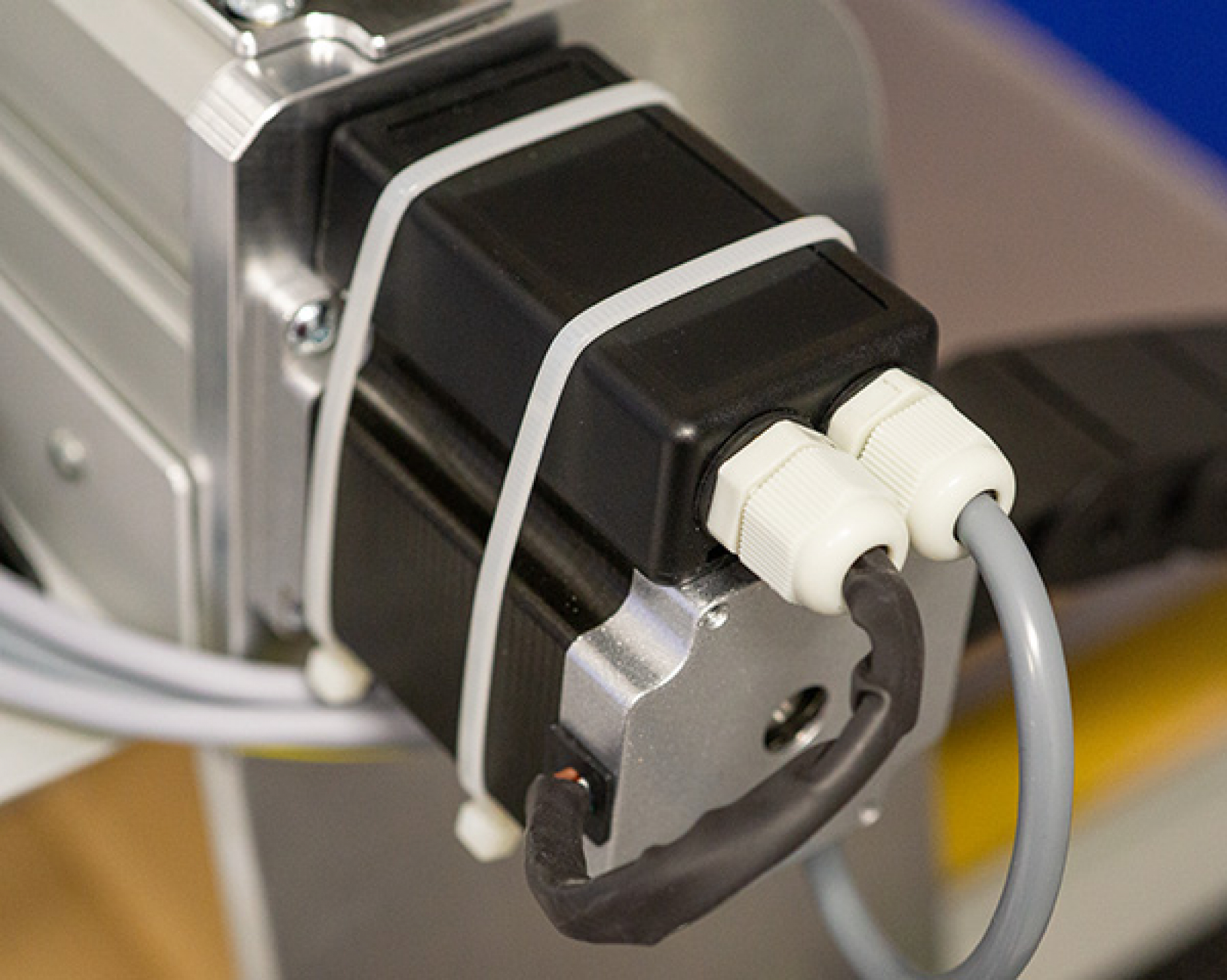

Connector box and board for simplified connection of stepper motors. Sorotec's in-house development puts an end to the fiddly soldering and error-prone Sub-D connections of control cables and stepper motors. The connection of the terminals on the board corresponds to the connection variant Bipolar Parallel. The box is easily attached directly to the engine with cable ties.Note:
A connector set is required for each motor. The color of the cable glands can differ from the one shown in the picture.
Dimensions:
H x W x D: 23 x 40 x 70 mm
Cable gland protrusion: appr. 22 mm
Max. Cable diameter: 6 mm

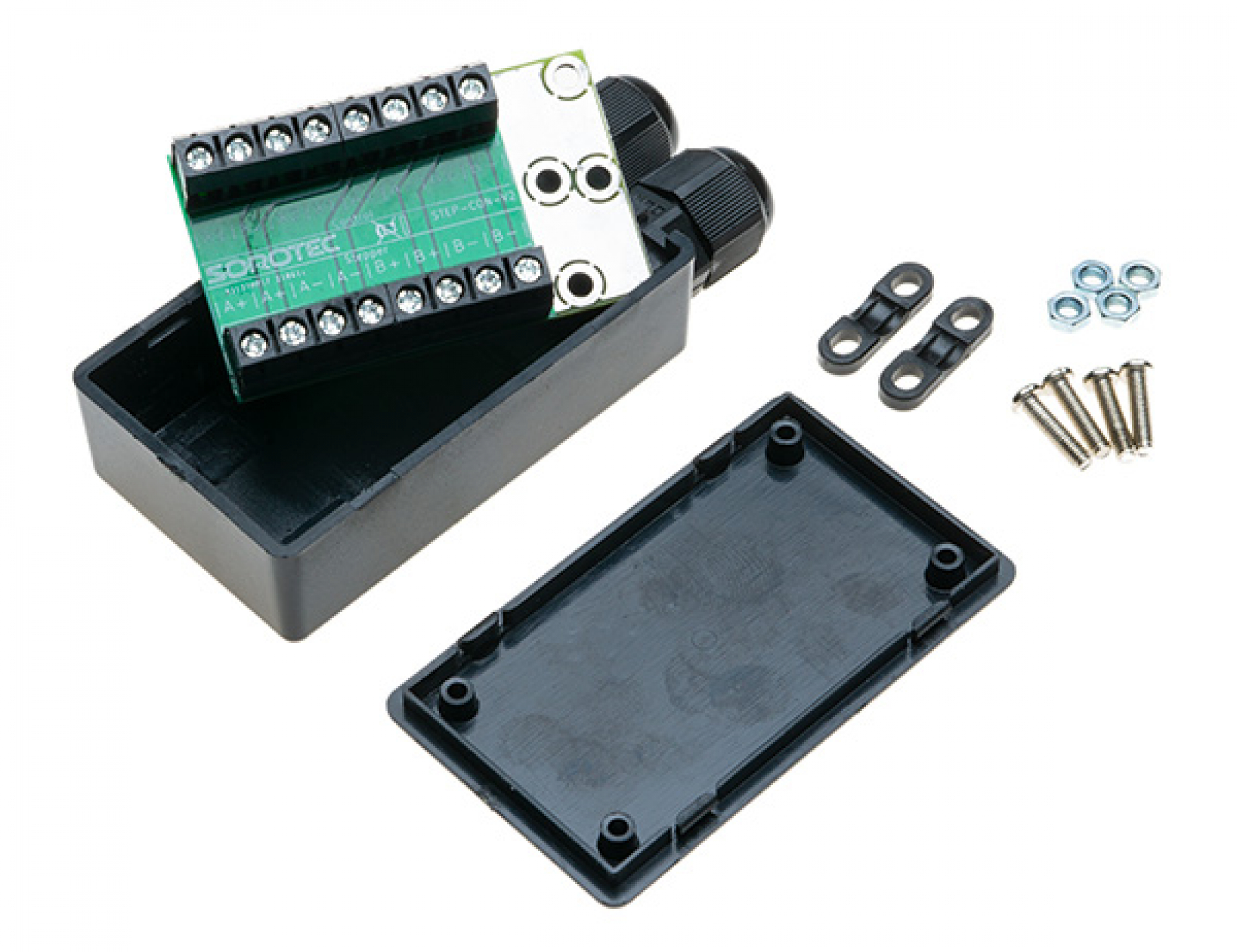

Content :
- housing

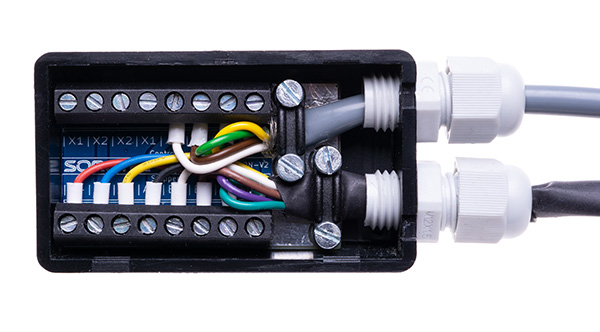

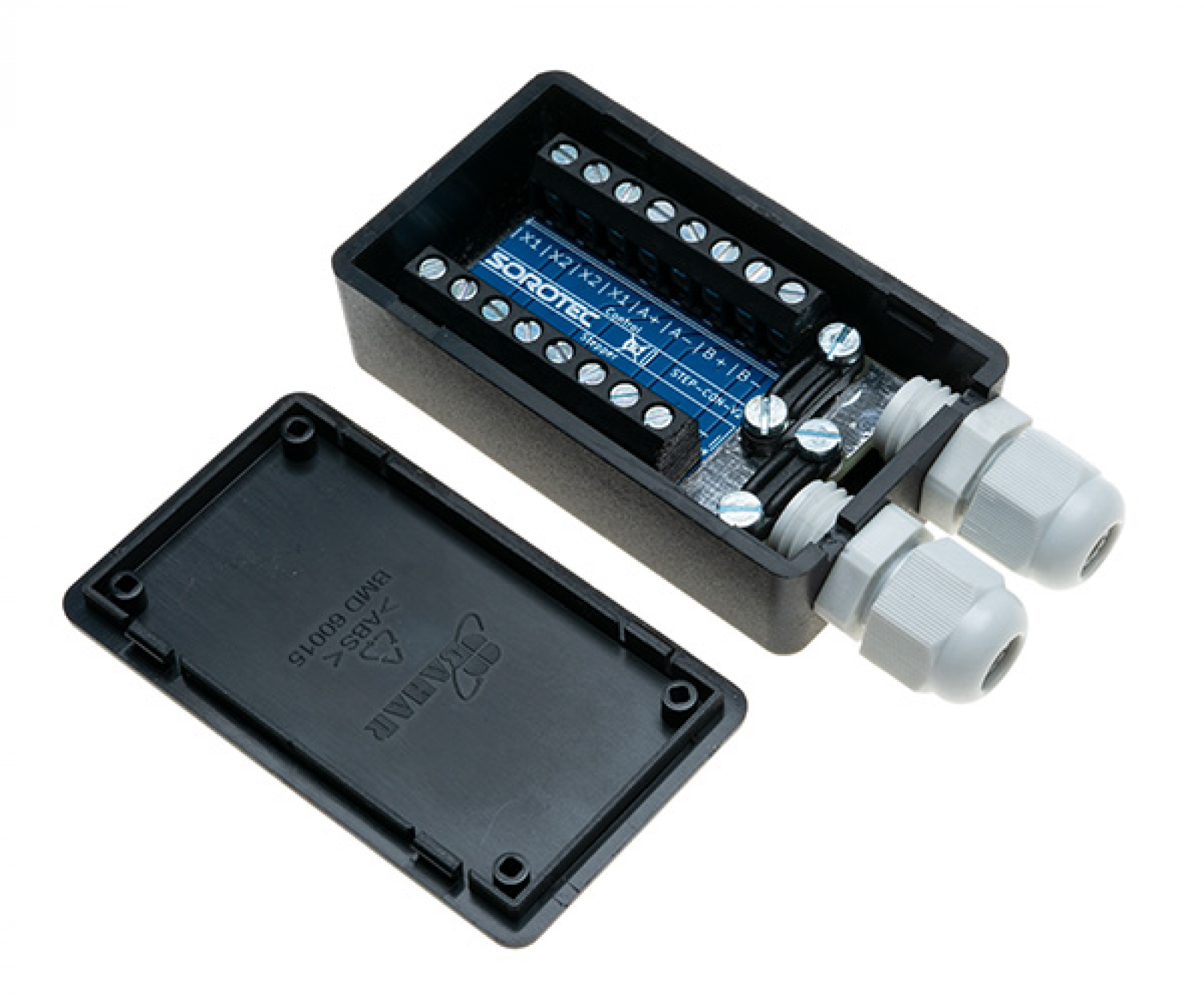

- connection board with screw terminals
- 2 cables glands
- zip ties
Terminal assignment (german/english)Manufacturer: | Responsible person: |
