Sorotec Compact-Line 0804 Light parts set
The Compact-Line Light series offers a cost-effective entry into professional CNC machines. With the compatible Performance Kit für Compact-Line Light, the mechanics can be upgraded to the level of a full-fledged compact line.
This parts set contains all the parts you need for mechanical assembly. Drag chains and stepper motors are not included in the scope of delivery.
| Technical Data (Standard variant) | |
|---|---|
| Travel | X: 820 mm Y: 410 mm Z: 140 mm |
| Clearance under Portal | 170 mm |
| Clamping area | X: 1050 mm Y: 406 mm |
| Dimensions | L: 1120 mm W: 610 mm H: 750 mm |
| Linear guides | Blue Line HGR20 on all axes |
| Number of linear carriages | X: 2 x 1 Y: 2 Z: 2 |
| Ball screw spindles | Blue Line tolerance class T07 on all axes X: 16 x 10 mm Y: 16 x 10 mm Z: 16 x 05 mm |

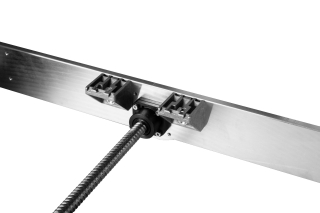

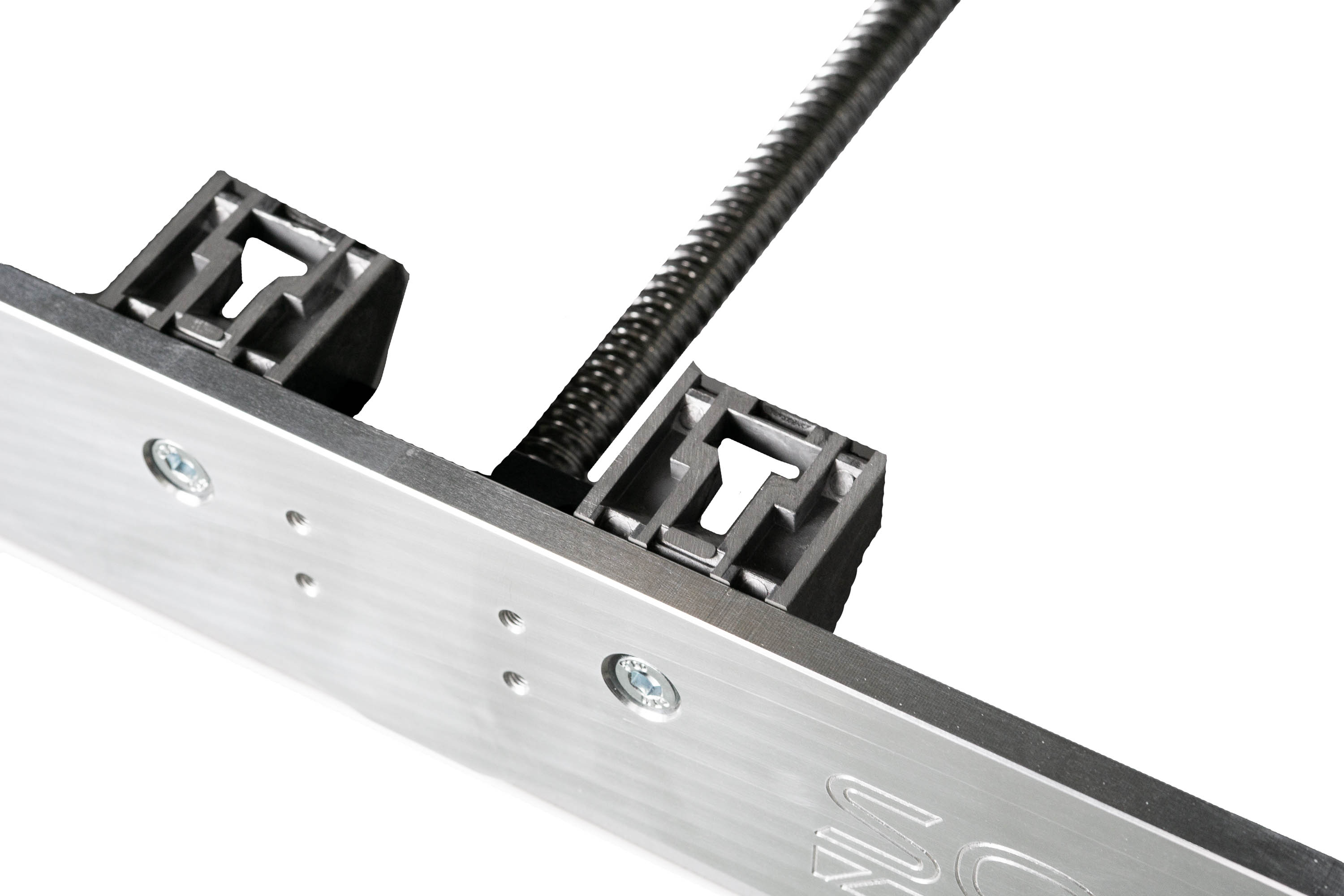

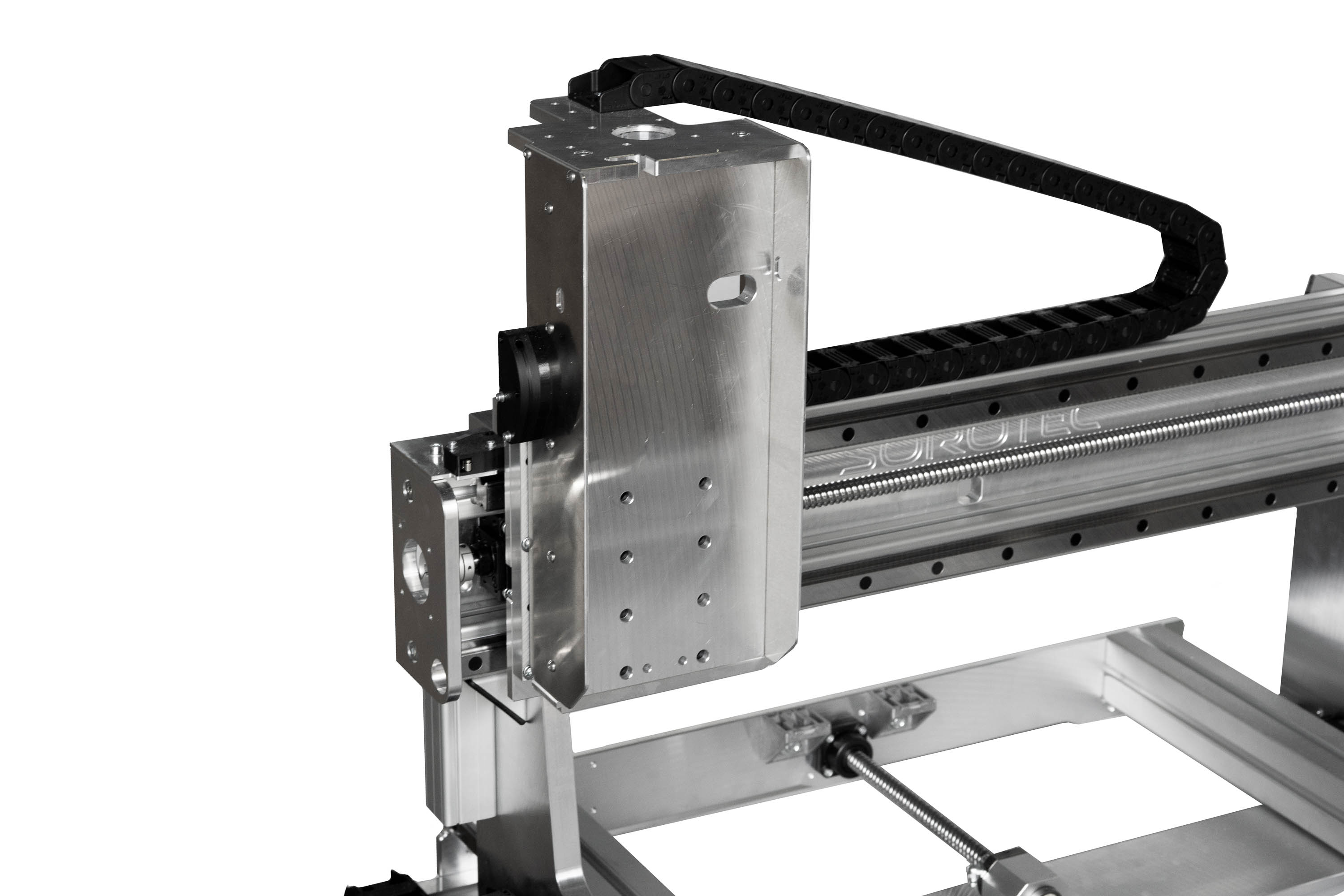

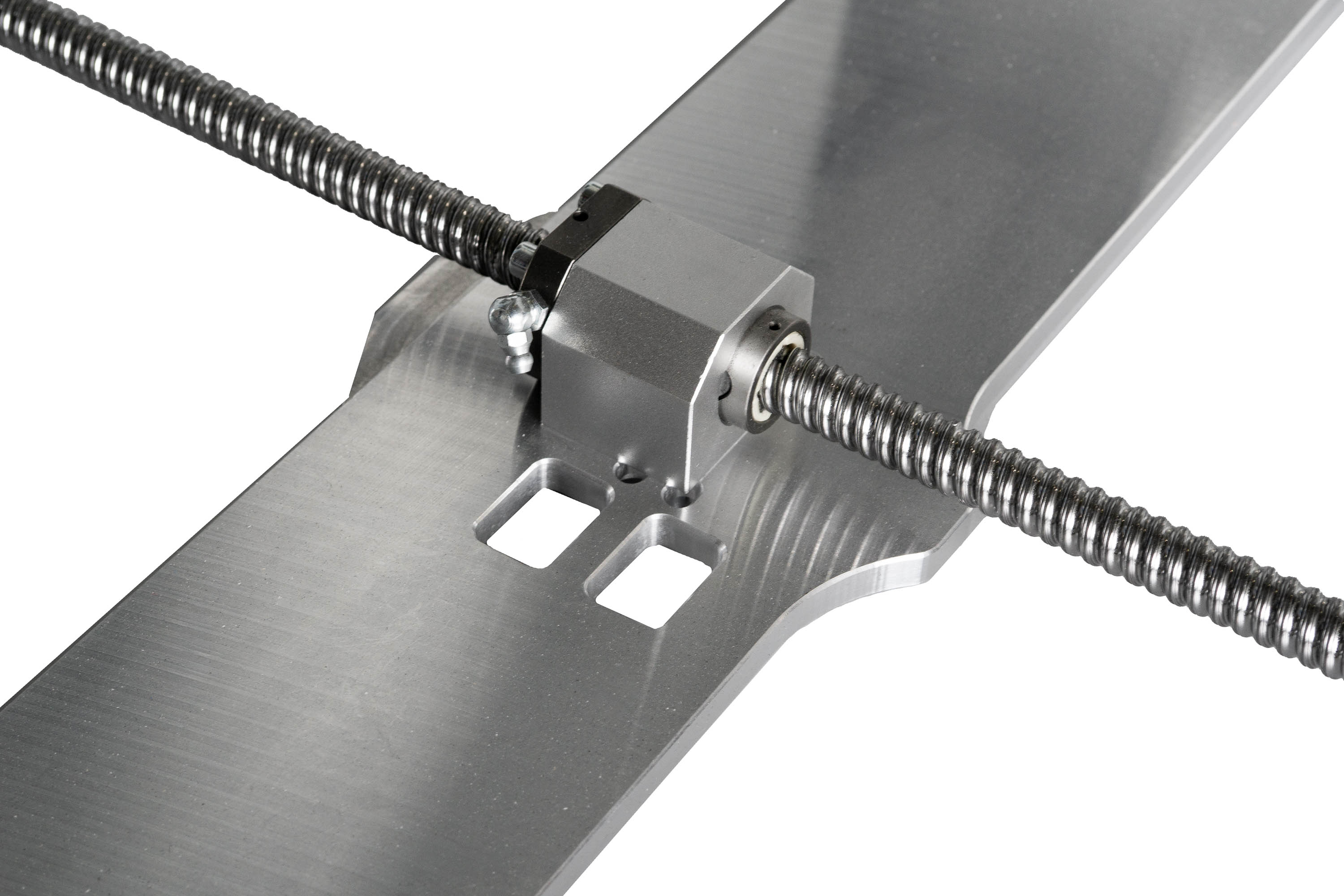

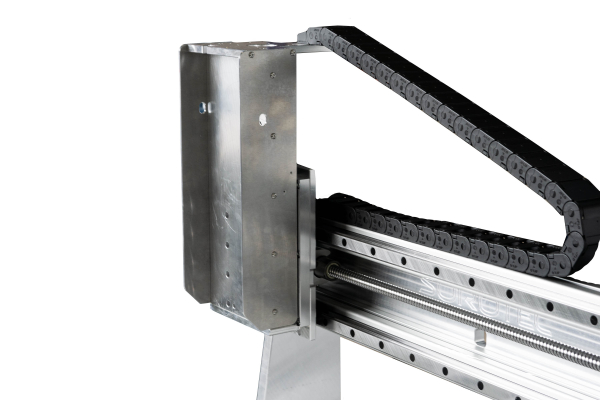

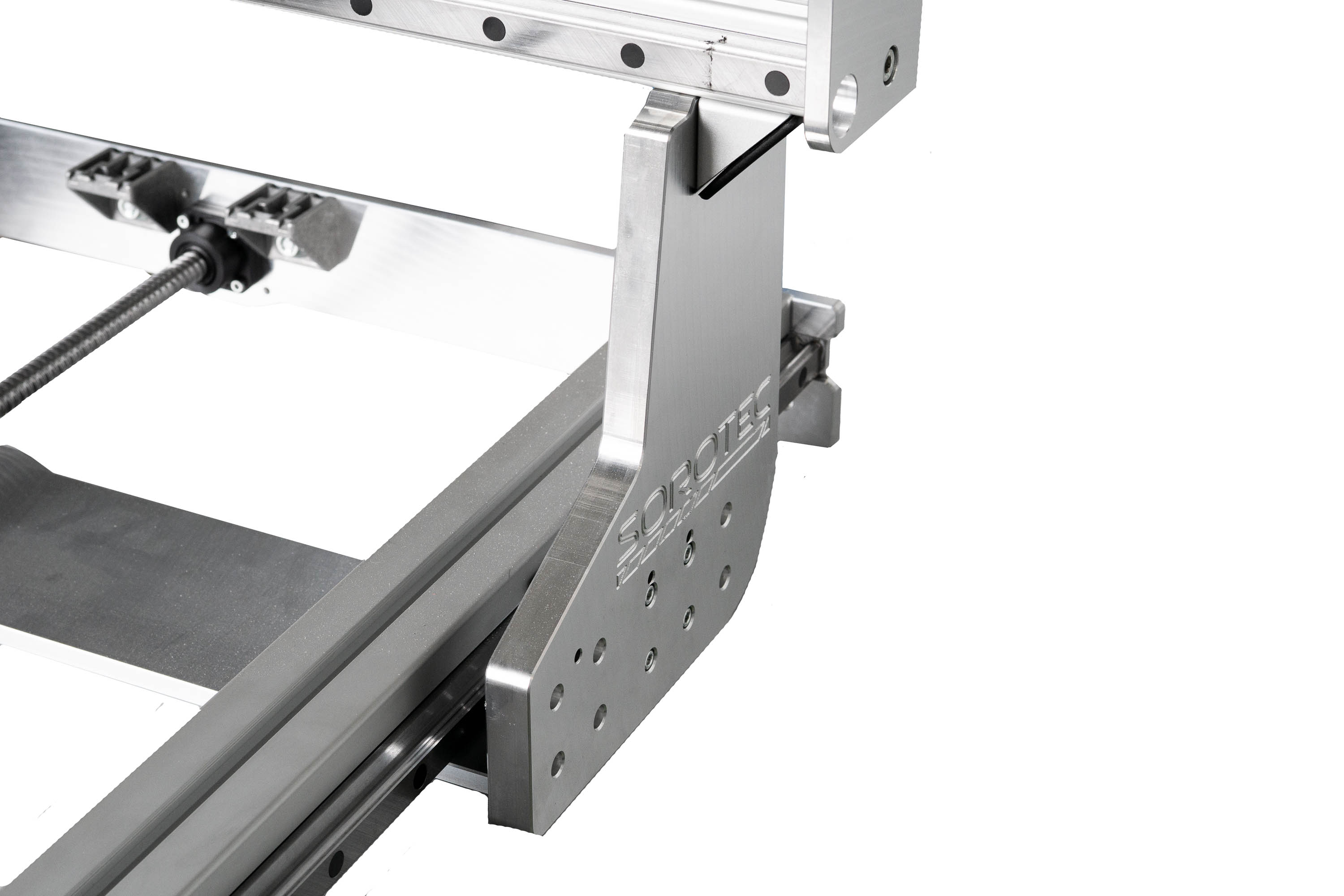

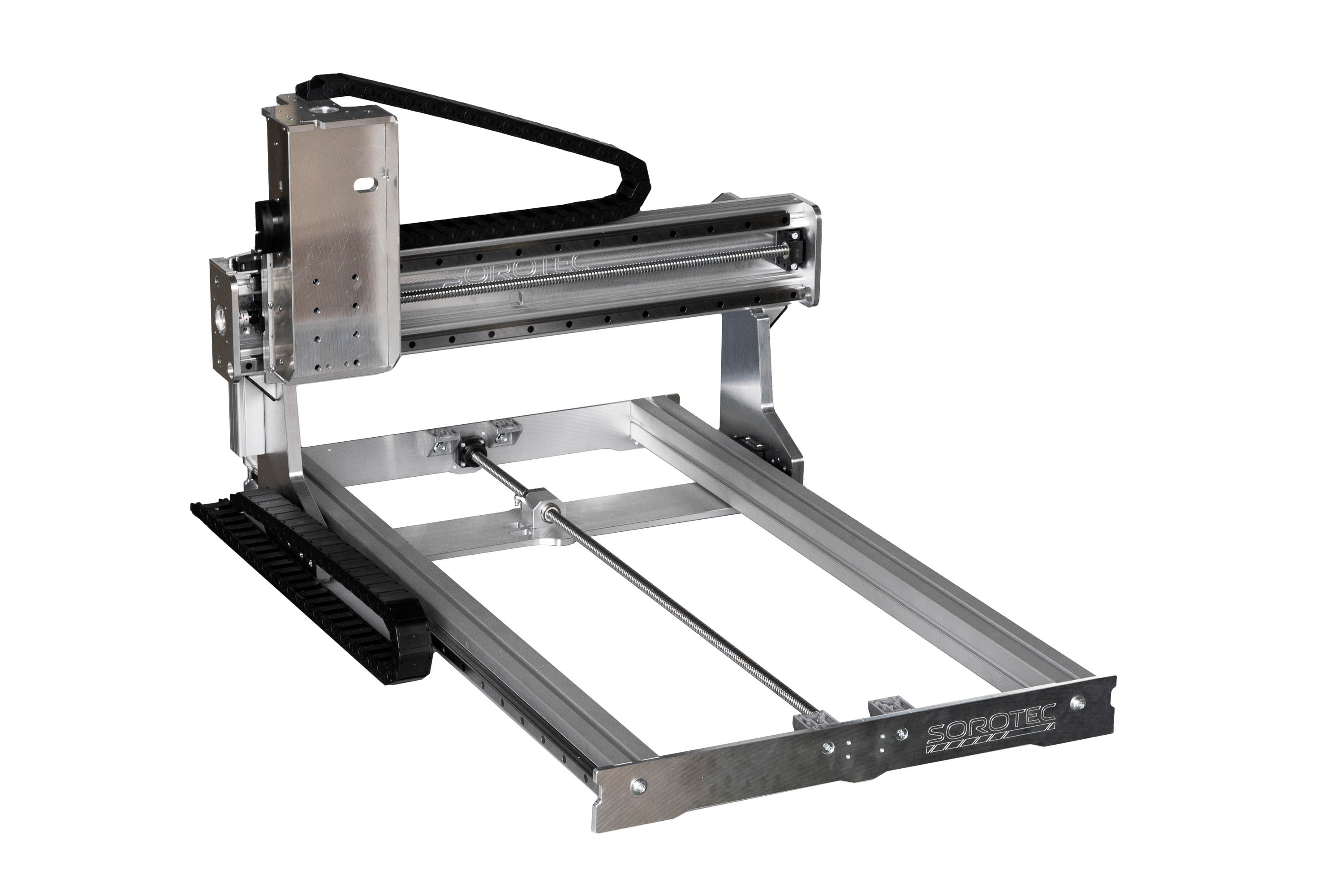

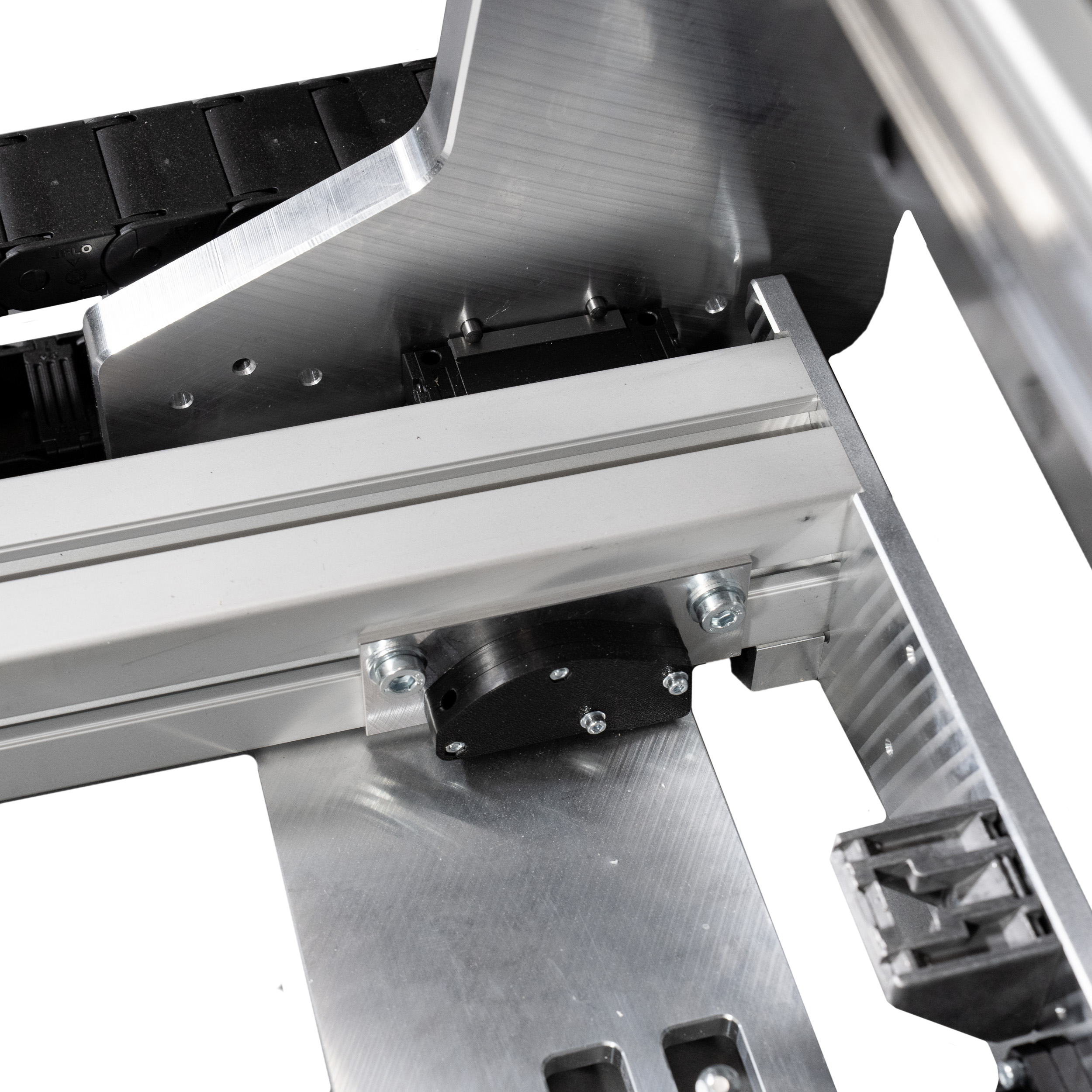

 The mechanics is supplied in individual parts for self-assembly. The pictures show the fully assembled state.After completion, the sets of parts presented here represent what is referred to as "incomplete machines" in the Machinery Directive. For operation in accordance with the regulations, it must be completed with an enclosure and the module functional safety (operator protection). Also read this  Information sheet |
Scope of delivery
- Mechanics parts set
- Machined guide surfaces for linear guides
- Blue Line prestressed linear guides HGR20 and carriages
- Blue Line ball screw spindles
- Mechanical reference switches for all axes
- Complete set of screws
- Assembly instructions
