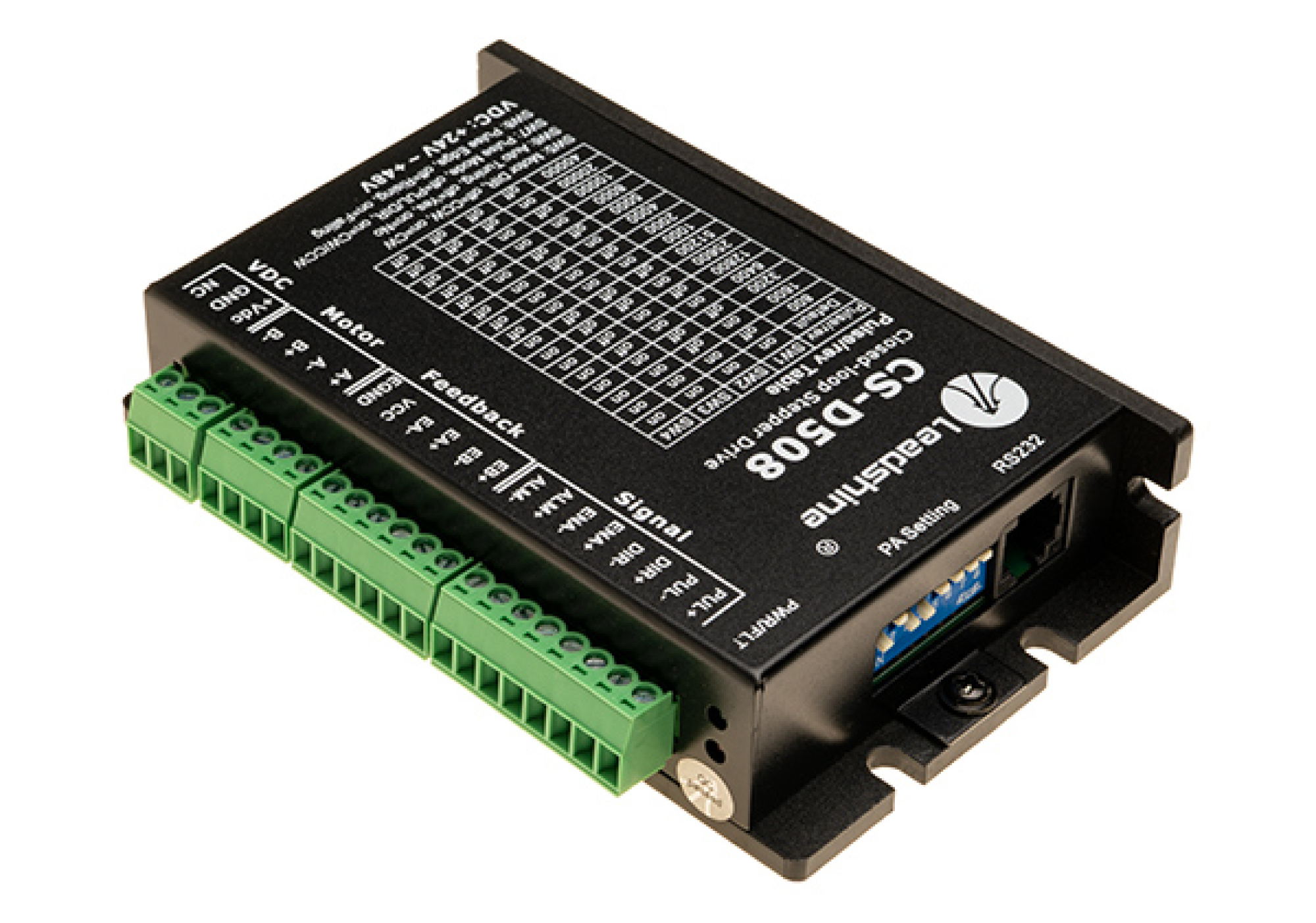

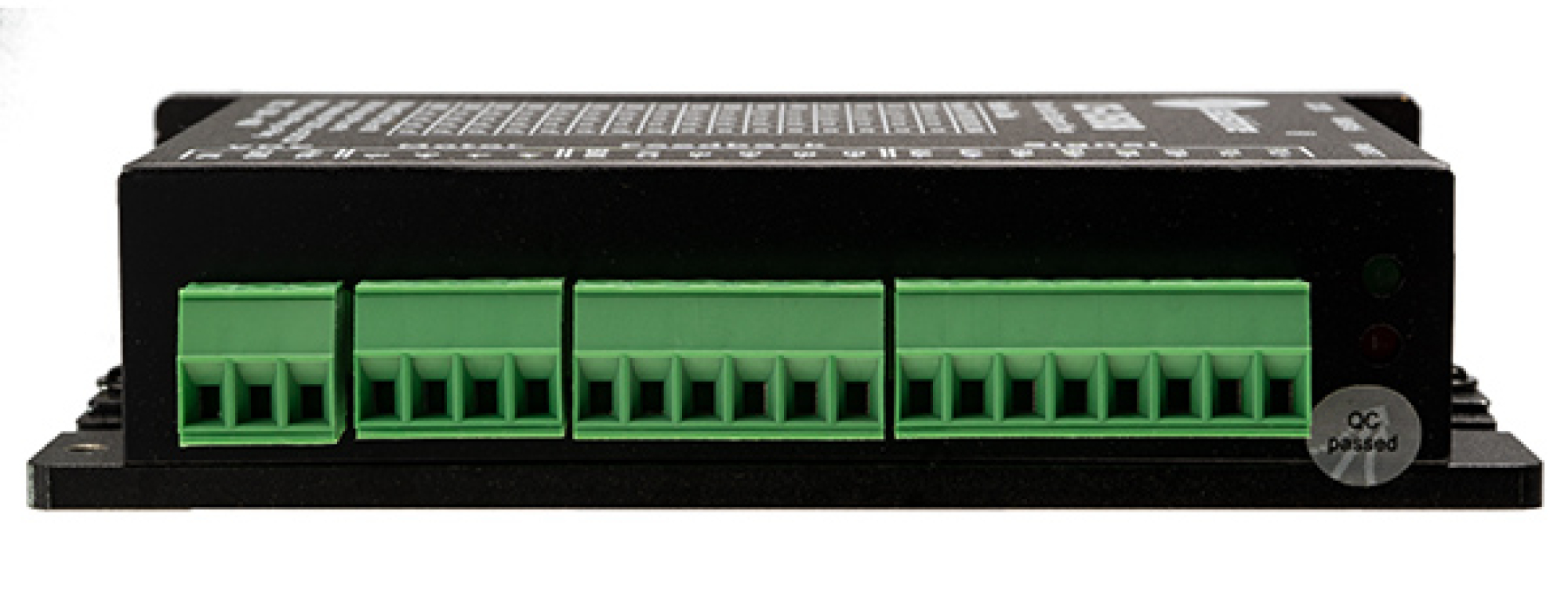

CS-D508 Closed Loop Stepper Driver

20 ... 50 VDC, 0.5 ... 8 A

Leadshine CS-D508 is a closed-loop stepper motor driver which is designed to solve the problem of step loss in open-loop stepper motor controllers and increasing system reliability with minimal cost. The CS-D508 implements Leadshine's advanced control algorithm based on their ten years of experience in stepper motor and servo control. The CS-D508 is highly reliable and competitively priced and is ideal for many industrial applications such as CNC, medical, electronics, packaging.

The CS-D508 can power 2-phase stepper motors with incremental encoders. Compared to conventional open-loop stepper motor systems, a closed-loop CS-D508 can eliminate possible step losses, perform real-time position error correction, and does not require torque reservation (100 % torque implementation). It operates the stepper motor with reduced heating, noise, vibration, etc.

Features:

• Closed-loop, eliminates loss of synchronization
• Enhance performance at low speed application (< 60 RPM)
• No torque reservation required for readjustment control
• No Tuning required for easy commissioning
• Supply voltage of 20 - 50 VDC • Output current of max. 8 A
• Pulse input frequency up to max. 200 kHz
• A configurable digital output for "In Target Position Range" signal, or as brake command signal

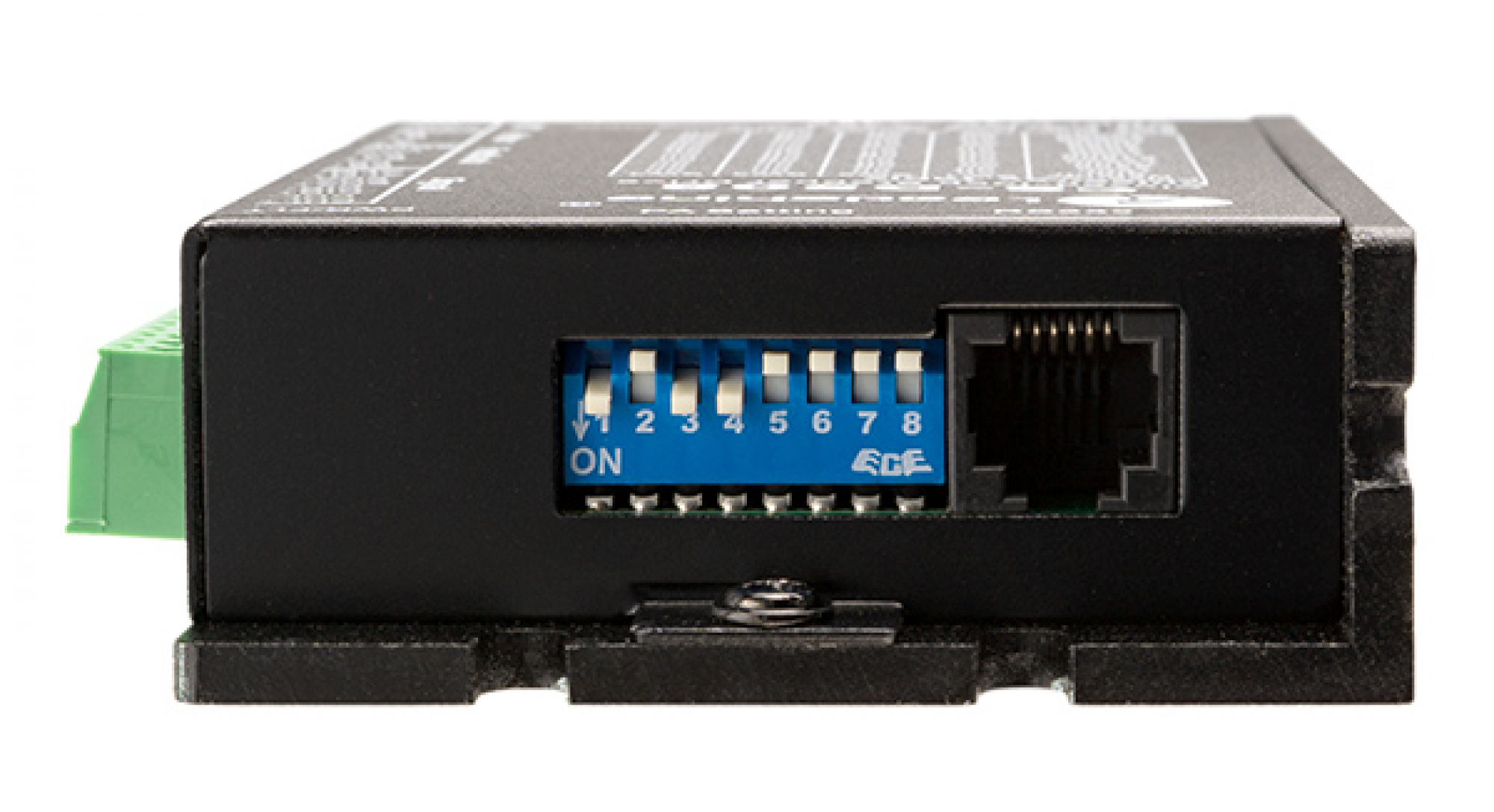

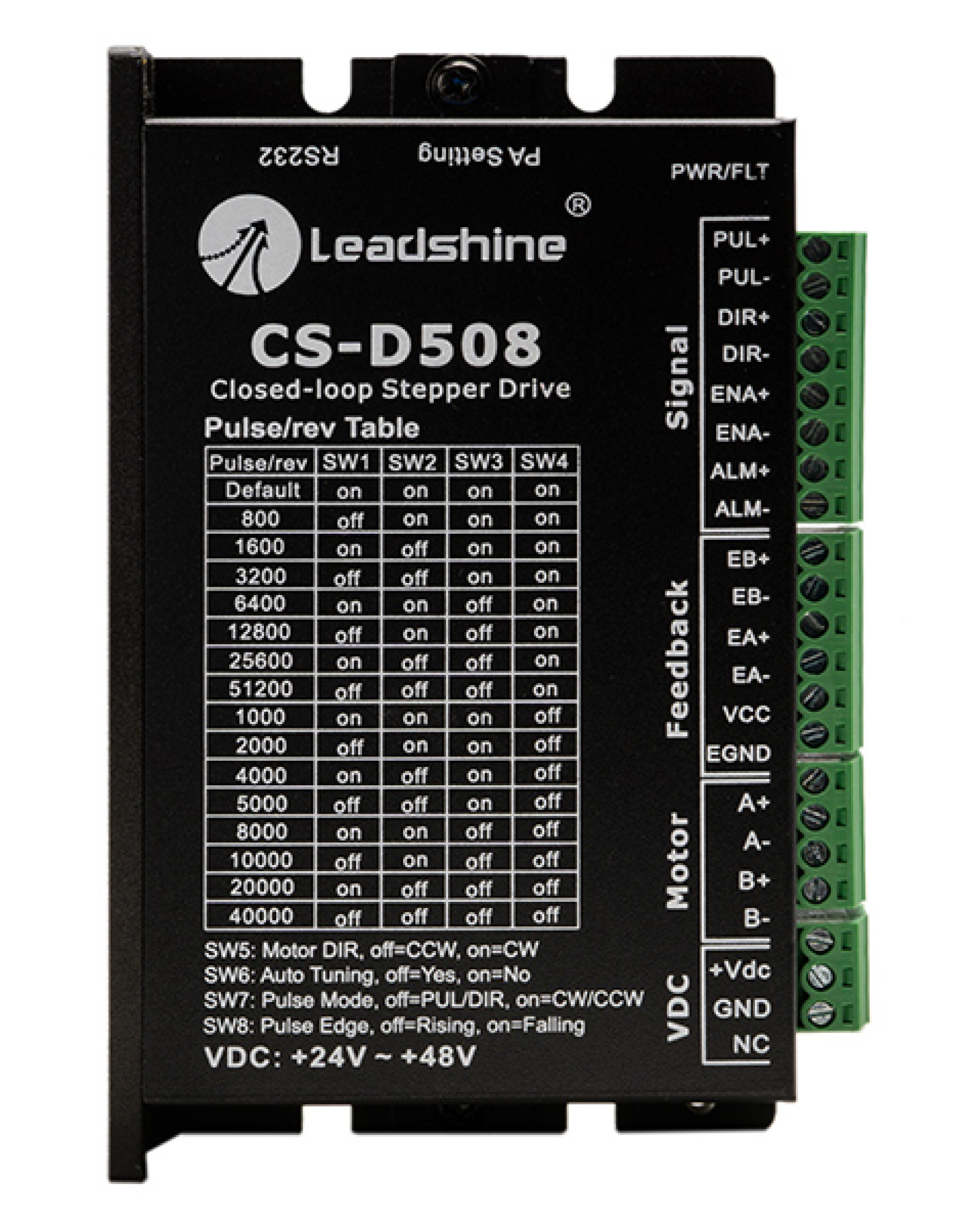

• Micro step resolution of 15 settings of 800 - 51,200 via DIP switches, or 200 - 51,200 via software (increments of 200)
• Protections for over voltage, over current and position error
• Low noise and vibration, smooth motion
