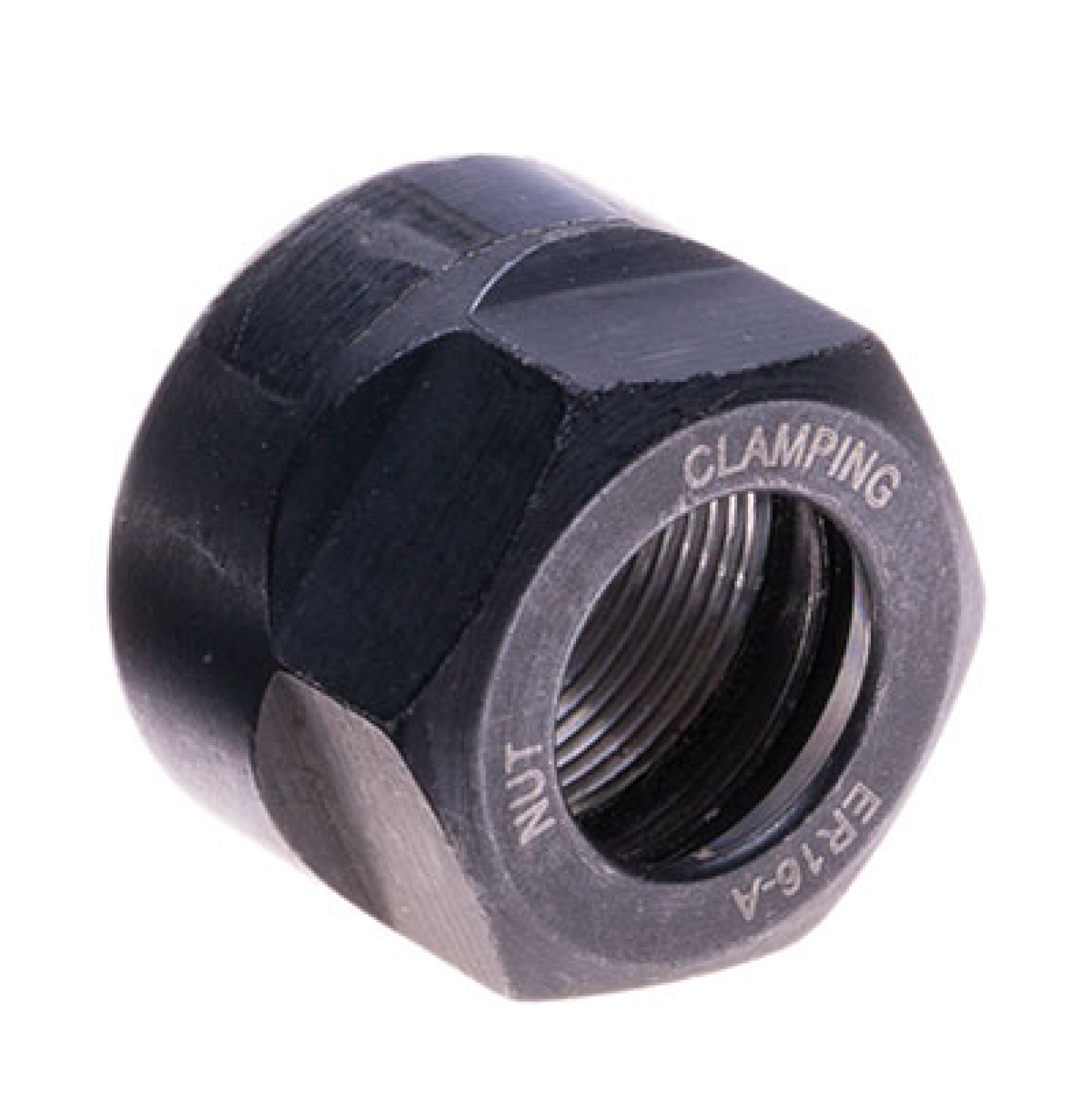

ER 16 Clamp Nut Type A M19 x 1 balanced
ER 16 Clamp Nut Type A M19 x 1 balanced
In contrast to the normal type A, this ER 16 clamping nut has an M19 x 1 thread. It therefore only fits on the air-cooled spindle 8022 AC from Mechatron.Please do not try to use this clamping nut for another spindle!

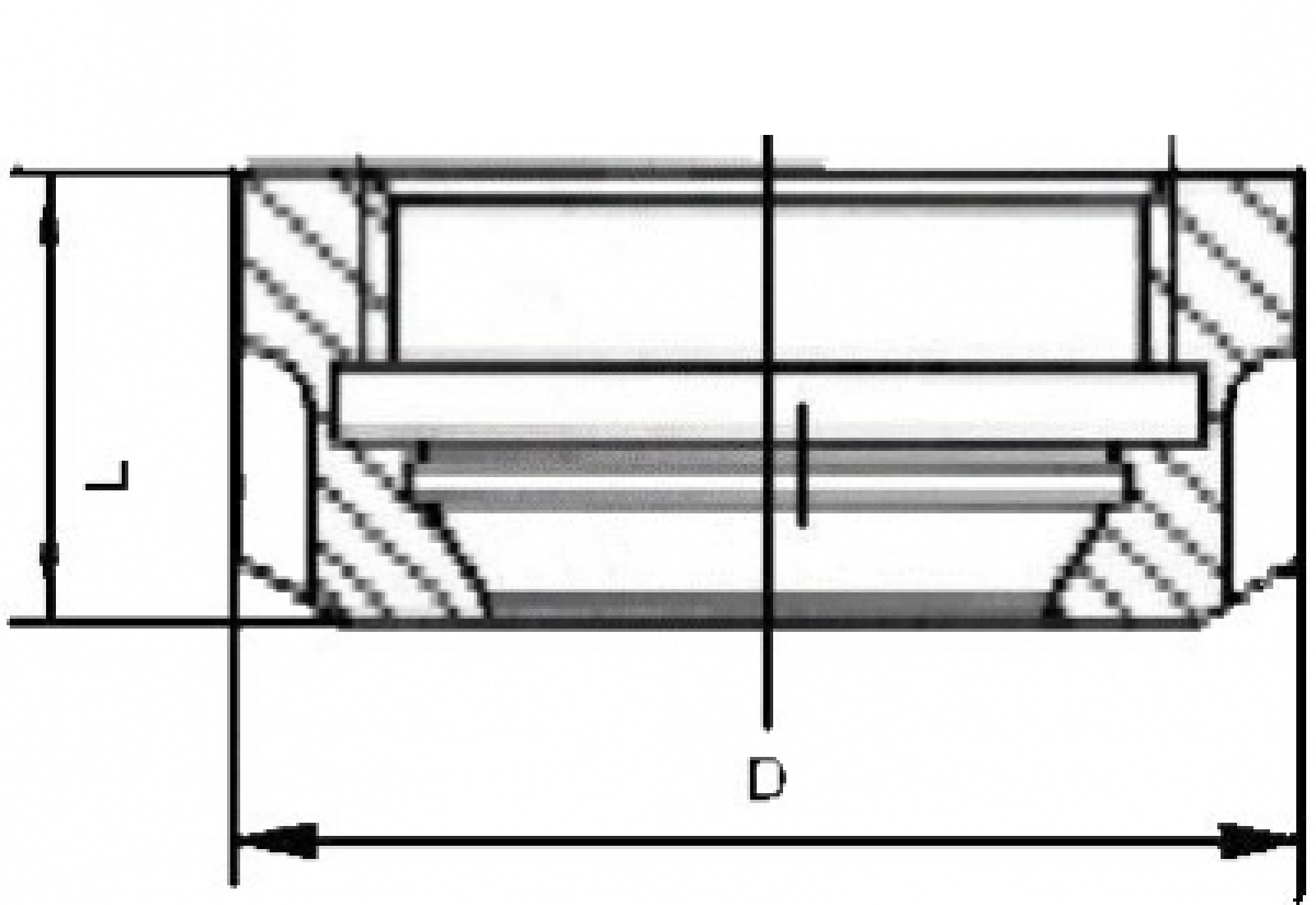

- M19 x 1
- balanced
- L: 20 mm
- D: 24 mm
- Schlüsselweite 22
- empfohlen bis 24.000 1/min
Information sheet clamping nutsManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
