Circular-Table RT103 1.8 A ER16

Rotary Table for engraving rings, milling threads etc.

• Definite and sccurate fixation of the workpiece with ER16 collets.
• Definition of the zero via reference switch.
• The tailstock serves as the counter bearing.
• Suitable for all machines.
• You will need the 4th axis module.

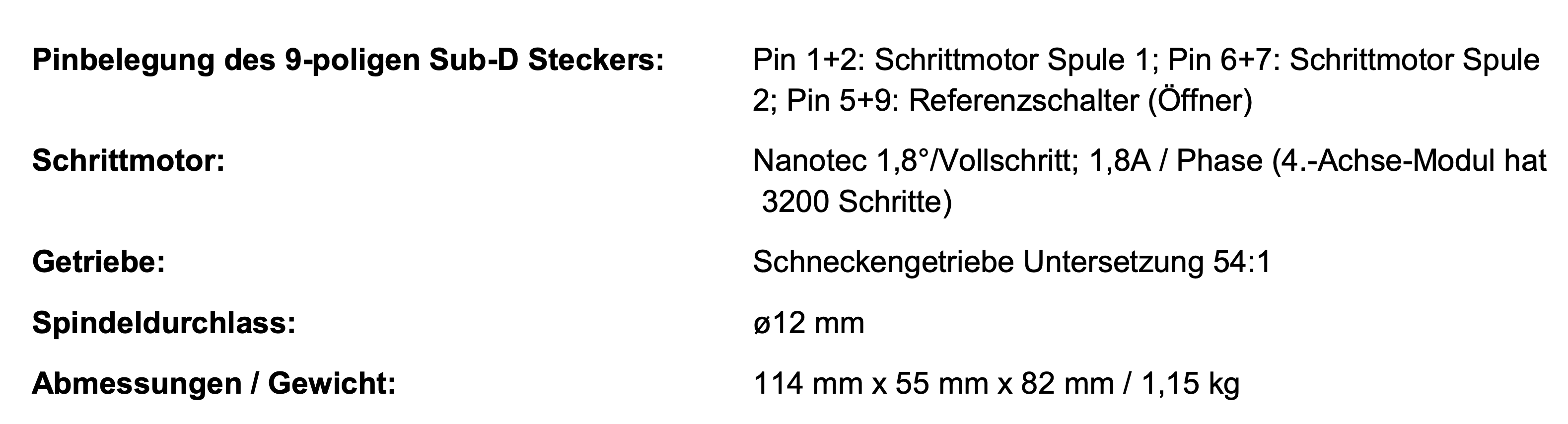

• Height of spindle: 32 mm
• Over all height: 55 mm
• Width: 42 mm (without shaft)
• With adjustable anti-backlash worm gear, gear reducation 54:1
• With half-step-mode = 21.600 Steps/Turn, 60 Steps/°, 1 Step = 1´ = 60"
• Collets: ER16 (1-12 mm)
• Circular accuracy: 0.01 mm
• Nema 17 stepper motor with 1.4 A 1.8°
• Housing: Aluminum 7075
• All rotating parts are made of stainless steel
• With reference switch
• Horizontal or vertical assembly
• Fixing by M6 screws
• for ER16 collets 1 mm ... 12 mm
• Tailstock RS102 also available
• acuracy 0.01 mm

• Complete rotary table incl. clamping nut and fixing screws for horizontal assembly
• Lenght of cable: 20 cm (on demand: longer with adequate plug for the 4th axis module)
• With half-step-mode = 21.600 Steps/Turn, 60 Steps/°, 1 Step = 1´ = 60"
