Centering Vise MS11
-20%
Centering Vise MS11

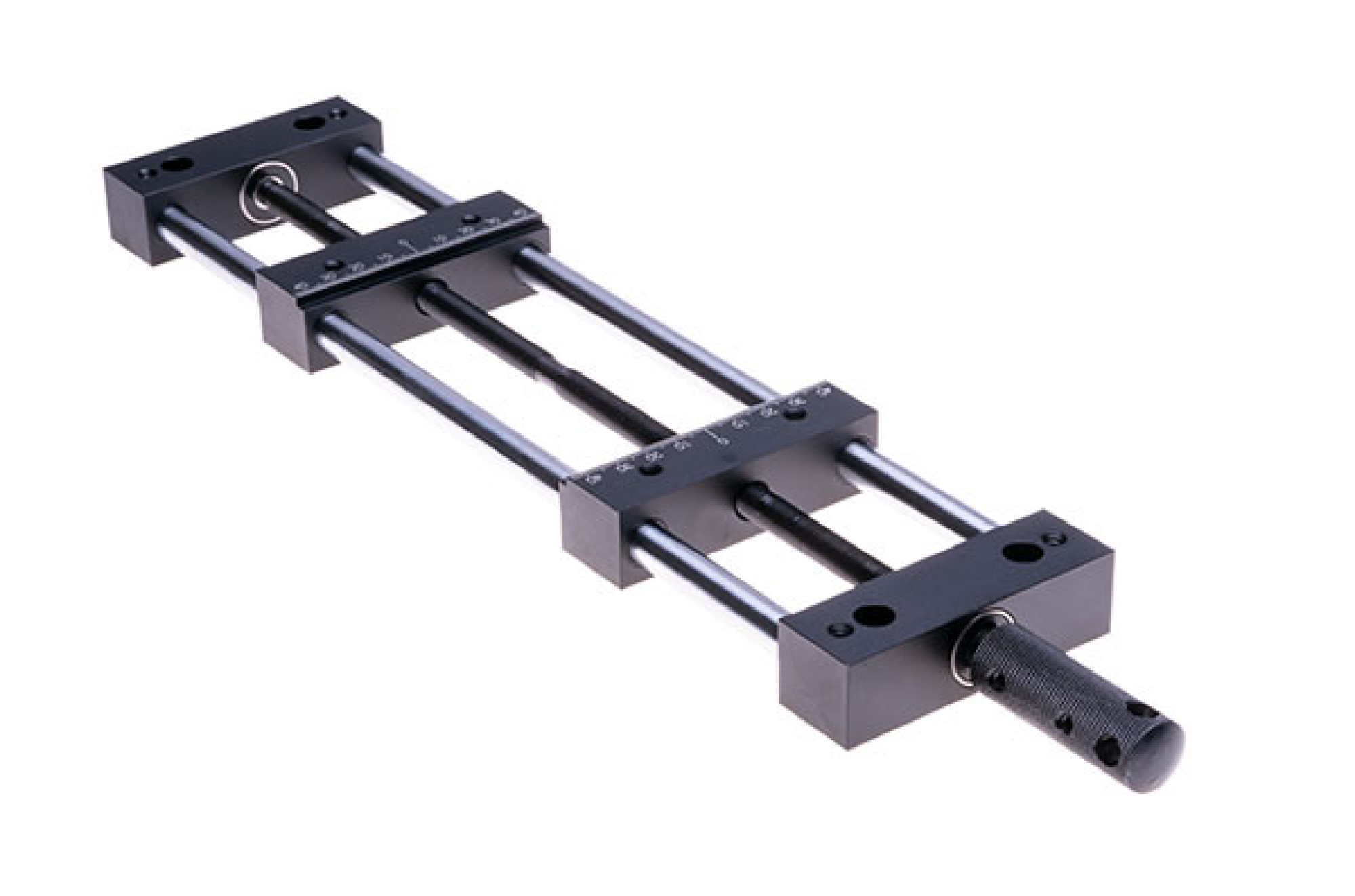

Stable and precise design with low height (26mm), particularly suitable for machines with low Z-axis.Measures:

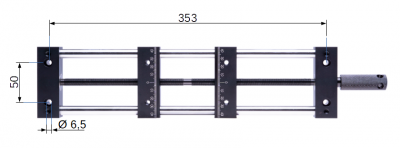

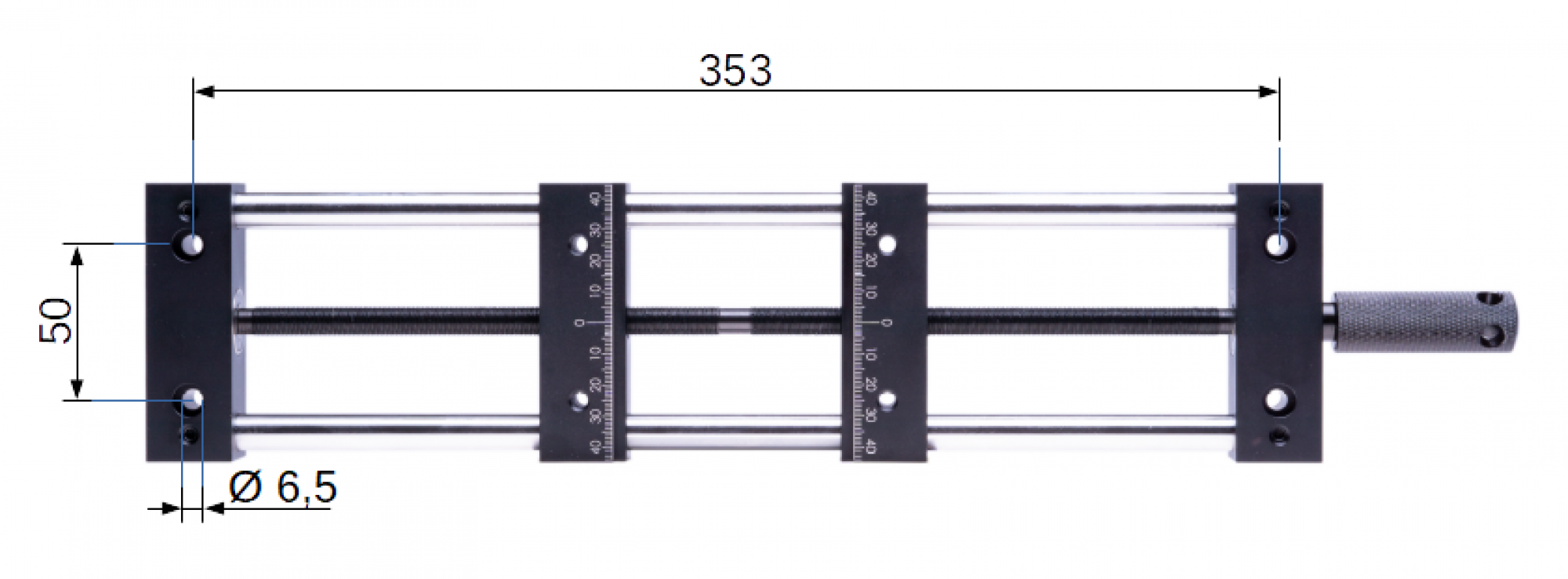

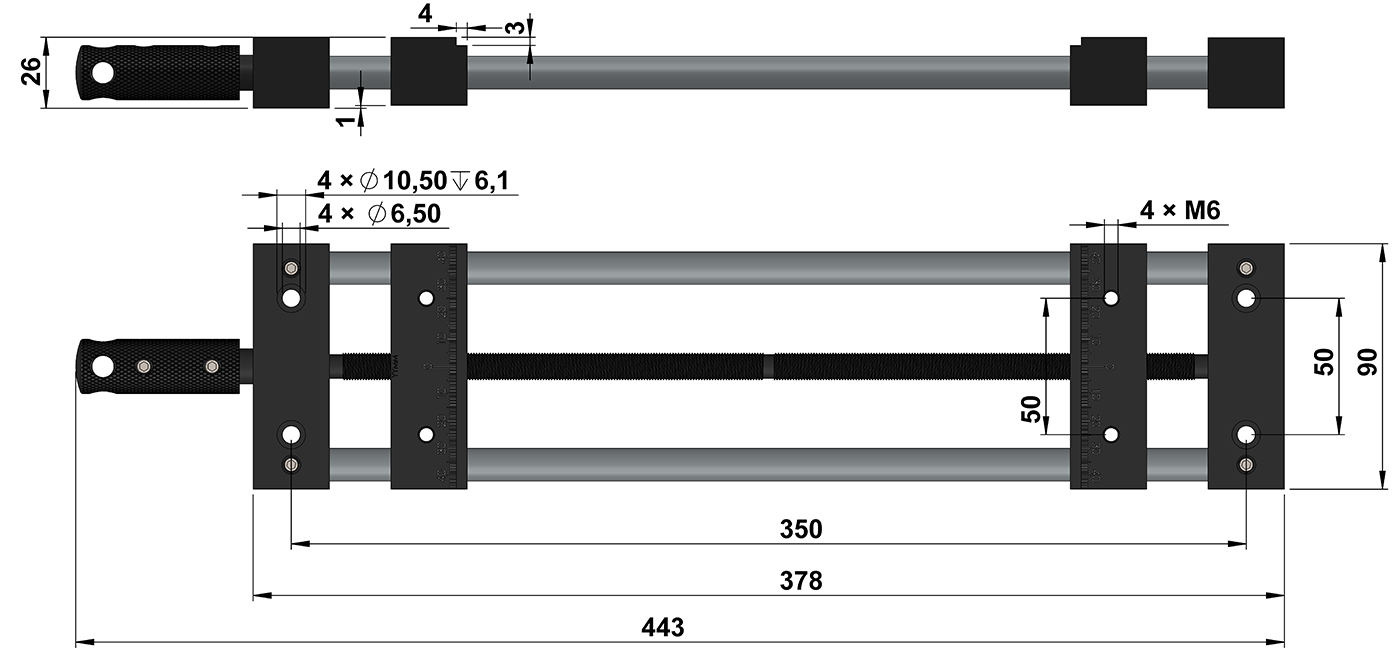

Length without rotary knob: 378 mm
Length with rotary knob: 443 mm
Width: 90 mm
Clamping range max.: 266 mm
Weight: 2000 g
Characteristics:
- Self-centering
- Three double row angular contact ball bearings to support larger axial forces
- Two round precision guide rails 12 mm, secured with clamping groove
- POM plain bearings for low clamping resistance
- Laser engraved ruler on the clamping jaws for fast work piece positioning
- Threaded spindle made of material with increased tensile strength
- Fine thread M10 x 1 for increased clamping force
- 50 mm clamping grid on length, 60 ... 120 mm on width (depending on model)
- MS1 and MS2 have slotted holes for individual positioning
- Aluminium parts black anodized
- Can be combined, convertible from MS1 and MS12 to MS2 and MS11
