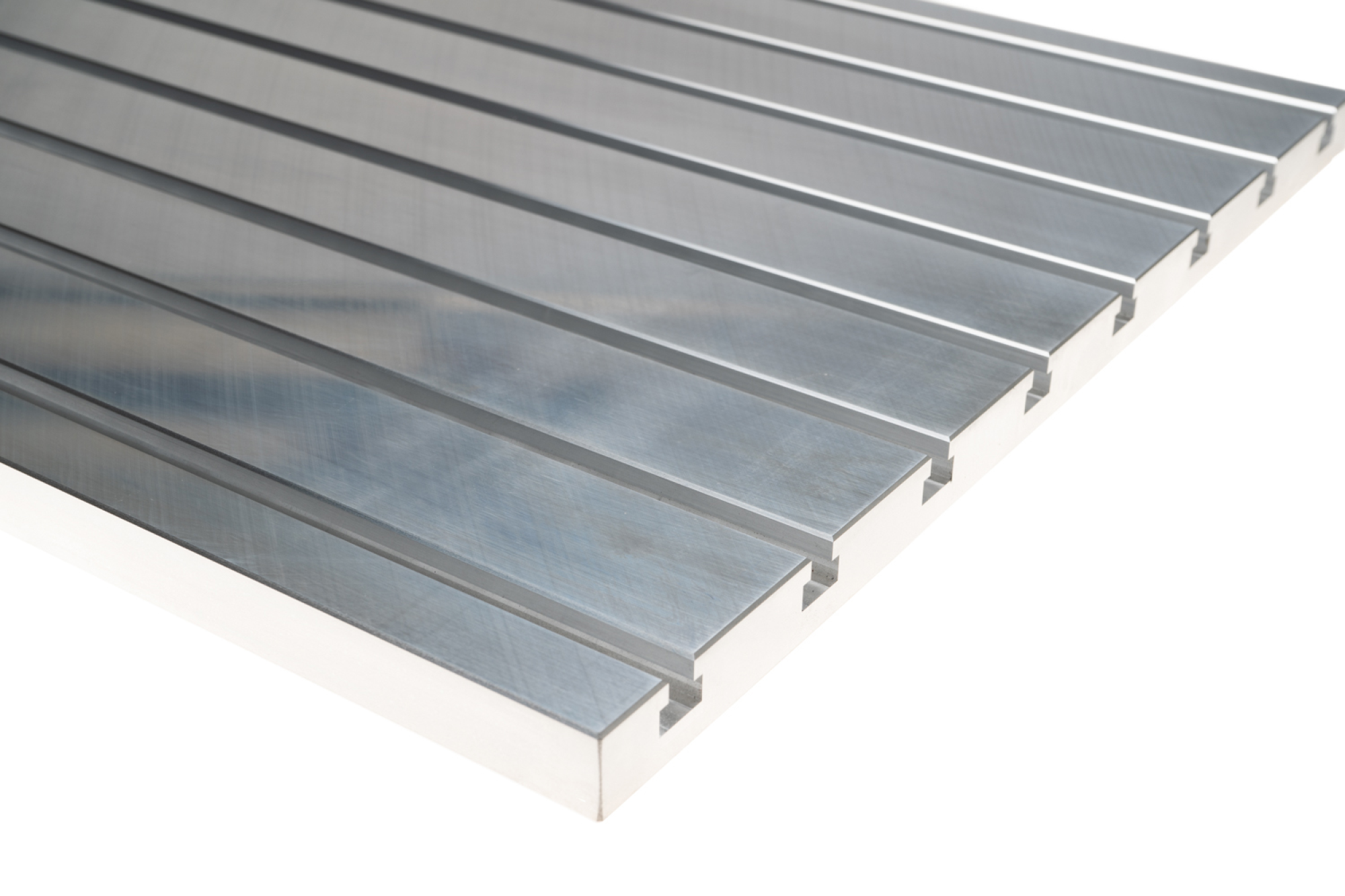

Cast aluminum T-slot plate 7020
Cast aluminum T-slot plate 7020

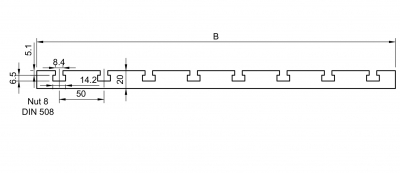

The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table /frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.Technical Data:
- made for T-Slot nuts according to DIN508
- Tolerance/Precision: +/- 0.01 mm /200 mm
- L = 700 mm
- B = 200 mm
- H = 20 mm
