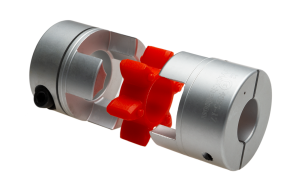

Claw coupling Ø 25 mm

These high quality claw couplings made of anodized aluminum are characterized by a small size and light weight. The three claws ease a simple and rapid centering when mounting.

Specifications:
  • Hole D1 mm / D2 mm
  • Length L1
  • Continuous torque: 5 Nm
  • Peak torque: 10 Nm
  • max. rotation Speed: 15,000 rpm
  • Weight: approx. 30 g
  Datasheet


Product Safety

Manufacturer:
Sorotec GmbH
77836 Rheinmünster
Germany

Phone: +49 (0)7227-994255-0
Telefax: +49 (0)7227-994255-9
E-Mail: sorotec@sorotec.de
Website: www.sorotec.de

Authorized representative for the EU:
Sorotec GmbH
77836 Rheinmünster
Germany

Phone: +49 (0)7227-994255-0
Telefax: +49 (0)7227-994255-9
E-Mail: sorotec@sorotec.de
Website: www.sorotec.de


Art.-No. D1
(mm)		 D2
(mm)		 L1
(mm)		 Ø
(mm)		 Price
Products to cart
MZK.060.060.V25 6 (mm) 6 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.060.063.V25 6 (mm) 6.35 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.060.080.V25 6 (mm) 8 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.060.100.V25 6 (mm) 10 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.063.063.V25 6.35 (mm) 6.35 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.063.080.V25 6.35 (mm) 8 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.063.100.V25 6.35 (mm) 10 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.080.080.V25 8 (mm) 8 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.080.100.V25 8 (mm) 10 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days
MZK.100.100.V25 10 (mm) 10 (mm) 32 (mm) 25 (mm) 16,90 EUR immediately available, 2-3 Days

Products to cart
1 to 10 (from a total of 10)
