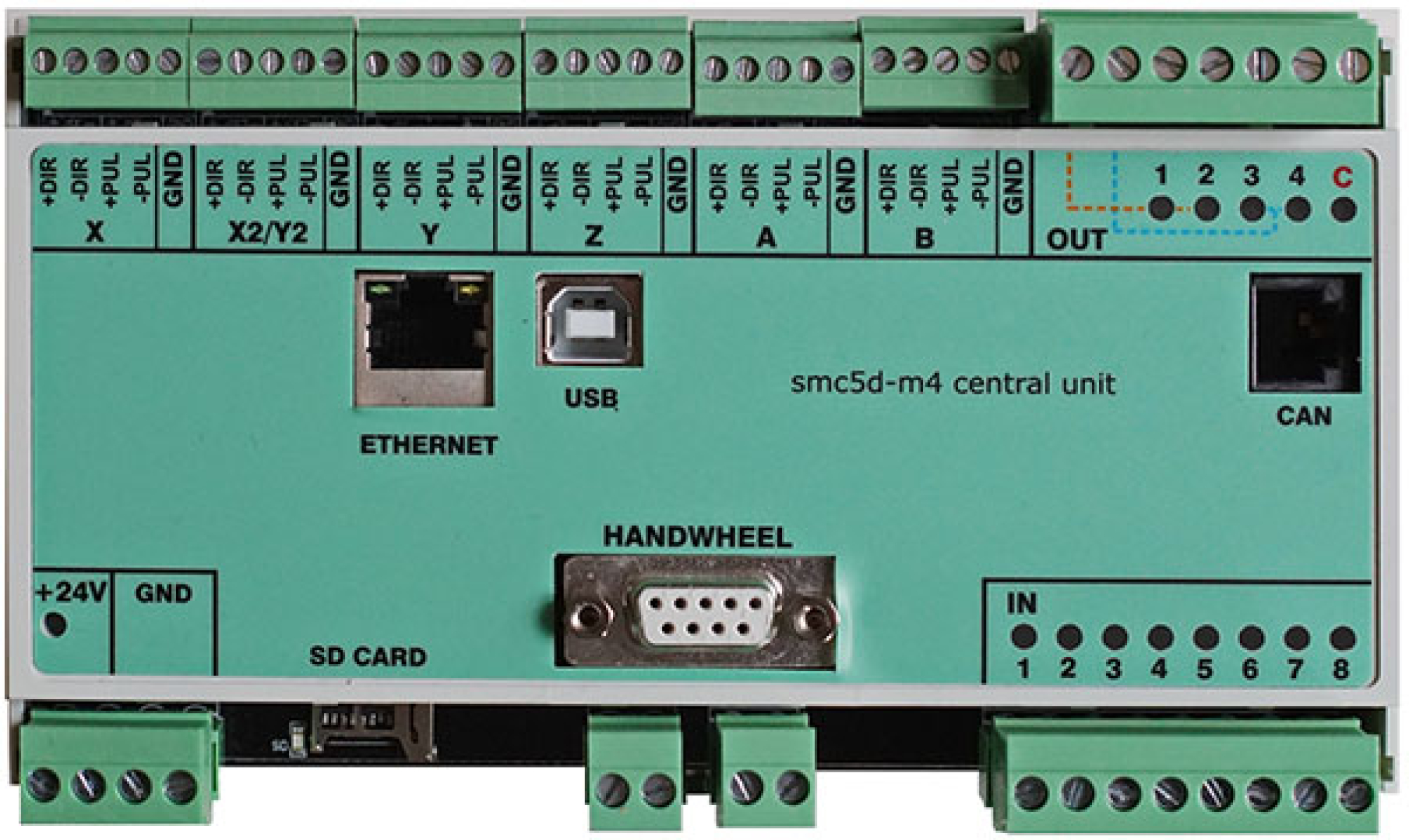

SMC5D-m4 pro
The controller smc5d-m4 pro is based on a 32 bit ARM NXP4337 M4 microcontroller with 204 MHz. Fast data exchange with the computer is guaranteed via LAN or USB 2.0 interface (compatible with USB 3.0). The controller is powered by an external power source.
Technical specifications
- In housing for the control cabinet with top hat rail
- Power supply 24 volts
- Clock and direction signals up to 300 kHz
- Step frequency as a differential signal for maximum immunity
- Interpolated trips up to 5 axes + double drive X2 / Y2
- 8 optically isolated inputs and 4 relay outputs with LED display
- Communication via Ethernet (LAN) or USB 2.0 (compatible with USB 3.0)
- RS485 or CAN connection for handwheel / joystick
- Micro SD card slot
- CAN communication between the modules
- Up to six I / O modules and up to four DAC modules can be connected

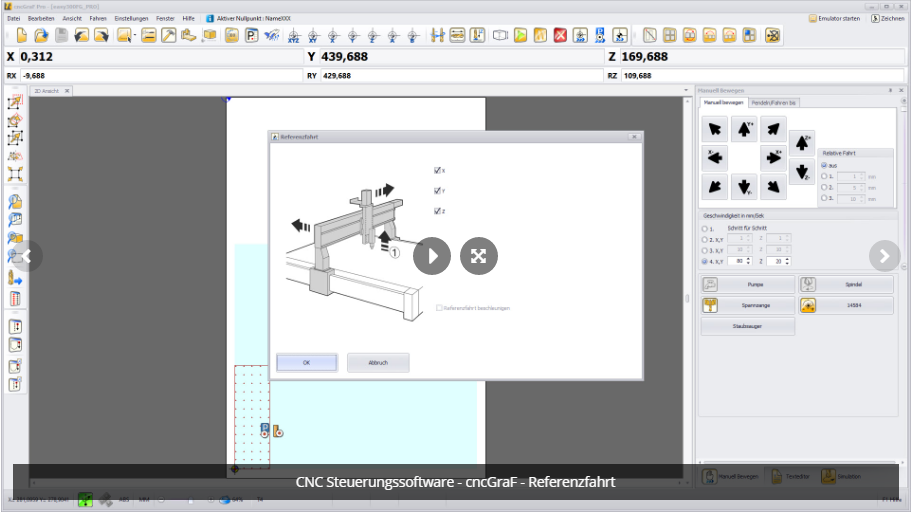

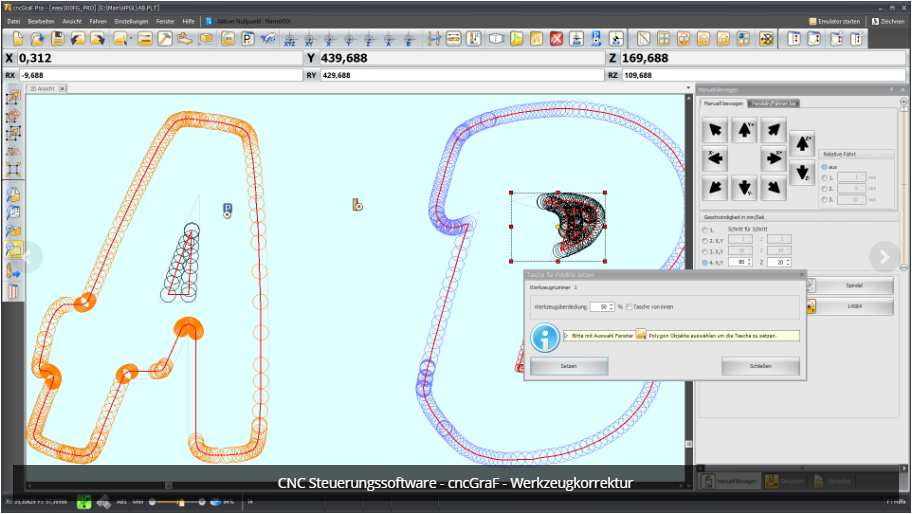

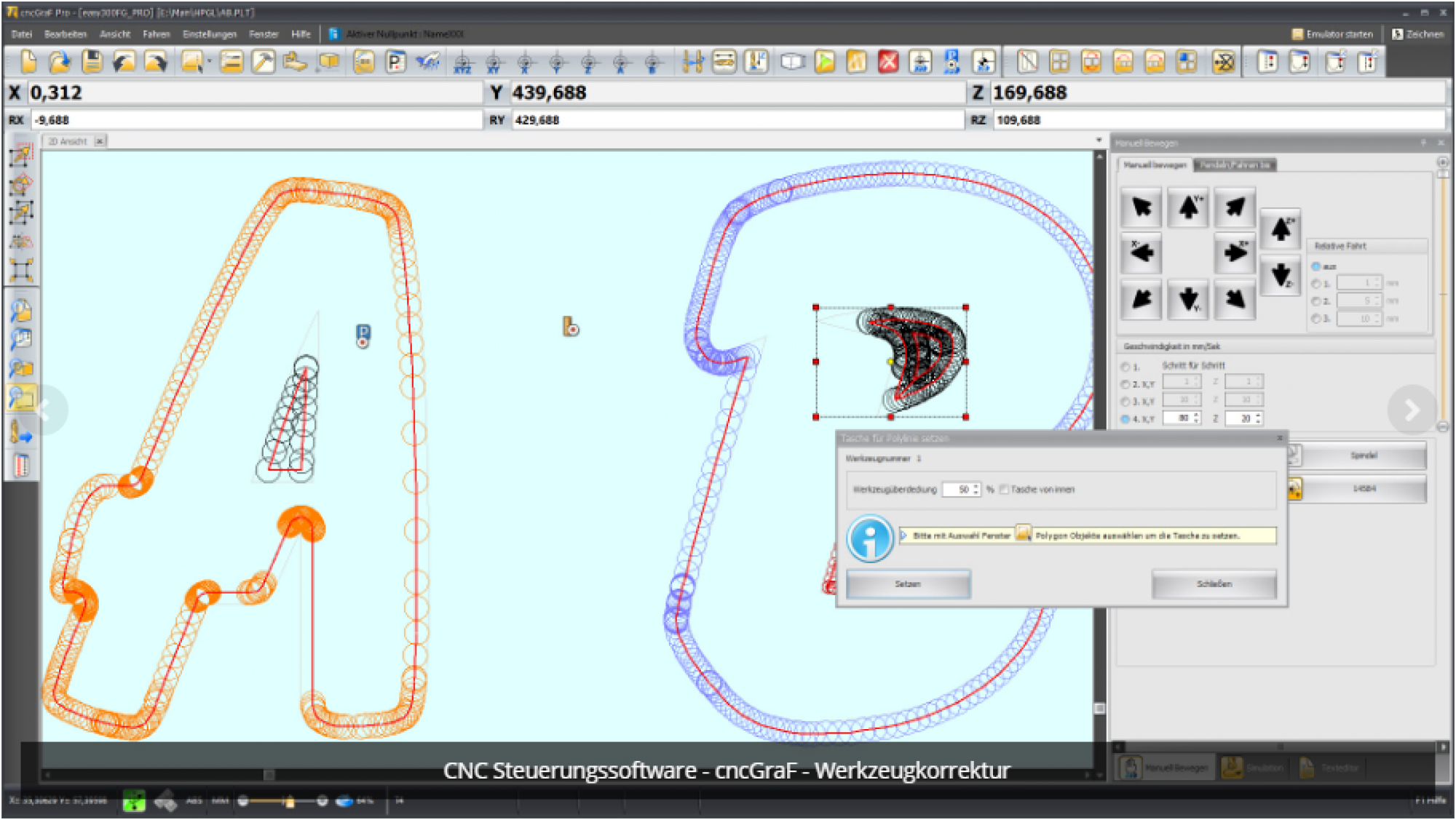

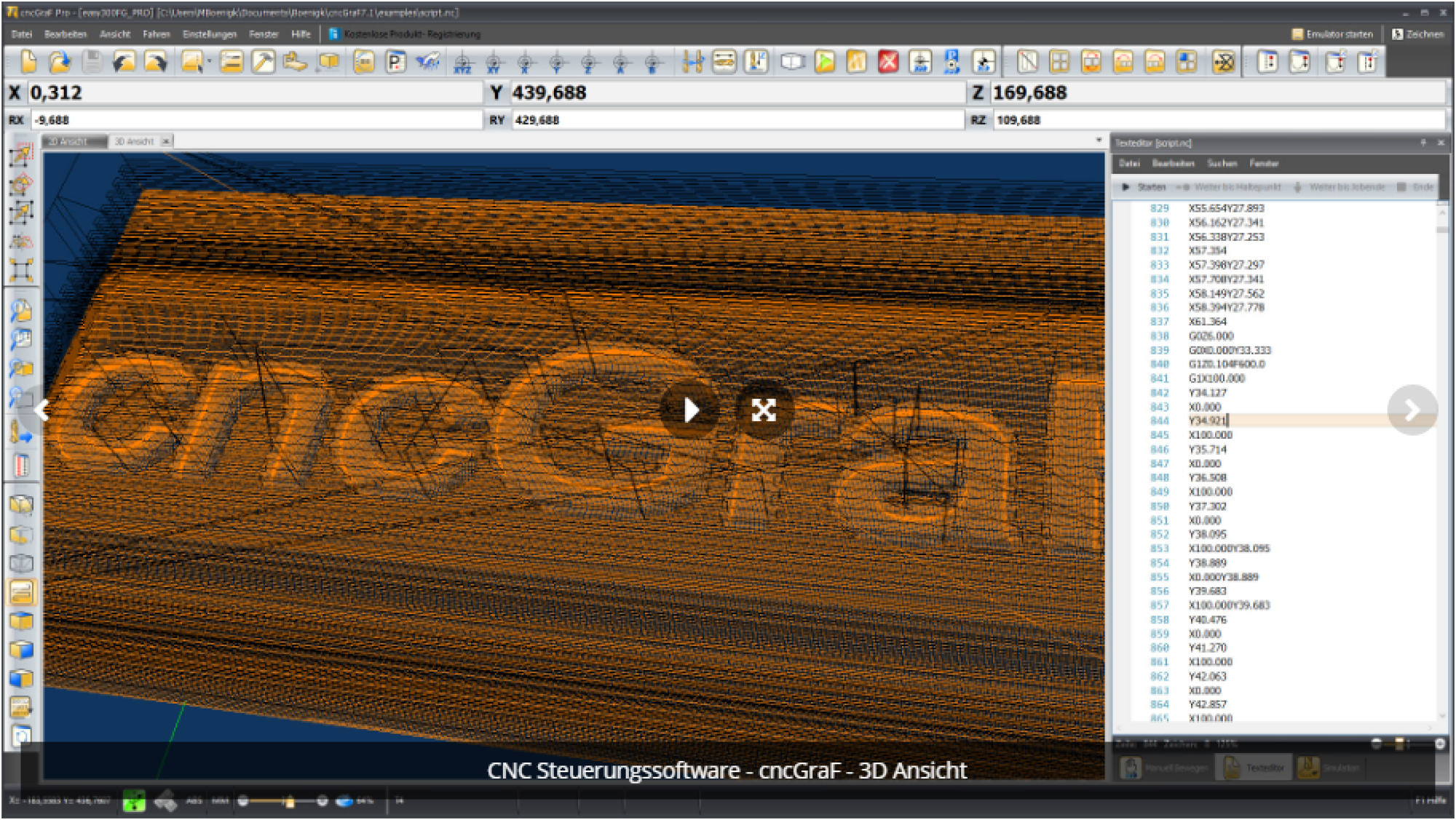

- Requires at least cncGraF v7.1 Pro (free download)
