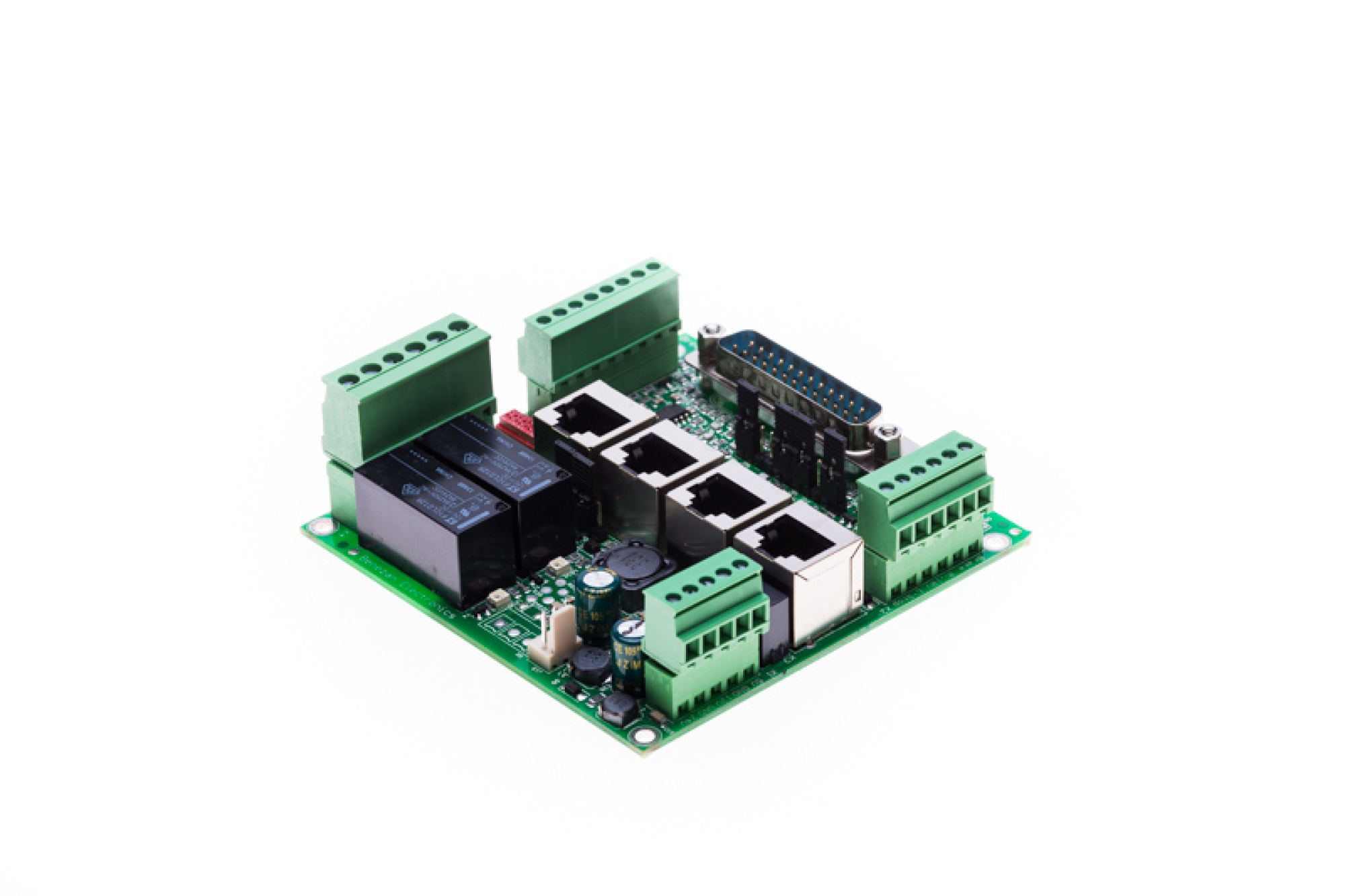

Breakout Board Advanced PRO
Interface Advance PRO
With charge pump and VFD output.
Technische specifications:
- Breakout board for up to four Stepping drives or UHU servo amlifiers
- one SUBD25 connector for LPT port cable
- for use with Mach3 or similar CNC software (not included)
- 4 RJ45 sockets for patch cables to Stepping drives or UHU(please order seperately)
- 4 inputs for home switches (mechanical or proximity switches), one e-stop input
- two relays for spindle and coolant motor
- watchdog (charge pump) avoids unexpected movements during booting
- analogue output 0 ...10 V for variable frequency drive (spindel speed)
- Optional additional relay for Z axis holding brake
- suports current reduction and error signals of BEAST and UHU drives
- all in- and outputs buffered and filtered, high noise immunity
- 15 ... 55 V supply input
- 12 V and 5 V output for fan or external devices
Important:
For the operation of the current Version of the Interface with EDINGCNC an adaptation board is needed.
This can be found here.
Anleitung Interface Advanced Pro (DE)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
