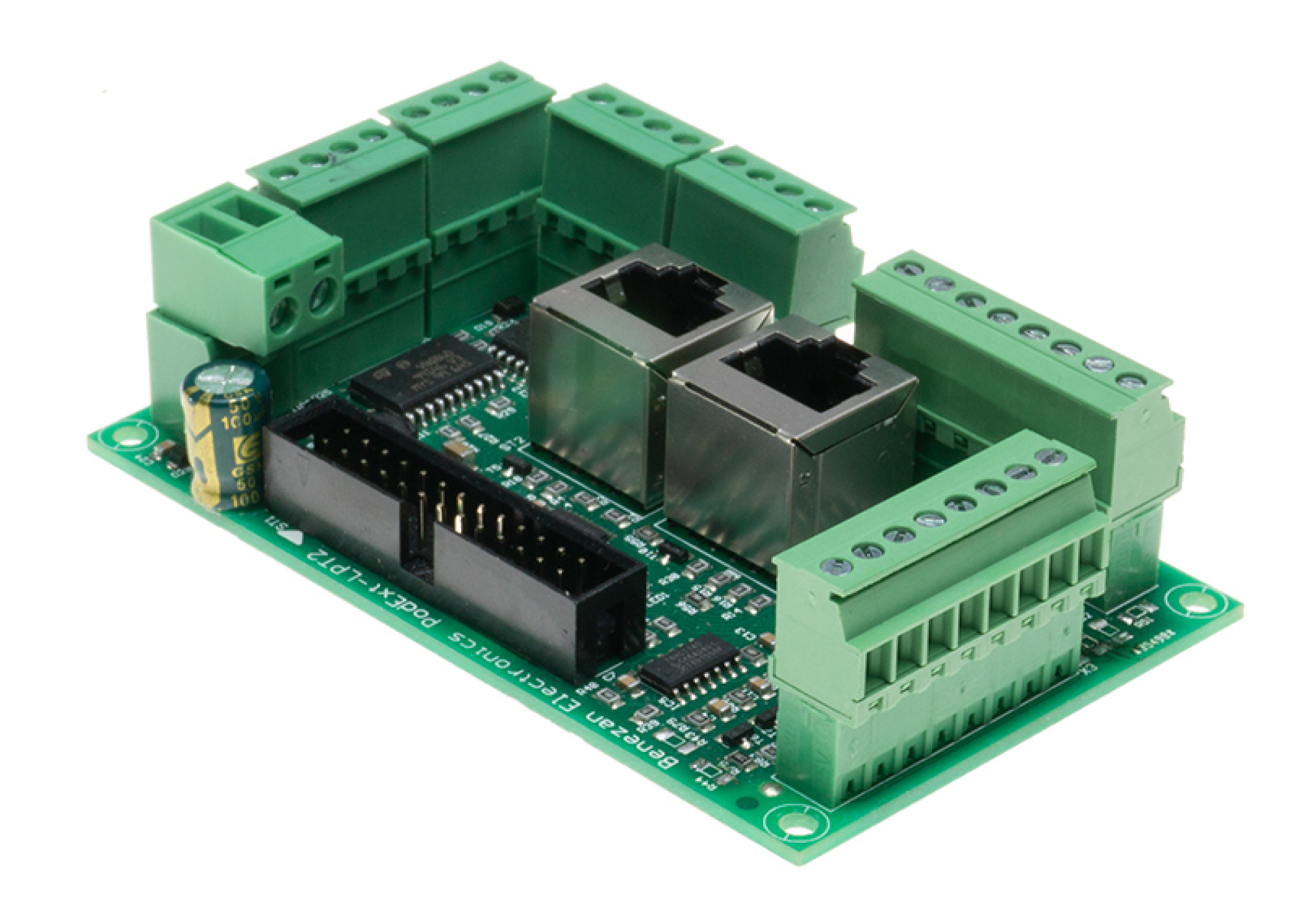

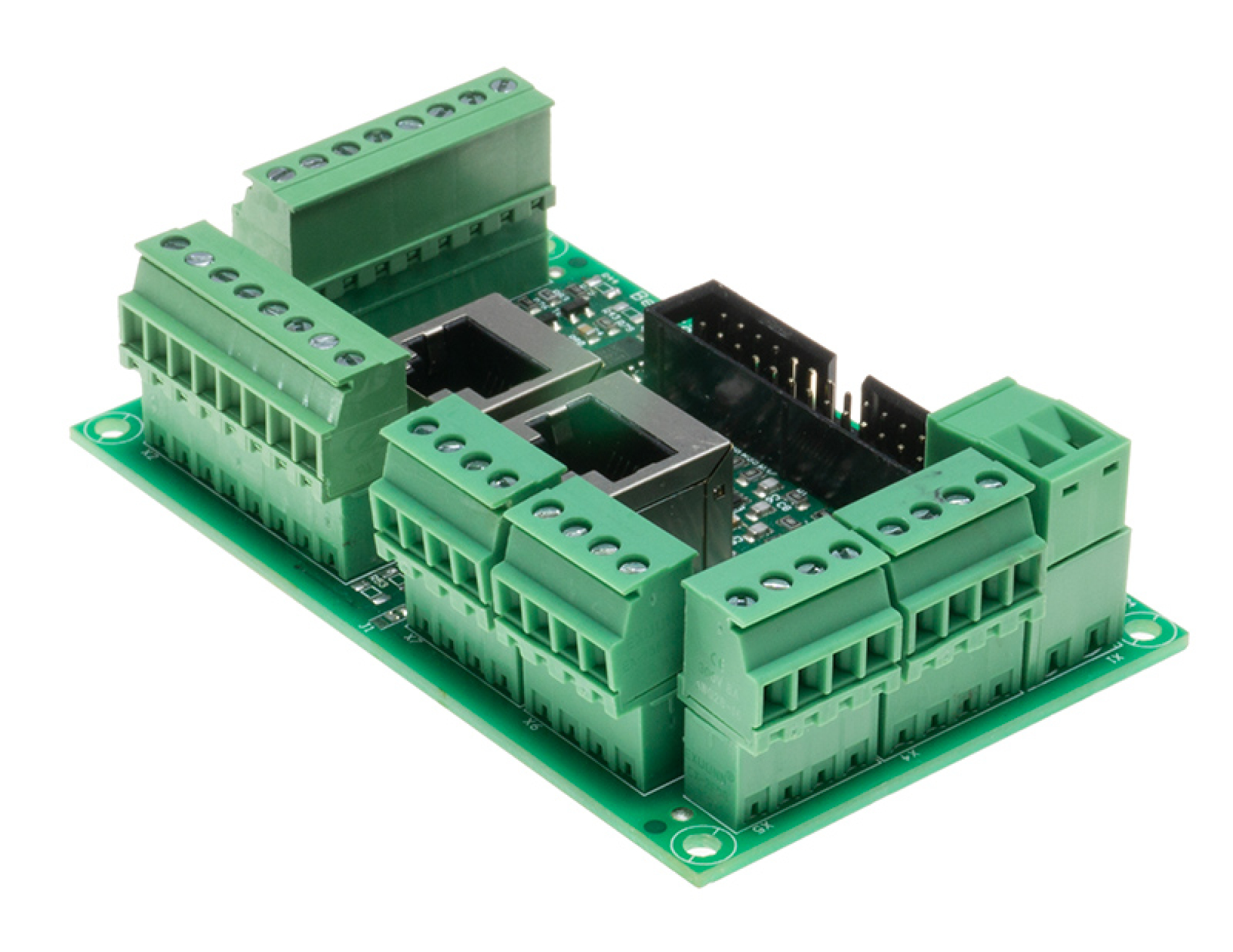

Beamicon2 extension board for CNCPOD LPT2
Beamicon2 PodExt
I/O Extension for Beamicon2 CncPod
The IO extension provides additional inputs and outputs for the Beamicon2 CNC control. The module is connected to the second port of the CncPod using a flat-band cable. Together with the 4 axes of the breakout board (first port), up to six axes (stepper or servo motor drives) can then be controlled. The expansion provides up to eight additional outputs and eight 24V inputs that can be used for sensors (e.g., proximity switches) and actuators (e.g., relays and pneumatic valves).

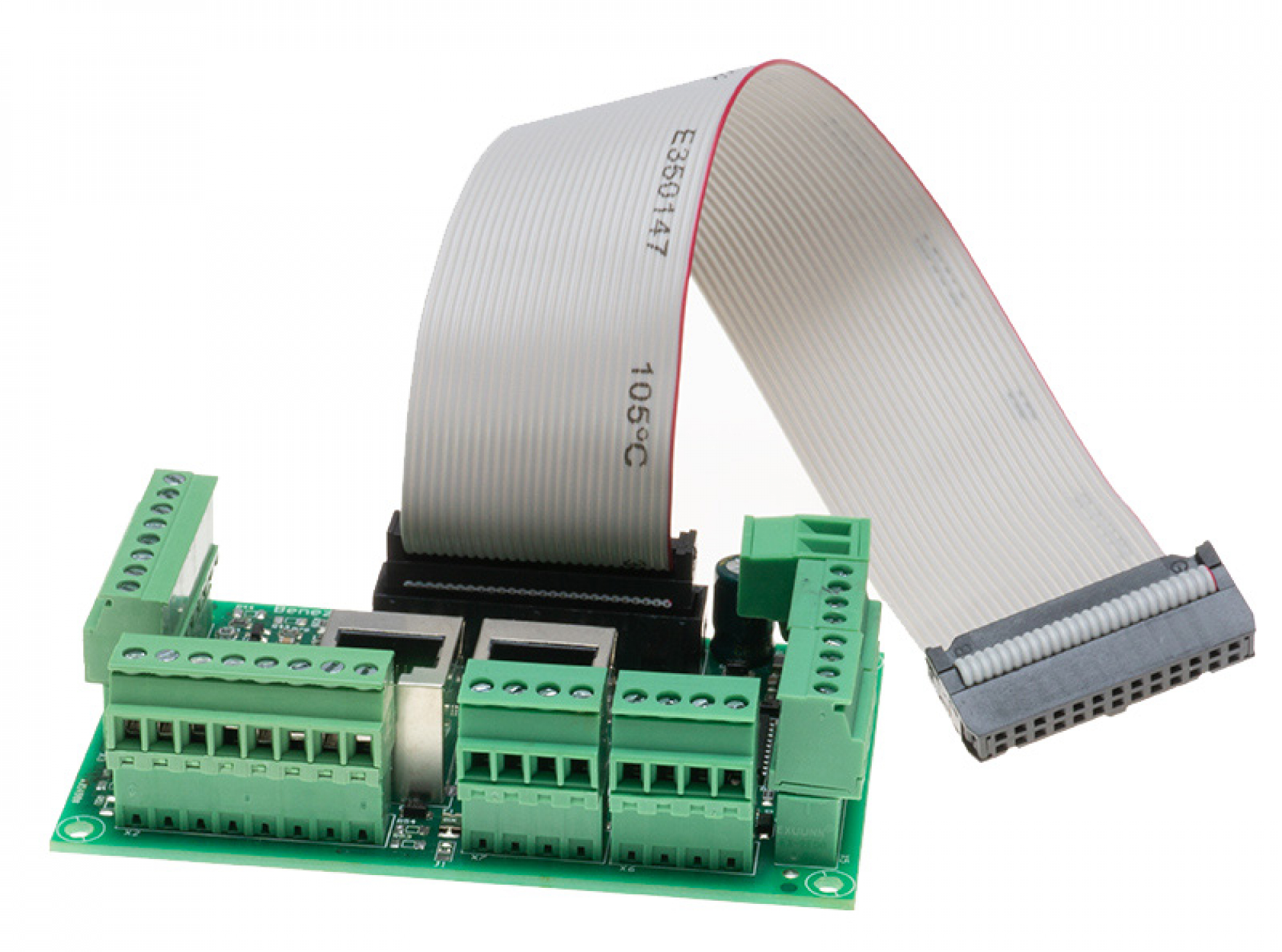

Ribbon cable inclusive.
Installation Manual (german)
