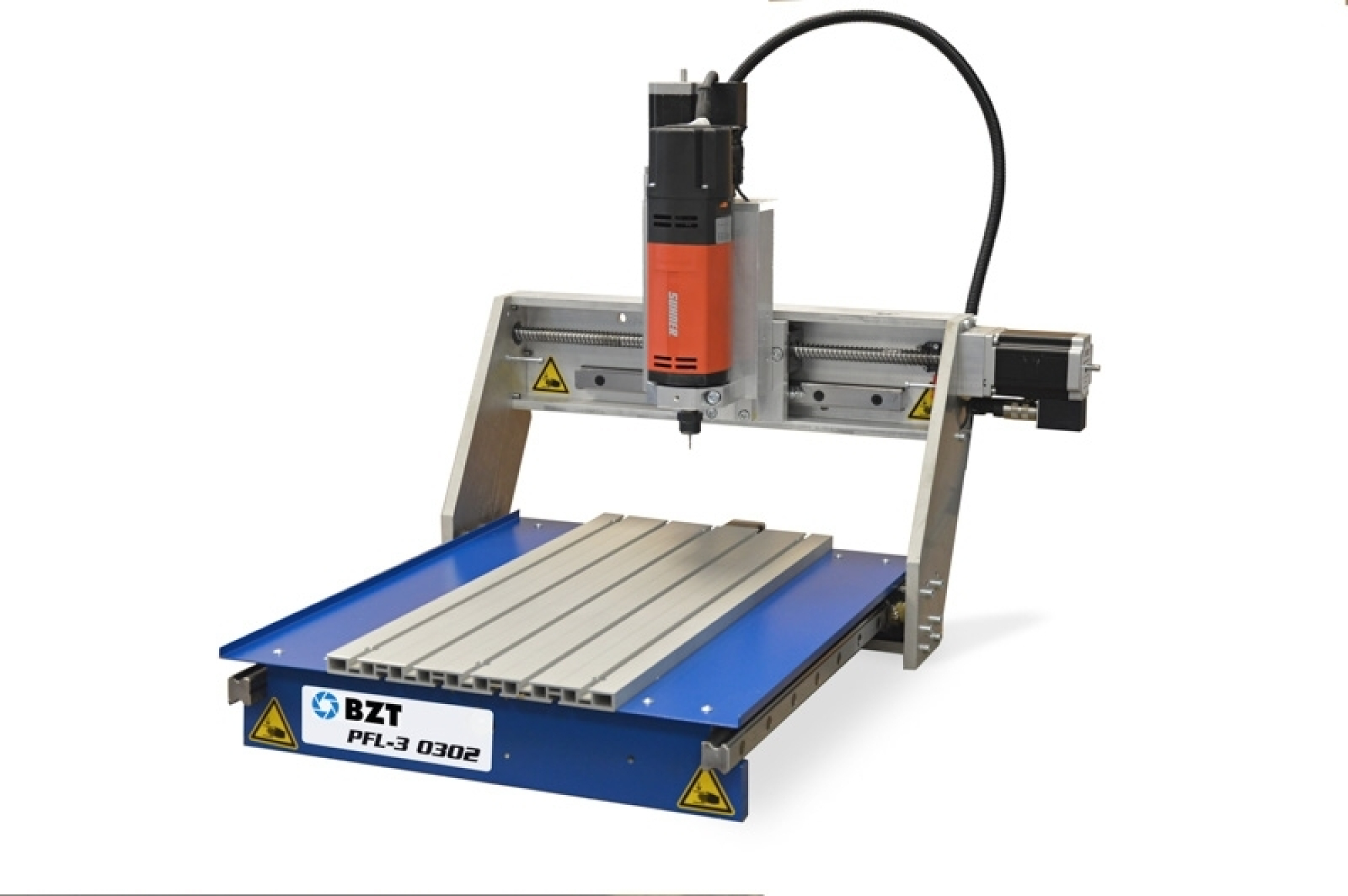

BZT-PFL-3-0604

Everyone has to start somewhere! For all of you how search the ideal entry into the world of CNC Gantry Milling we now have the BZT PFL-3 series developed.

specifications

• ball screw spindle for all axis
• stepper motors 4 Ampere 3N
• T-Slotplate 15 mm inclusive
• covered linear guide
• Front- /Endplate made of Steal
• Clamping area X | Y ca.500 | 1060 mm
• Processing area X | Y | Z ca. 520 | 760 | 100 mm
• Dimensions ca.1240 x 1280 x 520 mm
• Drive stepper motors  4 Amp. 3 N
• Rapid traverse speed up to 5.000 mm/min.
• ball screw spindle X | Y = 16 x 10 mm, Z = 16 x 5 mm
• linear guide X | Y = 25 mm, Z = 15 mm
• Alu T-Slotplate 15 mm (inclusive)
• spindle useable up to 1 kW (not inclusive)
• Front- /Endplate Steal
• X-/ Z-Axis Aluminium
