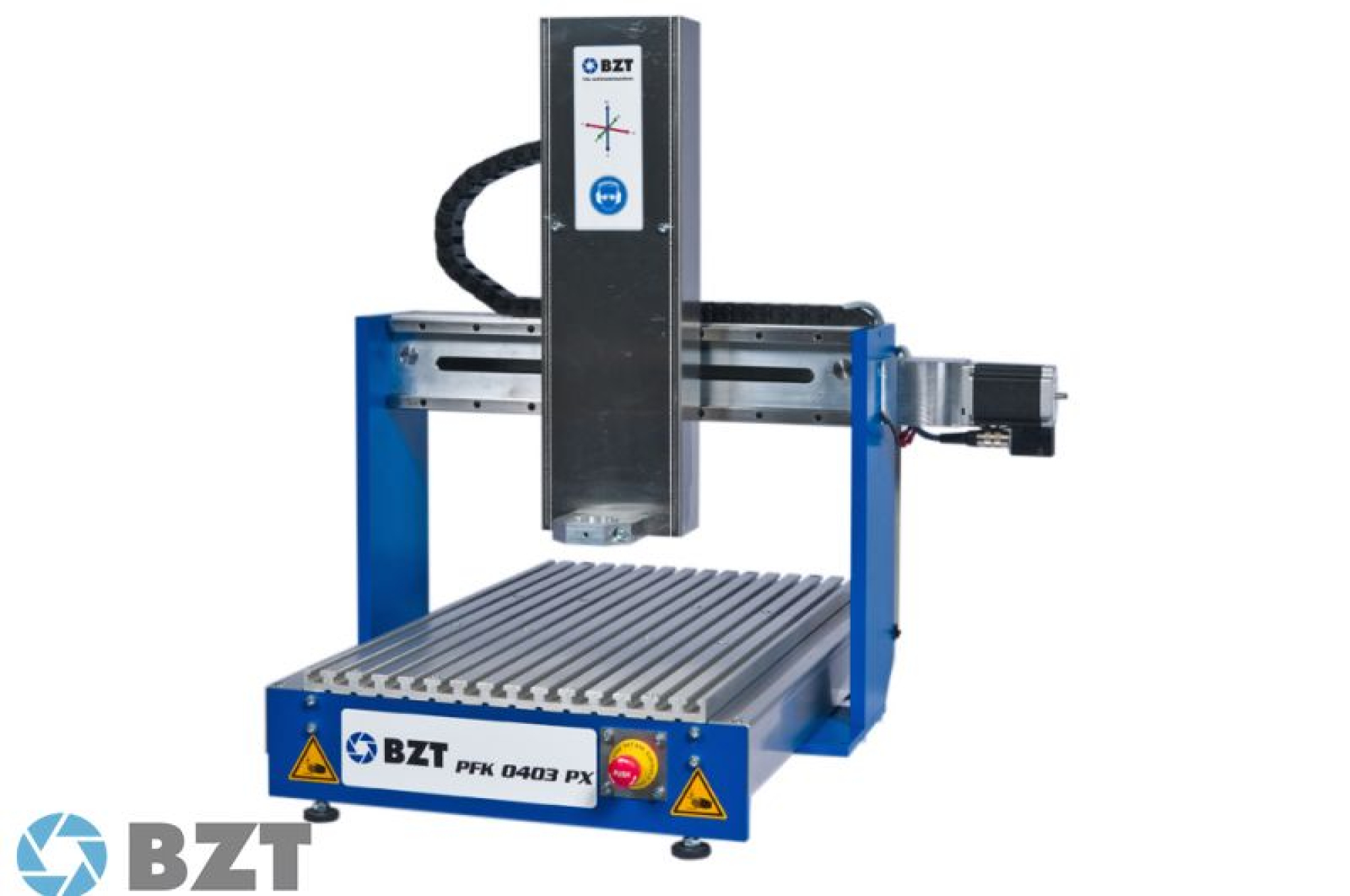

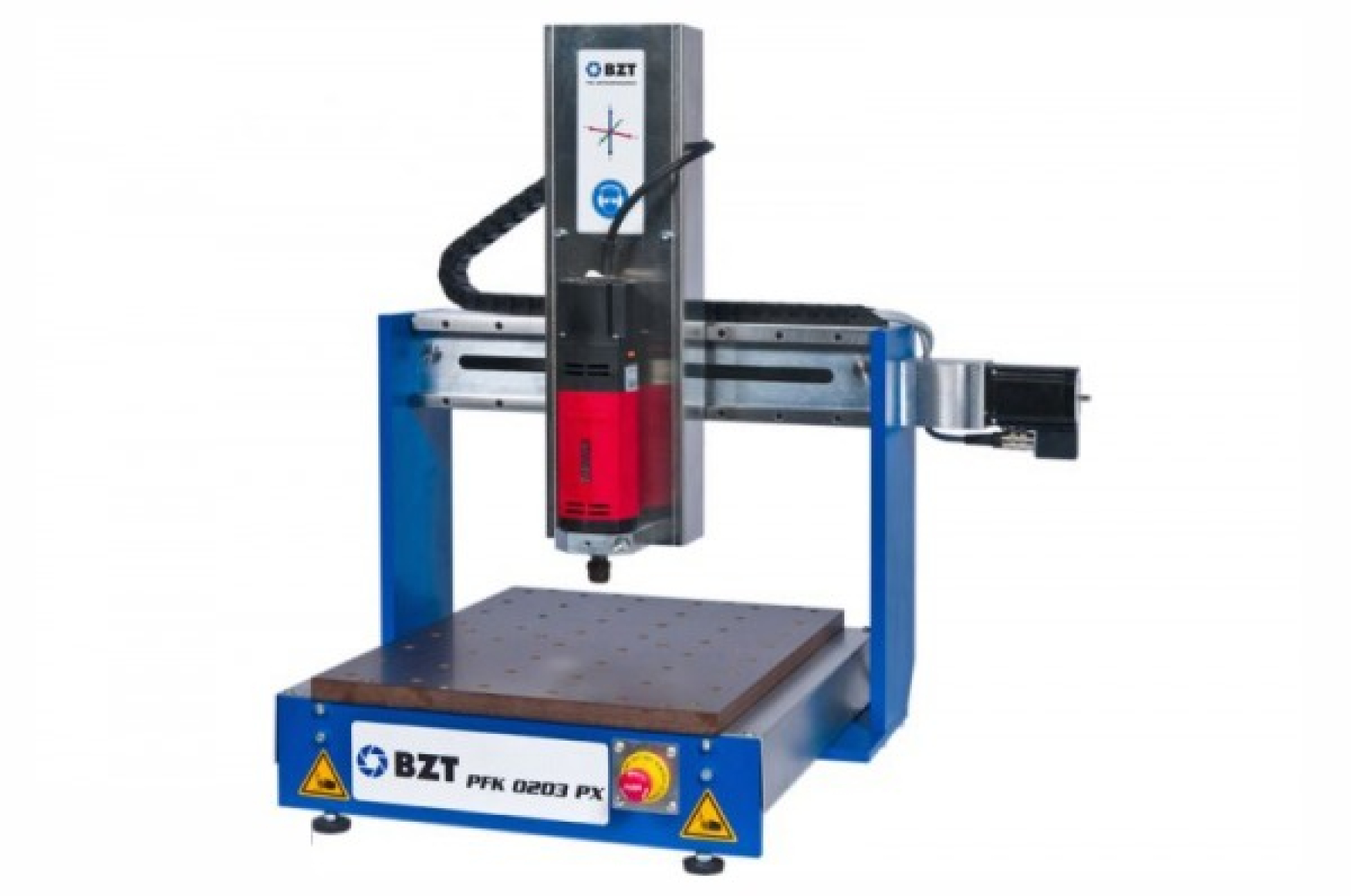

BZT-PFK-0403-PX

The compact PFK machines have been developed for the semi-professional,
industrial user, espacially for milling, engraving and the manufacturing of prototypes. Thanks to the dimension of the PFK series it is also ideal for working at small workplaces. The filigree and accurate processing of your parts is guaranteed by the linear guidings of Bosch and ball screw spindles built in all axes. The PFK can be used espacially for small parts such as jewelry.

Technics

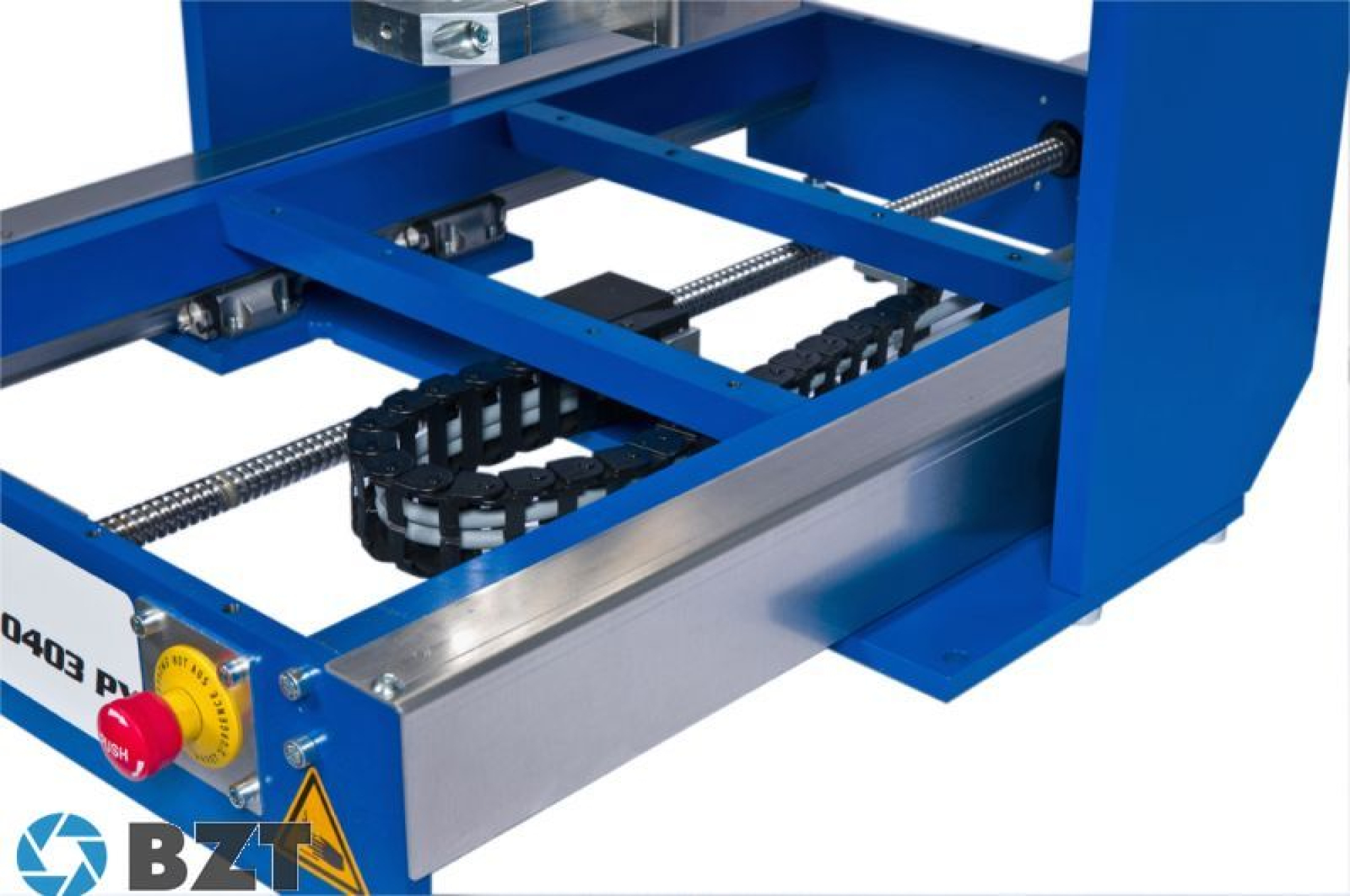

• Ball screw spindles in all axis

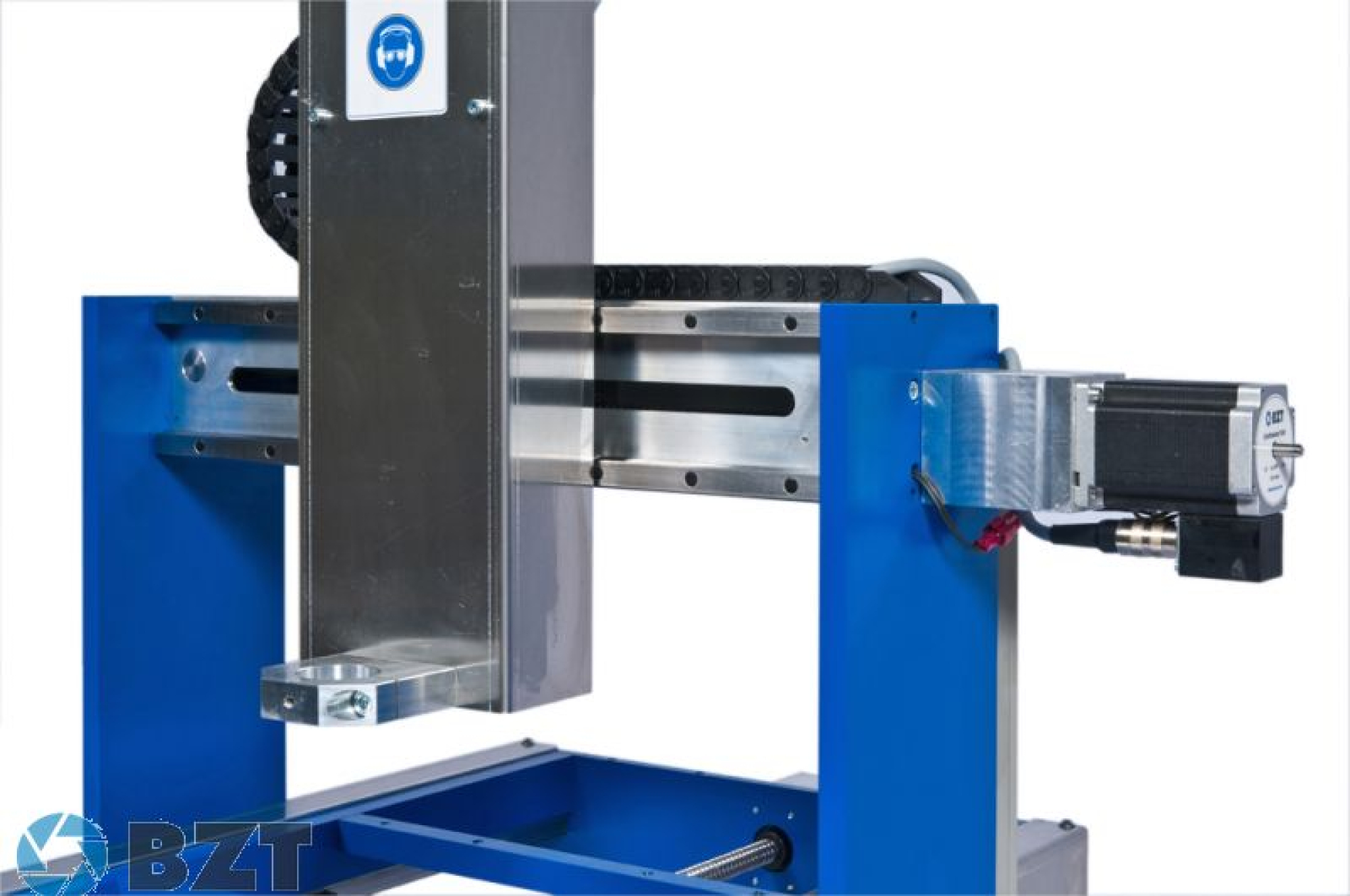

• Linear guidings an carriages of Bosch
• Deliverable with step motor or AC-servo motor
• Stable steel construction

Secial features

• Ideal for prototyping, jewelry design
• Particularly suitable for long and narrow parts such as wings
• Small required space

• Drive: 3 brand stepper motors 4.2 Amp
• Programmable resolution: 0.0025 mm
• Repeatability: ca + / - 0.02 to 0.03 mm (on fixed bearing side)
• Maximum Backlash: about 0.04 mm (using software adjustable to 0.000 mm)
• Linear guidings: cut X-and Y-axis and surface-hardened
• Spindles: 16 mm ball screw spindles
• Rapid traverse speed: 8000 mm / min
• Maximum operating speed: 4000 mm / min
• reference switch on all axes
• Clamping area: X = 375 x Y= 670 mm
• Processing area: X = 350 mm Y = 450 mm Z = 135 mm
• Passing height under Portal: 220 mm
• Passing height under Z-axis: about 205 mm
• Overall dimensions with motors: L x W x H = 920 x 740 x 860 mm
• Mill motor mount: 43 mm
• Weight: 65kg
• Power Supply: 230 V / 50 Hz

• T-Slot Plate
• control
• vacuumtable
• z-axis 250mm distance
• available with stepper Motor, DC-Servomotor or AC-Servomotor
