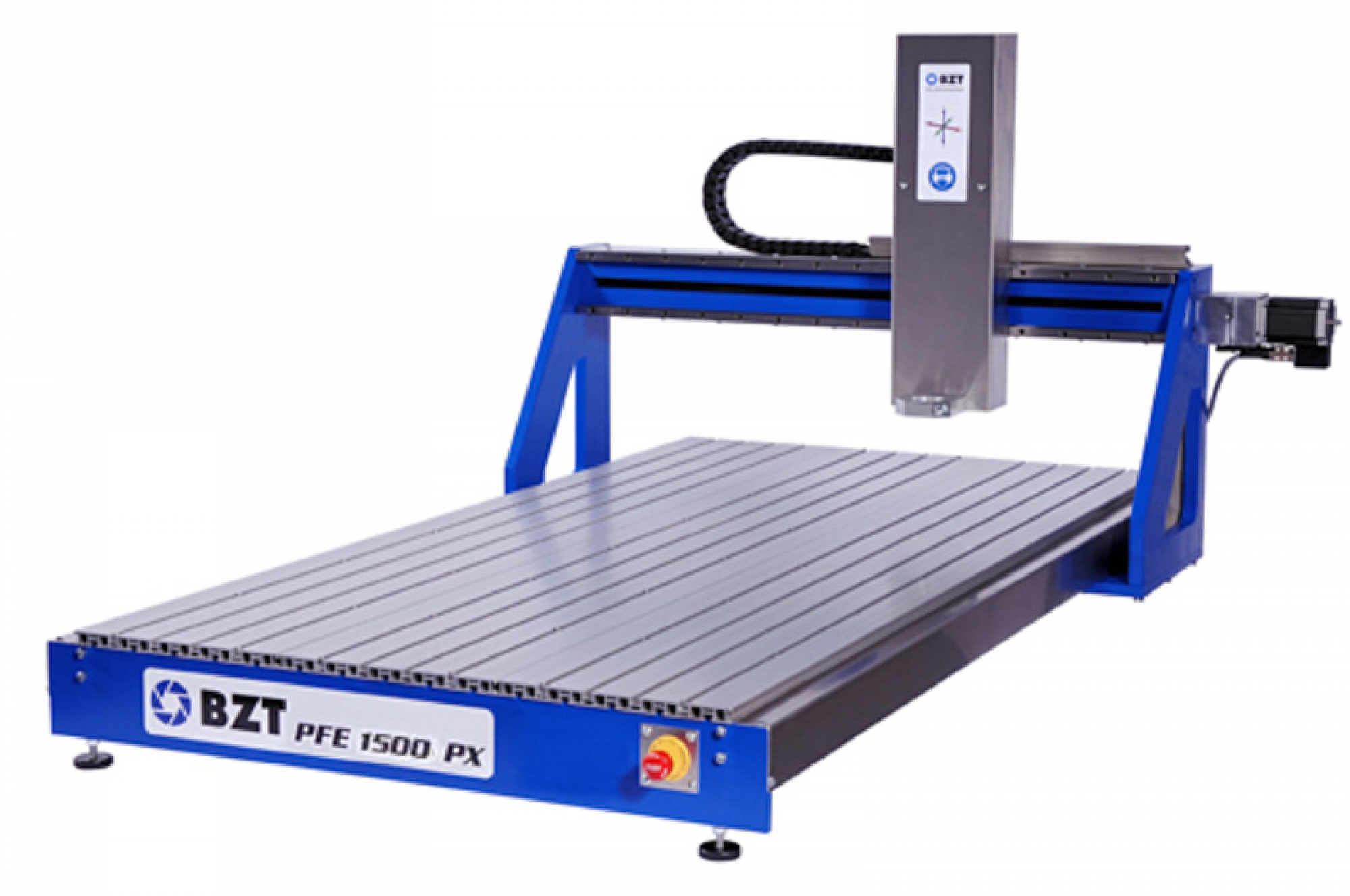

The PFE machines are the ideal way to start industrial production, especially developed for milling, engraving and the manufacturing of prototypes as well as for the advertising technics.
Linear guidings of Bosch and ball screw spindles in all axes ensure precise milling, the rugged steel construction ensures a vibration-free operation even at high speeds. In this price range the profitability and efficiency make the PFE to an absolute bestseller.
Technics
- Ball screw spindles in all axis
- Linear guidings an carriages of Bosch
- Deliverable with step or servo motor
- Stable steel construction
Special features
- Poor vibration steel construction
- Very economical
- Also ideal for advertising technology
- Drive: 3 brand stepper motors 4.2 Amp
- Programmable resolution: 0.0025 mm
- Repeatability: about + / - 0.01 mm (on fixed bearing side)
- Maximum Backlash: about 0.04 mm (using software adjustable to 0.000 mm)
- Linear guidings: X-and Y-axis ground and surface hardened
- Spindles: ball screw spindles 16 mm
- Rapid traverse speed: ca. 8000 mm / min
- Maximum operating speed: 4000 mm / min
- Reference switch on all axes
- Clamping area: X = 750 Y = 1915 mm
- Processing area:: : X = 720mm Y = 1550mm Z = 135mm
- Passing height under Portal: about 210 mm
- Passing height Z-axis: about 195 mm
- Overall dimensions with motors: LxWxH: approx 2300 x 1200 x 850 mm
- Mill motor mount: European Chucks of 43 mm
- Weight: 230kg
- Power supply: 230 V / 50 Hz
Optional
- T-slot
- control
- vacuum table
- portal increase Z-axis
- Available with stepper motor, DC motor or AC servo Motor
DatasheetManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
