BZT-PF1400-P - Ballscrew-spindles
BZT-PF1400-P - Ballscrew-spindles
BZT-PF1400-P - Ballscrew-spindles

BZT-PF1400-P - Ballscrew-spindles

Product No.:
MPF.PF1400P-B
Delivery time on request Delivery time on request  (abroad may vary)
Shipping weight:
65 kg per piece
3.442,67 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

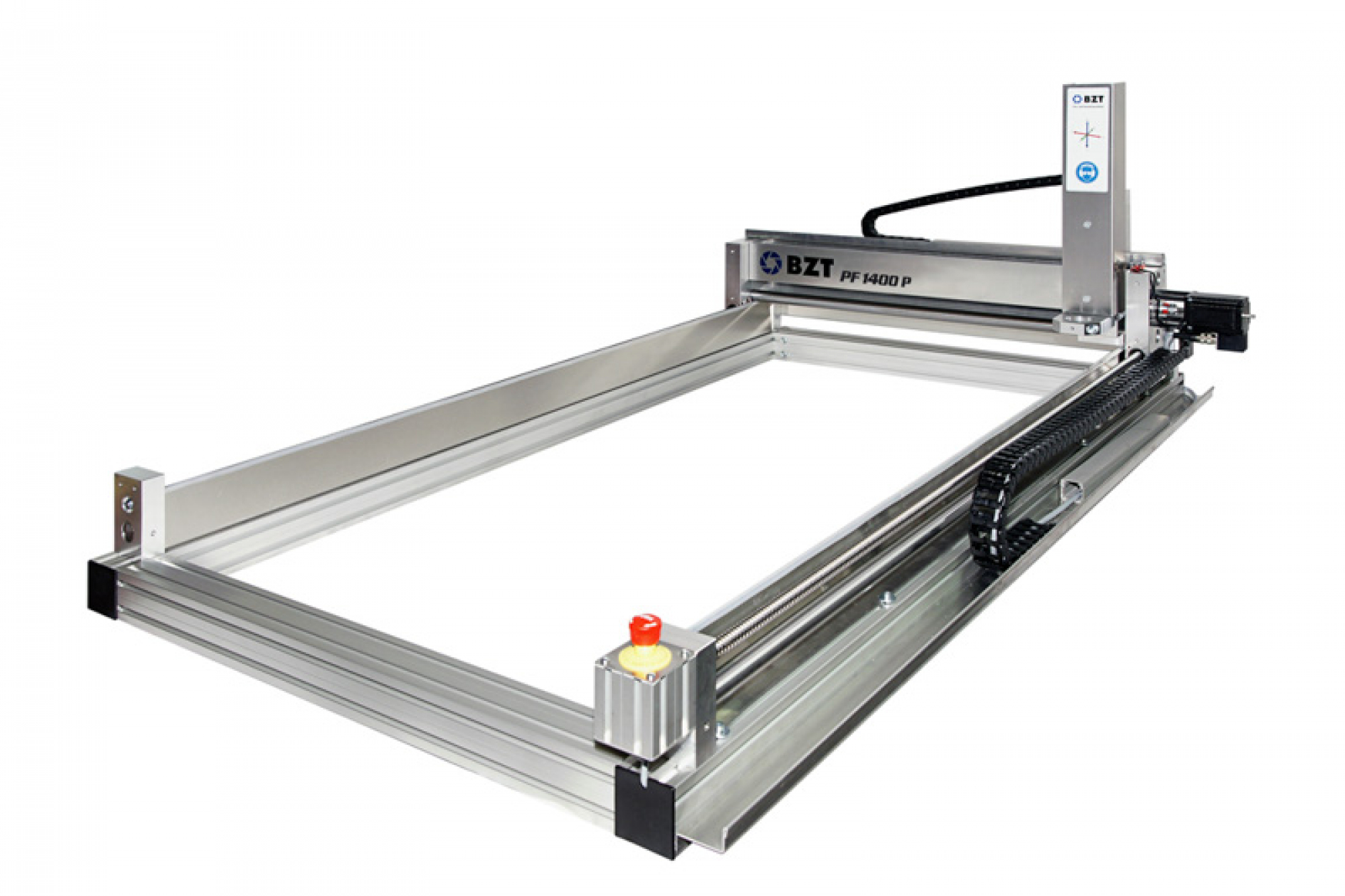

The ideal starter series for semi-professional use in stable frame construction. Compact table-top machine with high stiffness and low weight. An affordable solution for machining small to medium parts.
PF-P series: round guiding and 16 mm ball screw spindles in all axes – extraordinarily in this price range!
Both versions of each available with step motor.

Technics

  • 25 mm Round guiding
  • Stable C-construction in the Z-axis
  • KTR-couplings between step motor and spindles
  • Strong step motors

Special features

  • Downwardly open construction: can be placed on workpieces
  • Lightweight, portable
  • High operating comfort, ideal for beginners
  • Drive: 3 pieces branded 4.2 amp stepper motors
  • Programmable resolution: 0.0025 mm
  • Repeatability: ca.0, 02 to 0.03 mm (on fixed bearing side)
  • Maximum Backlash: ca.0, 05 mm (adjustable using software up to 0,000 mm)
  • Linear guidings: 25 mm grinded and with hardened surface
  • Spindles: 3-times ball bearing mounted ball screw spindles
  • Rapid traverse speed: ca. 8000 mm/min
  • Max working speed: ca. 4000 mm/min
  • reference switch on all axes
  • Clamping area: X = 750 mm x Y = 1400 mm
  • Processing area: X = 670 mm Y = 1295 mm Z = 110 mm
  • Working area: X = 660 mm Y = 1180 mm
  • Passing height: 130 mm
  • Overall dimensions with motors: ca. 1700 x 1030 x 610
  • Mill motor mount: European Chucks of 43 mm
  • Weight: 65 kg

Optional

  • Aluminum T-slot in 15 or 20 mm
  • frame
  • enclosure
Documentation

  Datasheet

Customer reviews (2)
The ratings were not checked before they were published. The reviews may come from consumers who have not purchased or used the good or service.
  • Visitor, 12/24/2022
    Overall, a nine machine but in my opinion, it can/should be improved without effecting the costprice.

    It would be nice that the X-Axis will be reinforced (up/down more stable) that the Z Hight will be correct under all circumstances. the instability seems to be caused by bending the guiding rods. I can easily move the z by hand.

    Another strange thing is the lowest Z position.
    This is a machine with an open frame is to work directly on a surface but how is this possible if the Z-Hight can't go down until 10 to 20mm from the collet by using a Kress 1050?

    Also, when you have a optional T slot table the router bit can't reaches the table height?

    Is there a reason for this since this will give a lot of limitations.     be reinforced (up/down more stable) that the Z Hight will be correct under all circumstances. the instability seems to be caused by bending the guiding rods. I can easily move the z by hand.

    Another strange thing is the lowest Z position.
    This is a machine with an open frame is to work directly on a surface but how is this possible if the Z-Hight can't go down until 10 to 20mm from the collet by using a Kress 1050?

    Also, when you have a optional T slot table the router bit can't reaches the table height?

    Is there a reason for this since this will give a lot of limitations.
    go to post
  • Visitor, 10/26/2018
    stable and reliable machine. accuracy around 0.02 mm. easy to clean and maintain. the standard holder does (in my machine wirh a suhner motor) not go low enough for tiny bits to reach the material the machine is placed upon. 4 cm lower would be enough. go low enough for tiny bits to reach the material the machine is placed upon. 4 cm lower would be enough.
    go to post
