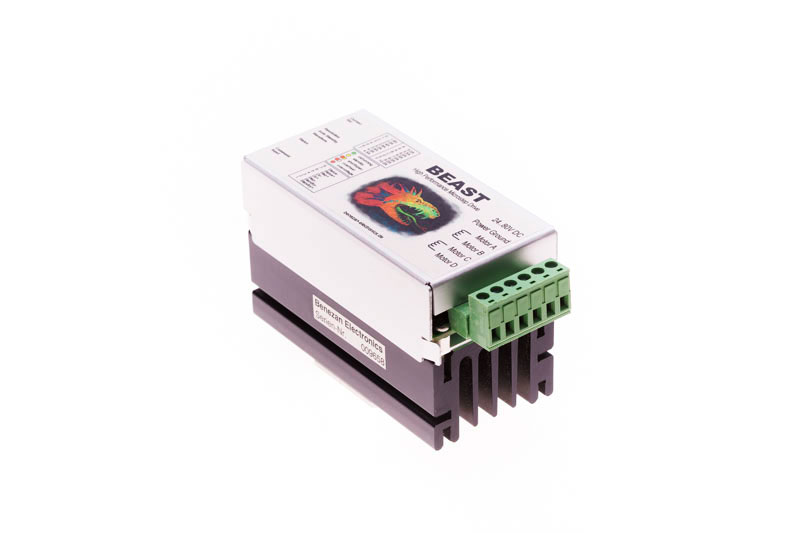

BEAST High Power Stepper Driver
BEAST High Power Stepper Driver
Technical Specifications:
- Microstepping (1/10) with true sine wave commutation for extreme smooth run of Stepping motor
- Phase current precisly adjustable from 1.8 to 10A with rotary switches
- Supply voltage from 24 to 80V for high dynamics

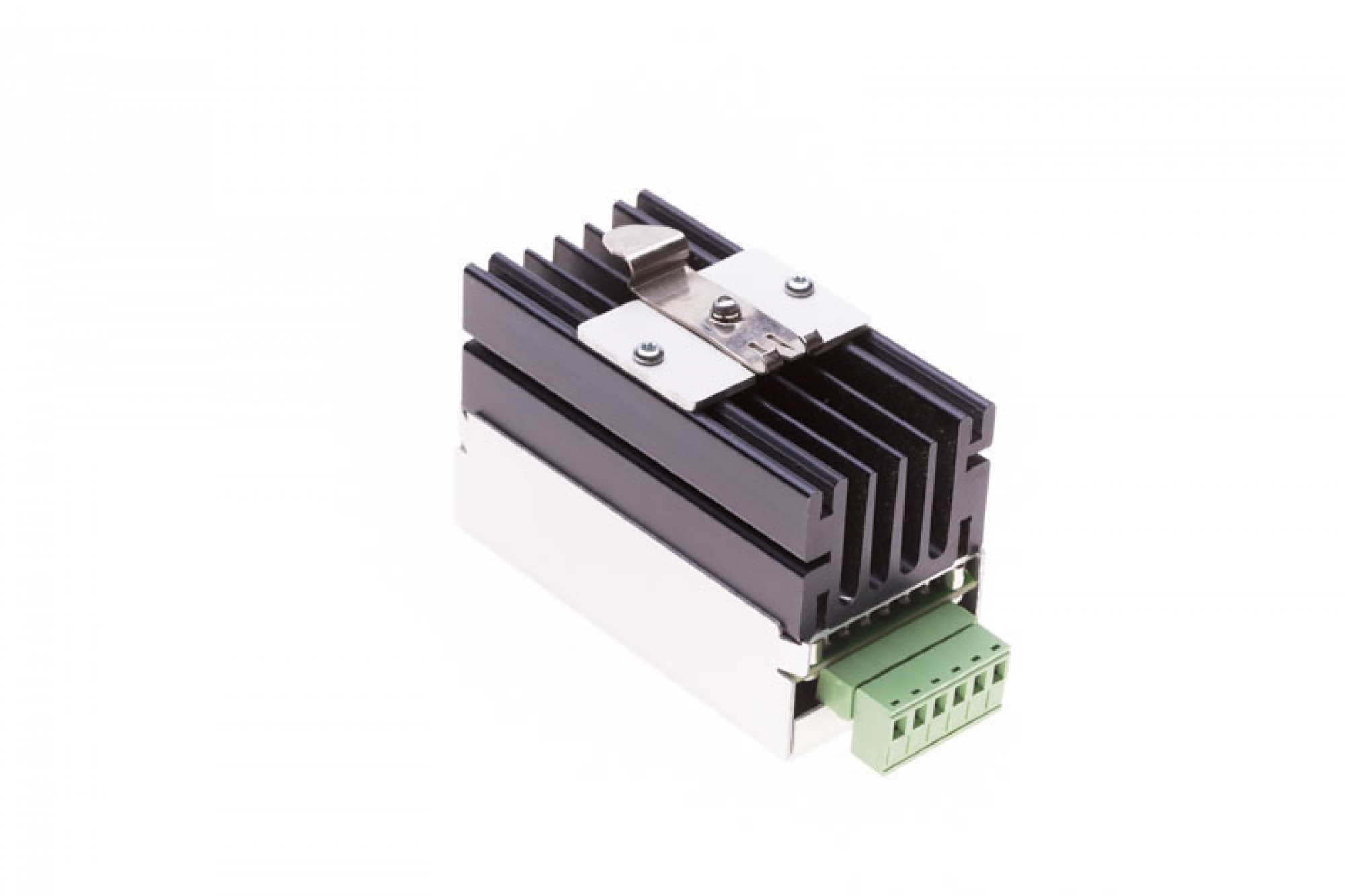

- Quick and easy mounting on DIN rail
- Integrated heatsink
- Extensive protection (short circuit, overtemperature, overvoltage)
- High noise immunity
- Current reduction to 60% over control signal , or automatically if no steps are sent
- Made in Germany. Complete development and production in Germany
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
