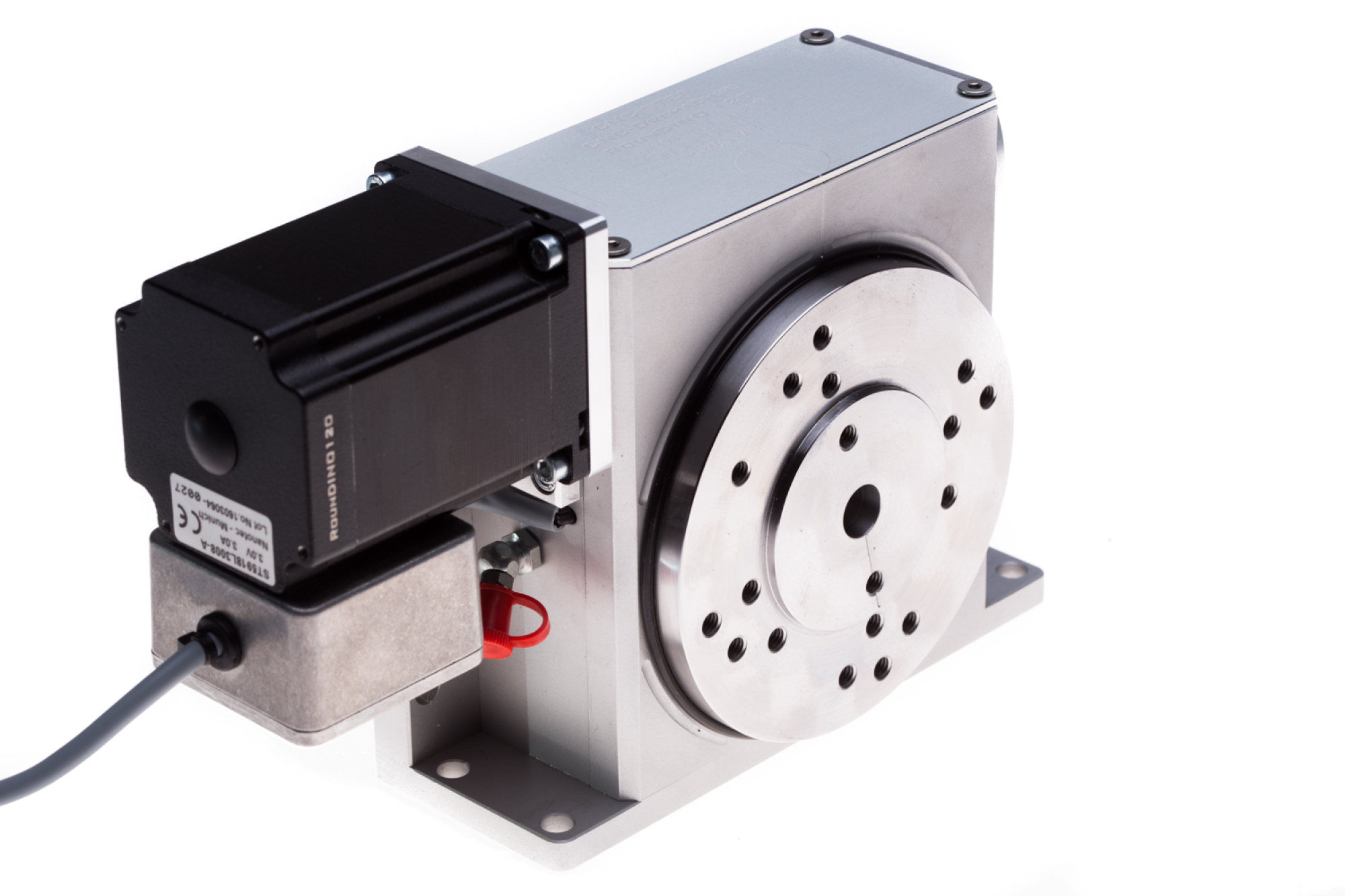

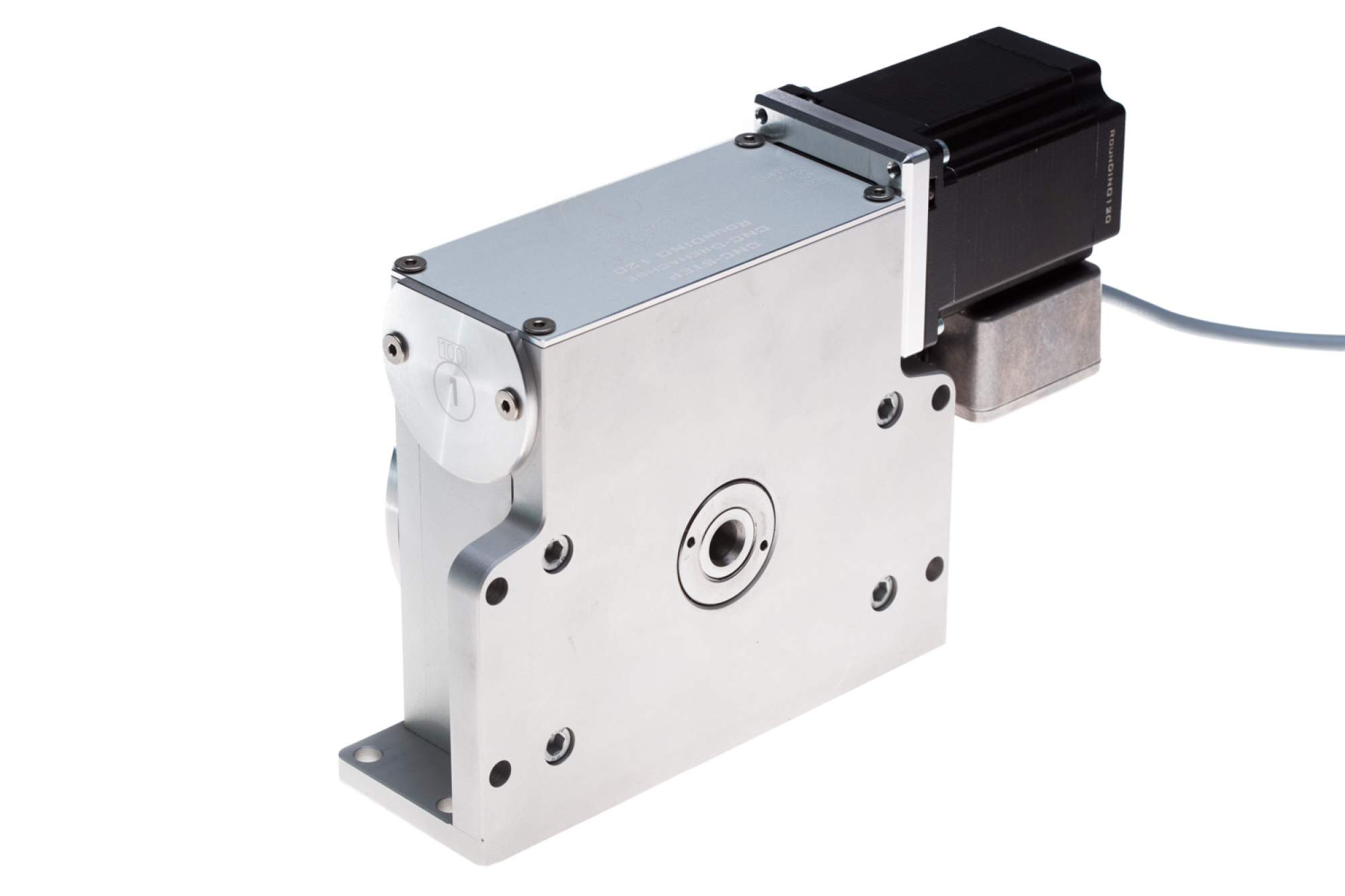

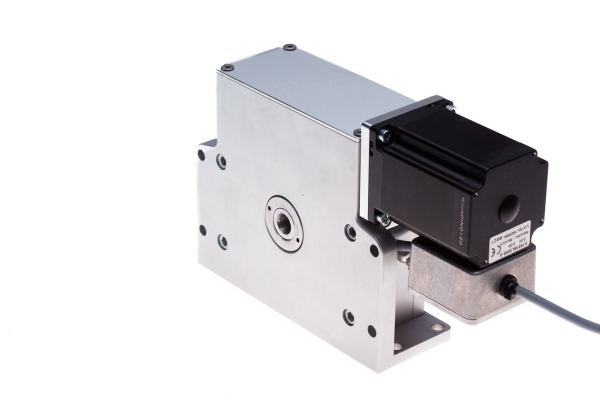

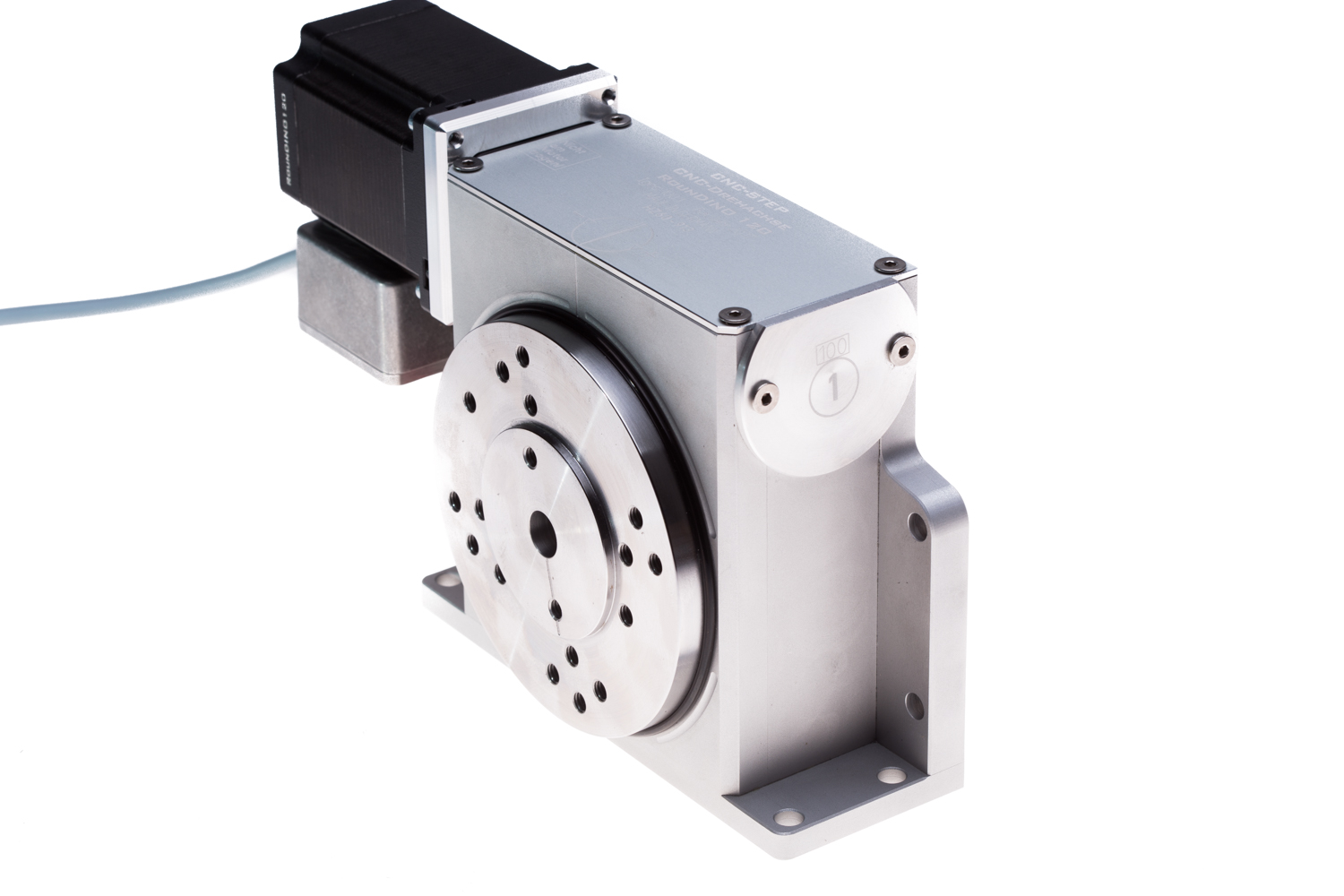

Precision axis of rotation 120 mm

With this rotation axis we sticked to our motto: Stability and precision as well as high quality of units for all component groups. Sticking to this motto we are delighted to present our rotation table / rotation axis, which is certainly looking for similar ones in this price class.

Details:

• Highest quality made in Germany with high-precision worm-gear and a stopping moment of over 20 Nm
• Consequently 3D 360° are possible with almost all materials.
• This means for our High-Z users: milling in plastics, timber, Aluminium or even brass, engraving of all kinds.
• Because of its exisitng 7 mm drill-hole, the rotation table can be clamped horizontally as well as vertically. Operation of great ease is therefore asured.
• Overall height vertical: 145 mm
• Overall height horizontal: 70 mm
• Top height: 60 mm
• Faceplate diameter: 109 mm
• Maximum feed diameter: 120 mm
• Running time: 0.025 - 0.04 mm
• Parallelism Mounting surface horizontal / contact surface Faceplate: 0,02 - 0,03 mm
• Centering flange diameter: 55 h7 mm
• Circular running accuracy: 0.015 - 0.025 mm
• Reversing play maximum 0.04 °
• Internal cones: MK 1
• Internal bore / through hole: D = 10.3 mm
• Bearings: 4-position sealed ball bearing / preloaded, play-free
• Output torque: 20 Nm!
• Weight: 3.9 kg
• High-precision, ground worm gear with gear ratio: 100: 1 / preloaded with disc springs
• Mounting holes: Diameter 7 mm with spacing 150 mm / 4 vertical, 4 horizontal
• Rotations on the chuck flange: from 0.1U / min to approx. 3.2 rpm.
• Step resolution at the output: 160,000 steps per revolution with 1/8 step operation Setting accuracy +/- 1 step
• orresponds to +/- 0.135 angular minutes

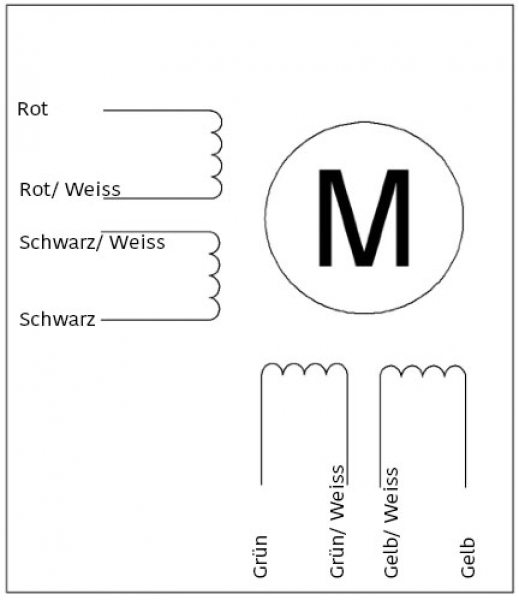

• Stepper: Nanotec® SH5618L1608
