20 mm T-Slot Plate PRO for AL 1107

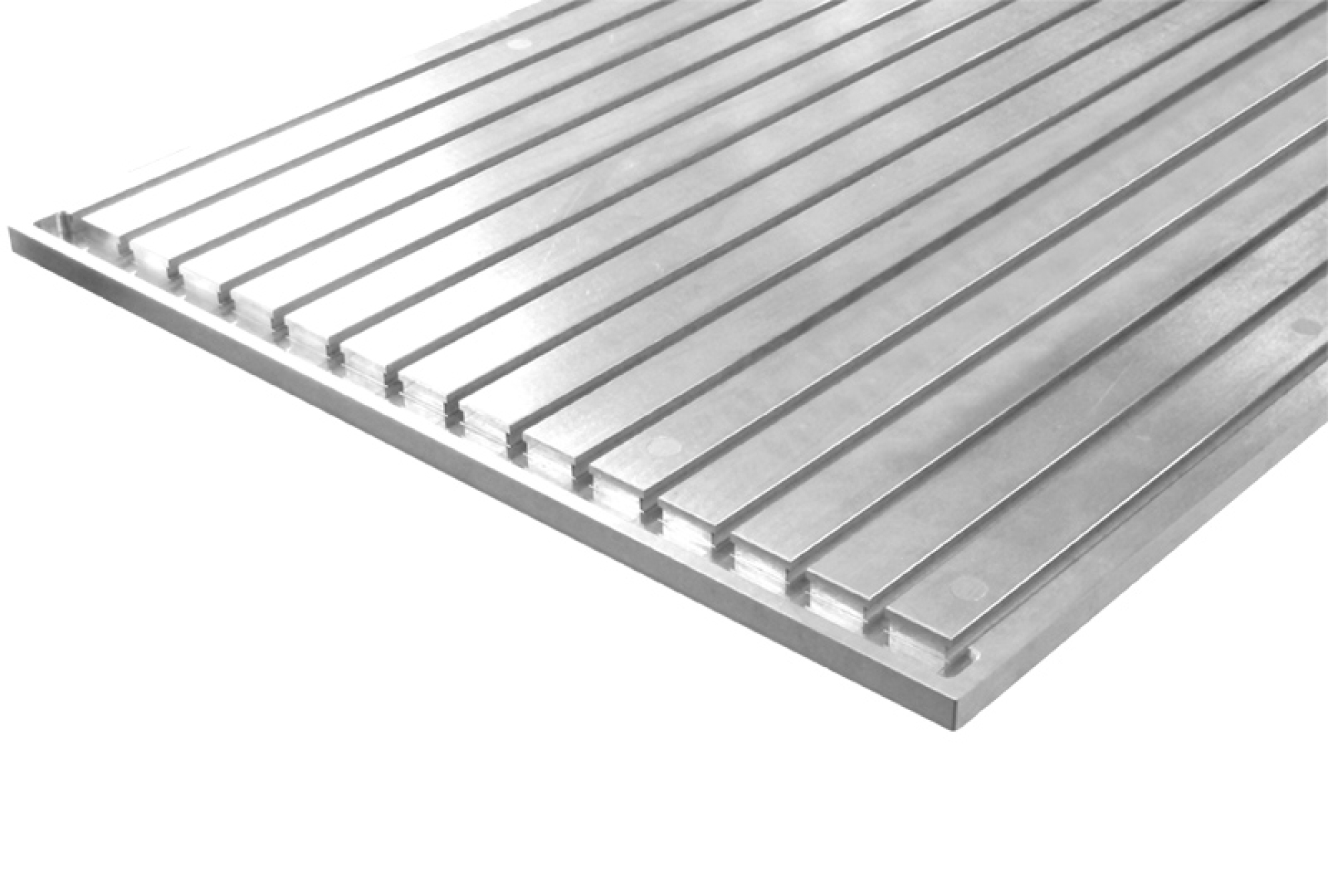

T-Slot plate PRO for AL 1107
This milled T-slot was made especially for our ALU-Line.The mounting holes are designed to fit the profile of ALU-Line, ensure trouble-free exchange is possible.
Circumferential groove for flood cooling.
For fastening the T-slot on the ALU-Line, we recommend our special mounting kit.
Dimensions approx:
- Length: 1500 mm
- Width: 750 mm
- Height: 20 mm
- Slot width: 8 mm
Delivery time on request
The shop can not calculate shipping costs, please contact us in case of order by email or phone.

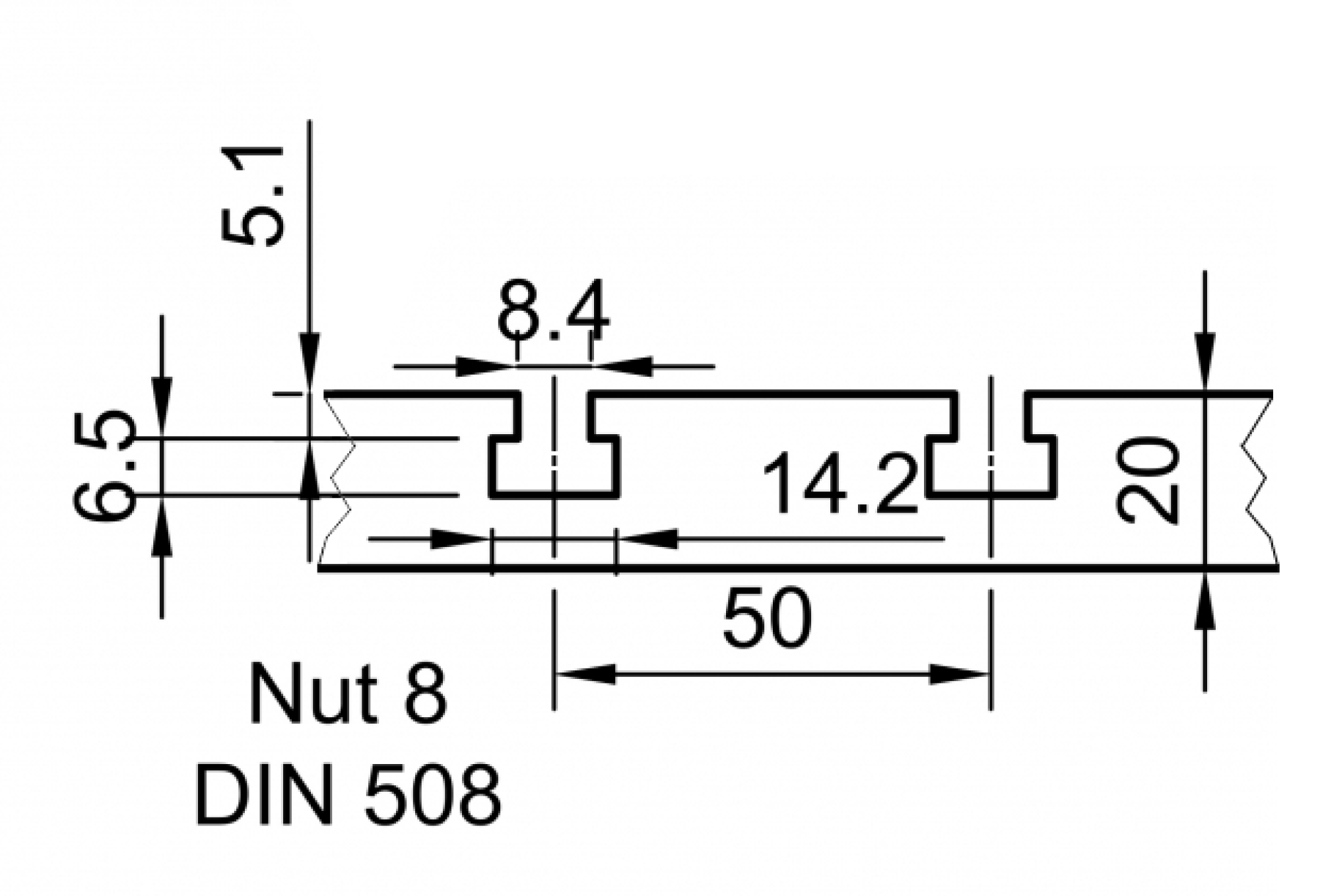

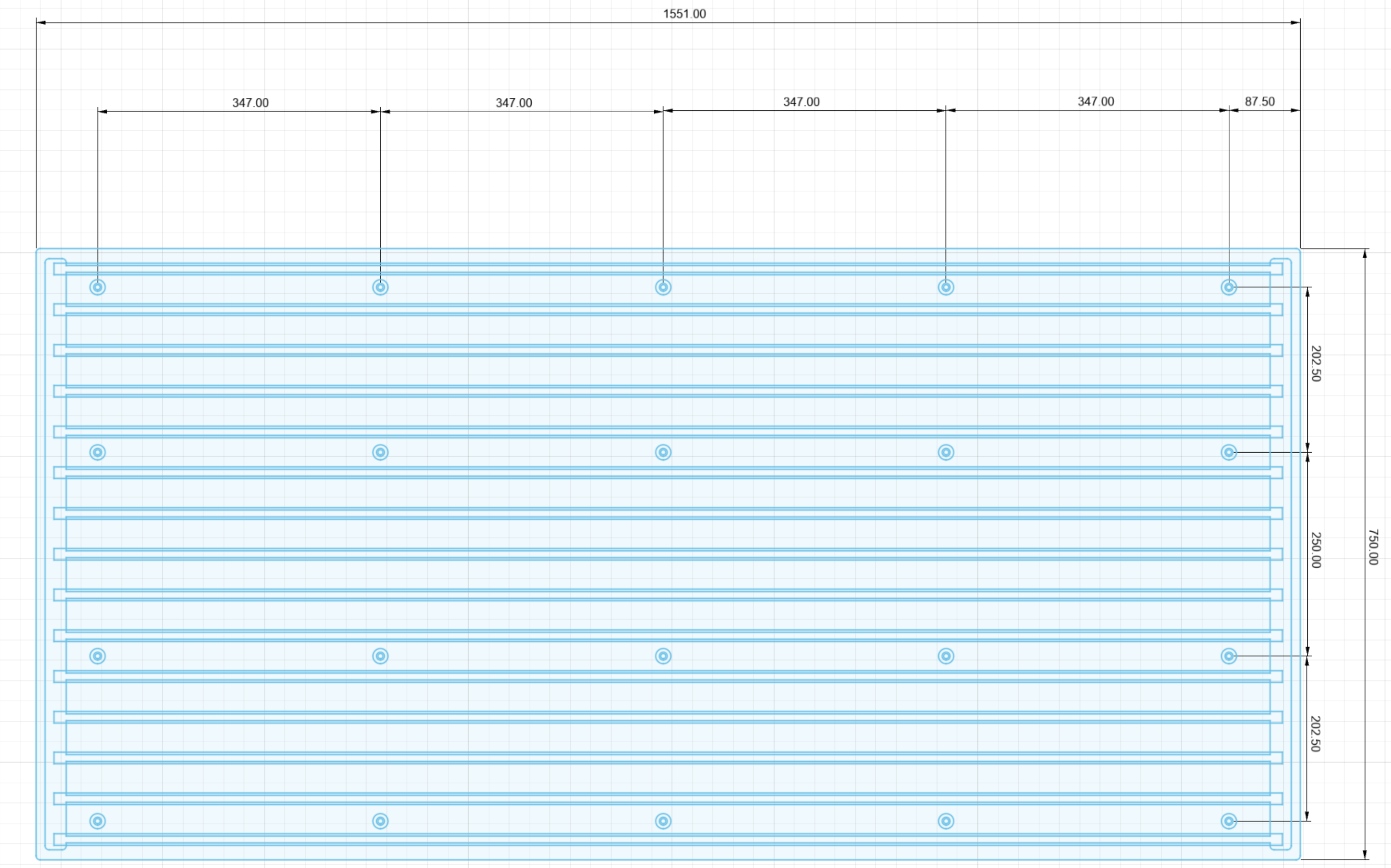

Dimensions T-Solt plate PRO- ALU-Line 1107Manufacturer: | Responsible person: |
