20 mm T-Slot Plate PRO for AL 1105

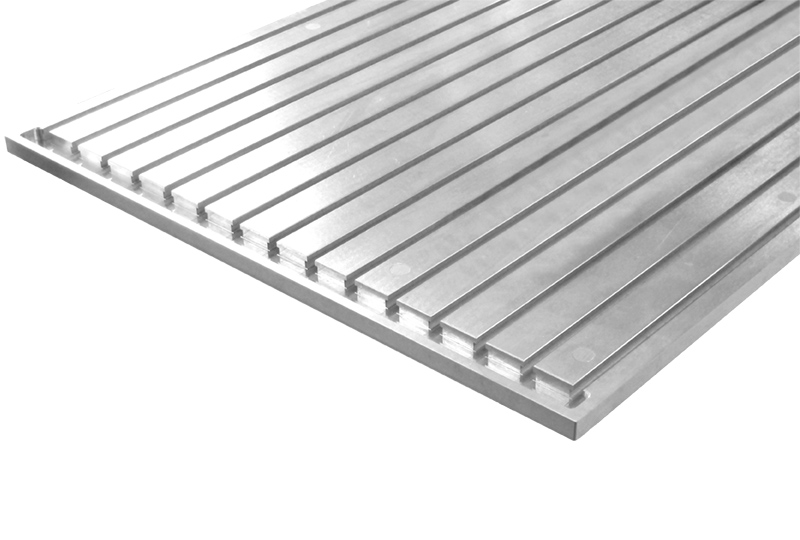

T-Slot plate PRO for AL 1105
This milled T-slot was made especially for our ALU-Line.The mounting holes are designed to fit the profile of ALU-Line, ensure trouble-free exchange is possible.
Circumferential groove for flood cooling.
For fastening the T-slot on the AL-Line, we recommend our special mounting kit.

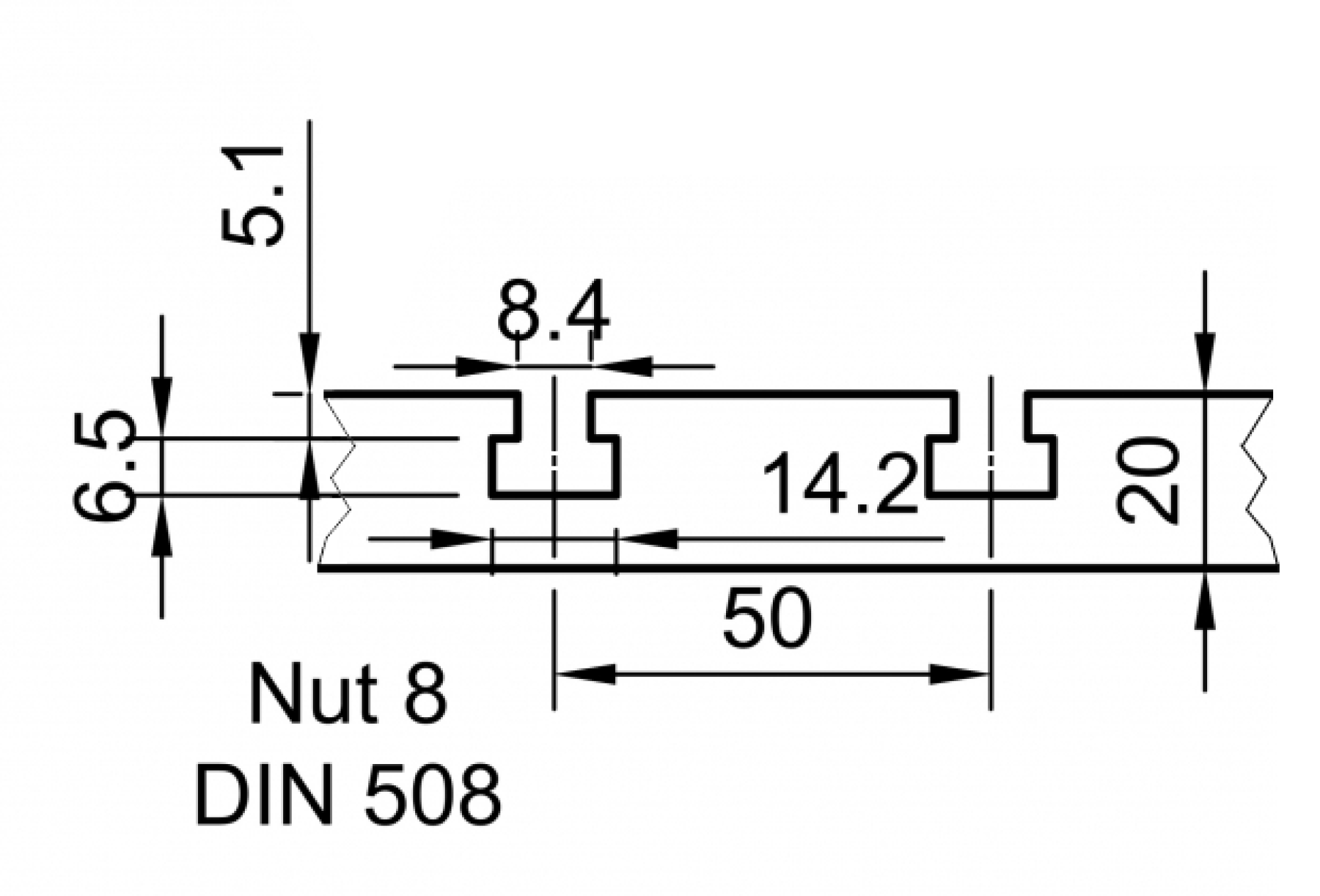

Dimensions approx:
- Length: 1500 mm
- Width: 550 mm
- Height: 20 mm
- Slot width: 8 mm
Delivery time on request
The shop can not calculate shipping costs, please contact us in case of order by email or phone.
