20 mm T-Slot plate PRO for AL 1513
20 mm T-Slot plate PRO for AL 1513

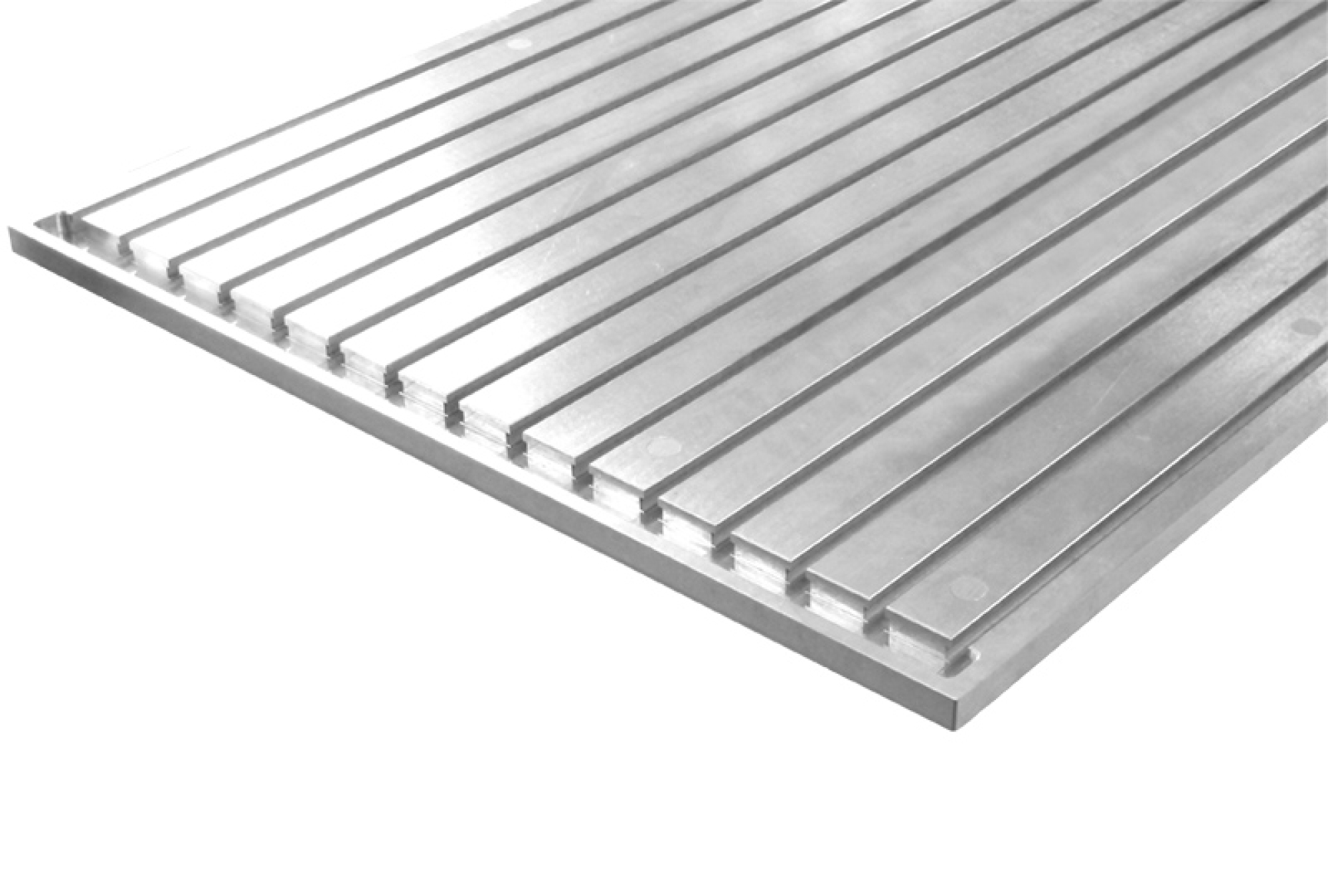

This milled T-slot was made especially for our ALU-Line.The mounting holes are designed to fit the profile of ALU-Line, ensure trouble-free exchange is possible.
Circumferential groove for flood cooling.
For fastening the T-slot on the ALU-Line, we recommend our special mounting kit.
Dimensions approx:
- Length: 1962 mm
- Width: 1350 mm
- Height: 20 mm
Delivery time on request
The shop can not calculate shipping costs, please contact us in case of order by email or phone.
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
