20 mm T-slot plate PRO for AL 1510

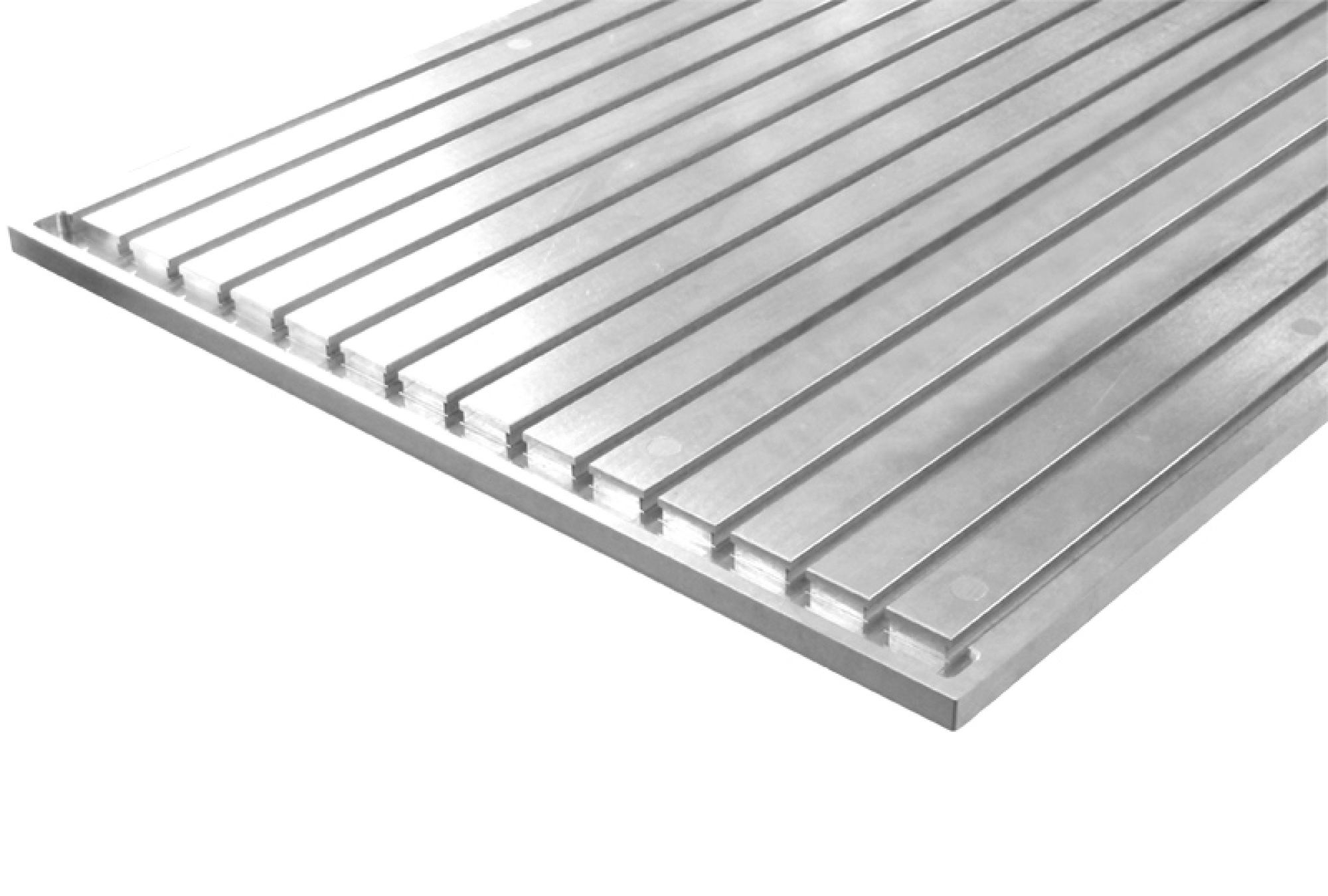

20 mm T-Slot plate PRO for AL 1510
This milled T-slot was made especially for our ALU-Line.The mounting holes are designed to fit the profile of ALU-Line, ensure trouble-free exchange is possible.
Circumferential groove for flood cooling.
For fastening the T-slot on the ALU-Line, we recommend our special mounting kit.

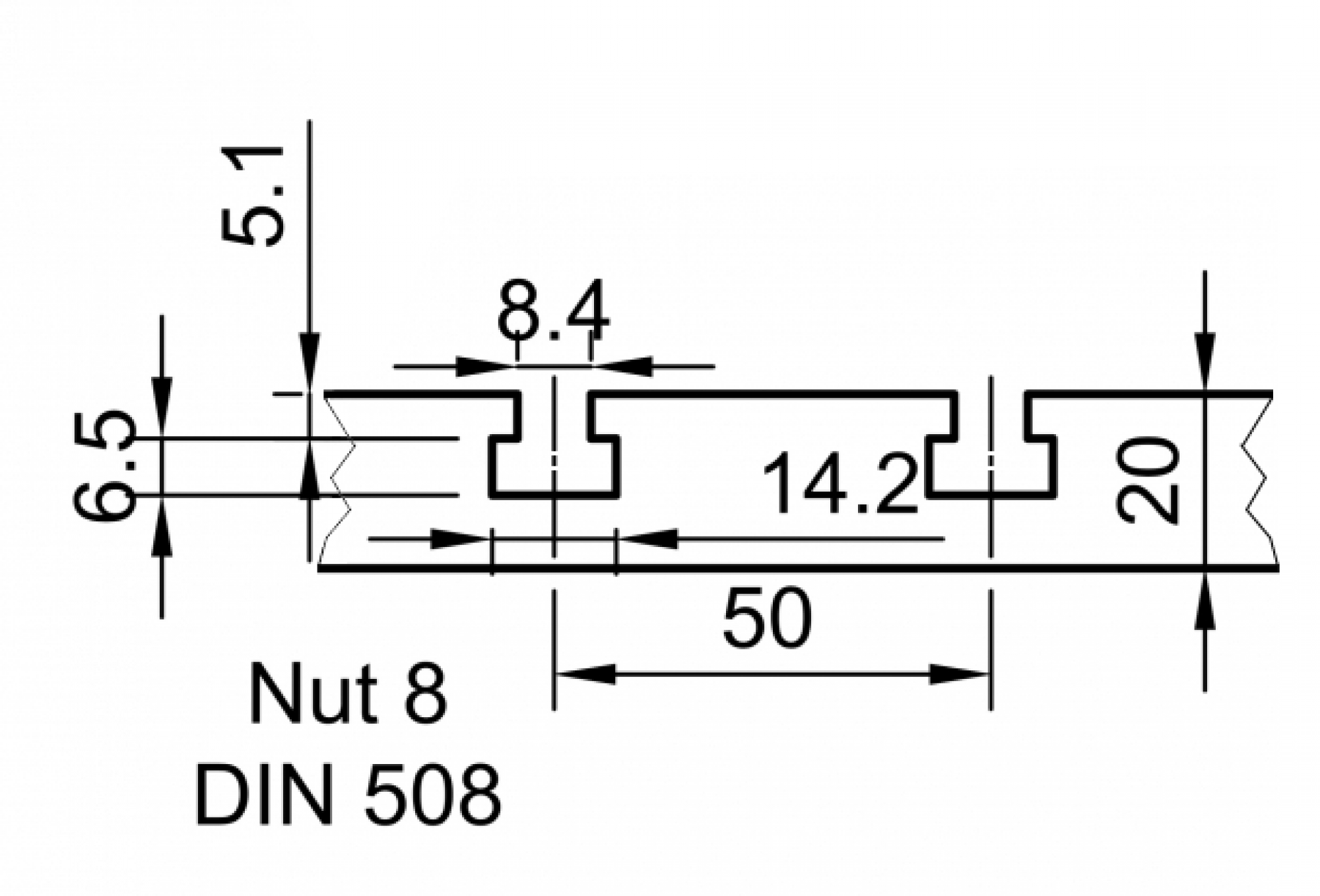

Dimensions approx:
- Length: 1962 mm
- Width: 1050 mm
- Height: 20 mm
Delivery time on request
