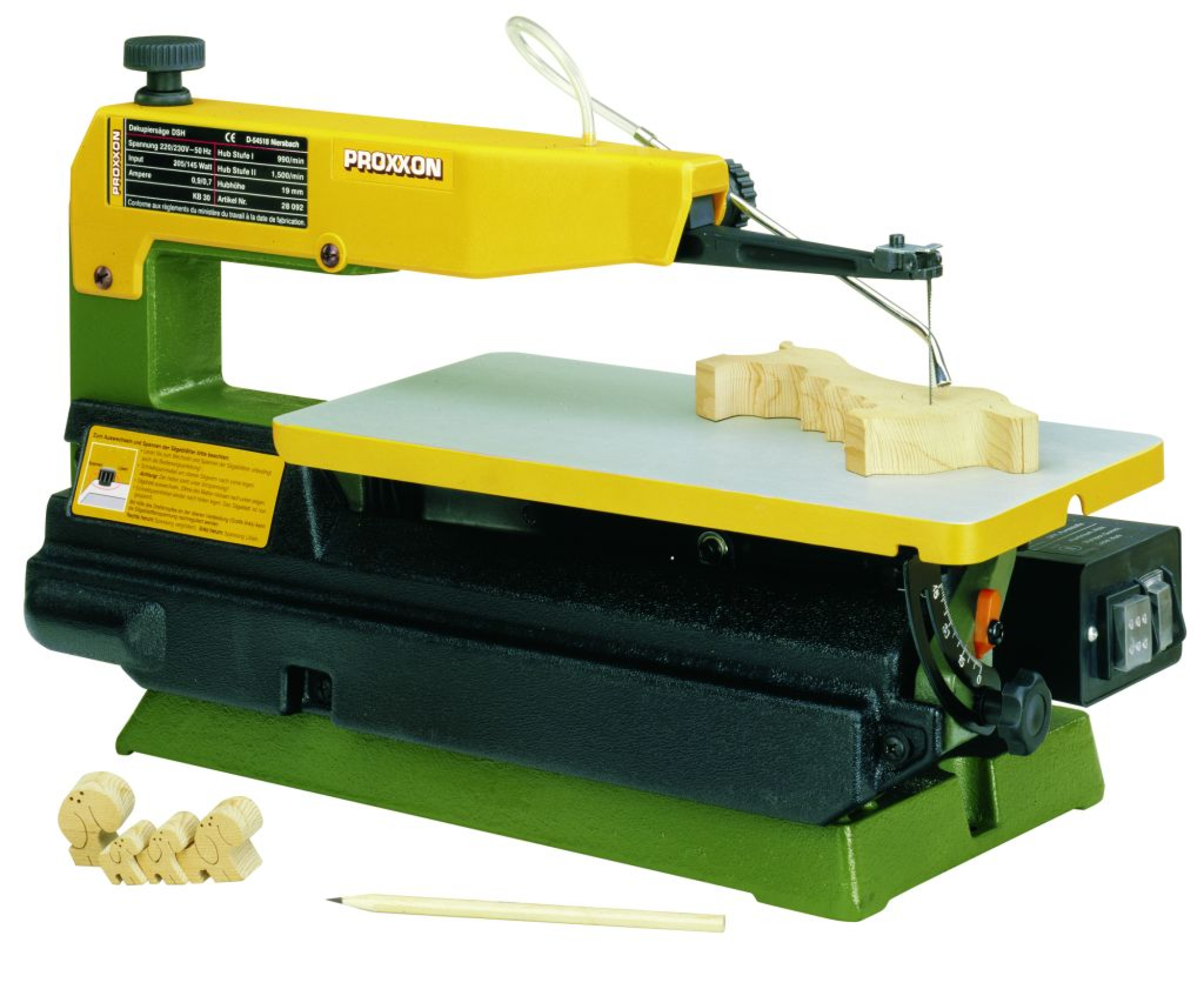

2-speed scroll saw DSH

The right device for mould construction, precision mechanics, model building, architectural model building, designing, toy manufacturing (puzzles as well), carpentry (refurbishing antique furniture). Also ideal for schools and training workshops. For standard saw blades with pin ends. But normal fretsaw blades without pins also can be securely clamped.

Cutting performance 50mm in wood, 30mm in plastic, 10mm in non-ferrous metals. For cutting Plexiglas, glass fibre reinforced plastic, foam, rubber, leather or cork. Slender saw arm of die-cast aluminium for unobstructed view from top. Air blower with adjustable air nozzle. Sturdy table of die-cast aluminium (360 x 180mm), can be tilted by 45° for mitre sawing. Base housing of cast steel for stability and working without vibrations. Includes 5 each coarse and fine saw blades.

Technical data:
220 - 240V. Powerful, brushless 2-speed motor (205W). Stroke alternatively 900 or 1,400rpm. Stroke length 19mm. Throat 400mm. Maximum cutting depth 50mm, at 45° mitre 25mm. Weight approx. 20kg.
