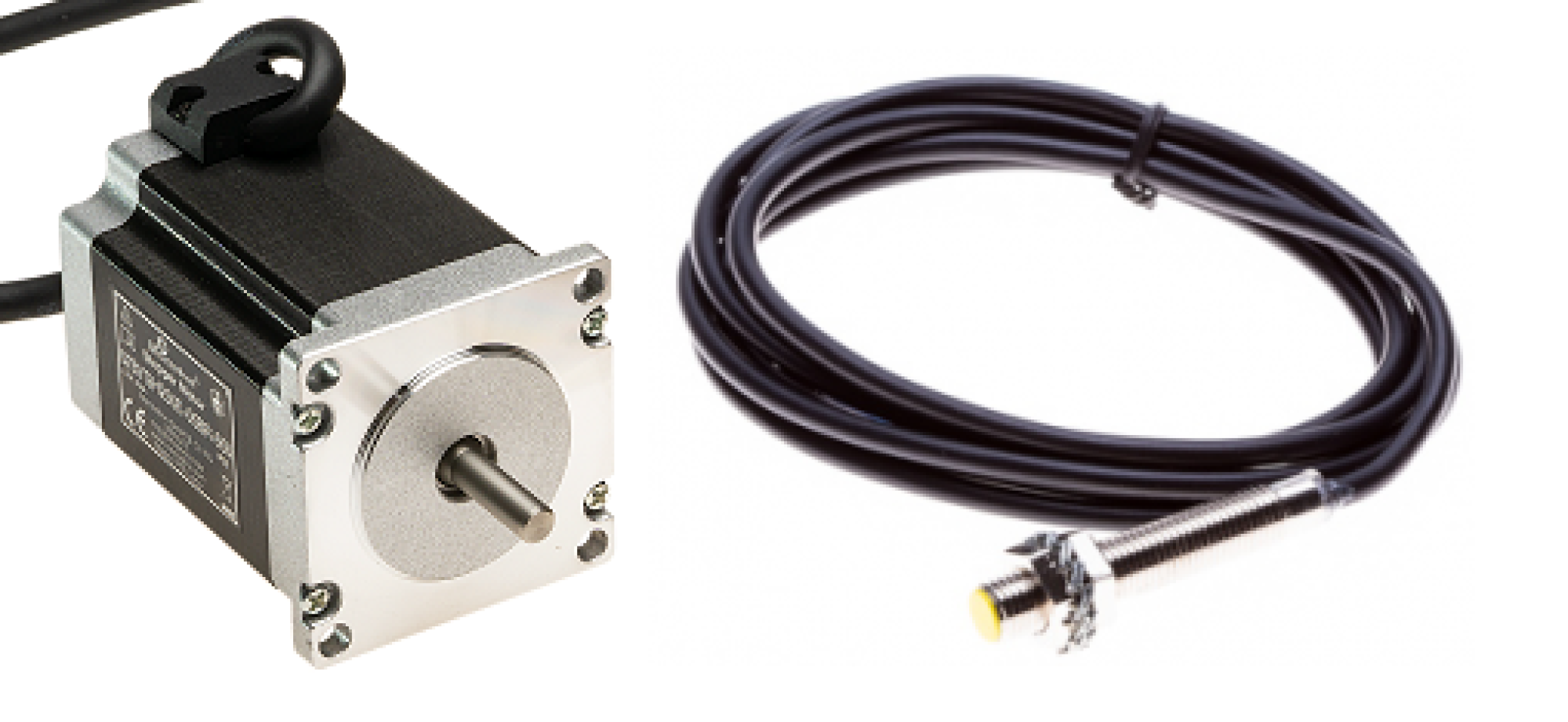

Stepper motors 4 x 1.8 Nm, reference sensors 3 x NPN NC 1 mm and cables

Stepper motors 4 x 1.8 Nm, reference sensors 3 x NPN NC 1 mm and cables

Stepper motors:

• 1 x stepper motor 1.8 Nm for X/transverse axis
• 2 x stepper motor 1.8 Nm for Y/longitudinal axis
• 1 x stepper motor 1.8 Nm for Z-axis
• Each stepper motor with 5.5 m cable suitable for drag chains

Technical Specifications Drive:

• NEMA 23 compatible Stepping Motor
• With fully connected cable, suitable for drag chains, length 5.50 m
• Angle 1.8, 200 steps
• Size: 57 mm width & height, 76 mm length
• Shaft: Ø 6.35 mm
• Unipolar Connection 3 A / 1.45NM / 1 Ohm
• Bipolar Series Connection 2.1 A / 1.8 Nm / 2 Ohms
• Bipolar Parallel Connection 4.2 A / 1.8 Nm / 0.5 Ohm
• Cable length 30 cm
• Weight: approx 1.1 kg

Reference sensors:

• 3 x inductive proximity switch NPN NC contact (NPN NC)
• 10 ... 30 V, IP65, with LED, M8, SA: 1 mm

Cables:

• 15 m 3-pole cable suitable for drag chains for inductive reference sensors, not assembled
• 15 m earthing cable 4mm² for stepper motors
• 4 x ring cable lug for connecting earthing cable to motors
• Shrink tubing assortment 100 pieces
