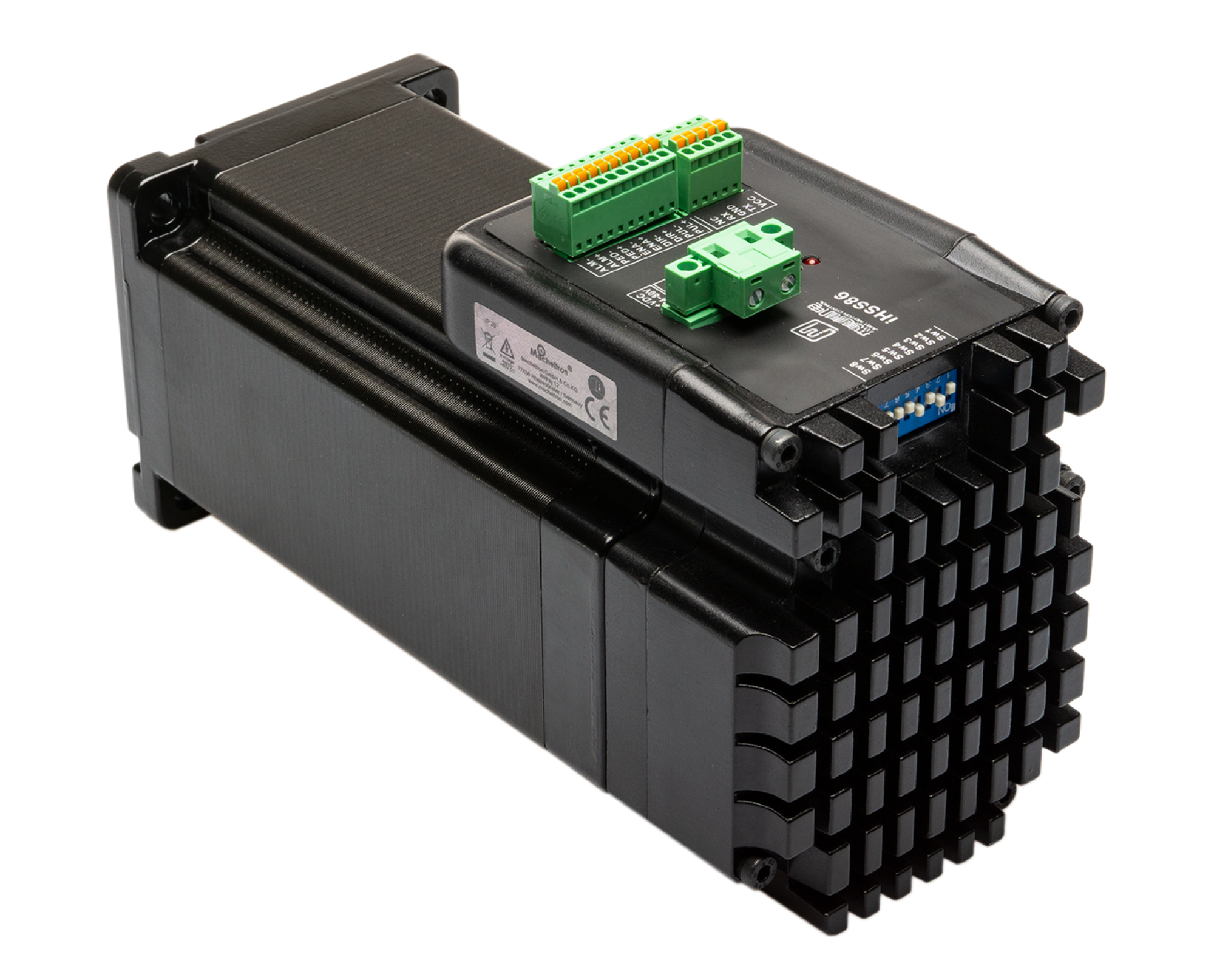

JMC Closed Loop Integrated Stepper Motor
IHSS86-80-120 | 12.2 Nm | NEMA 34

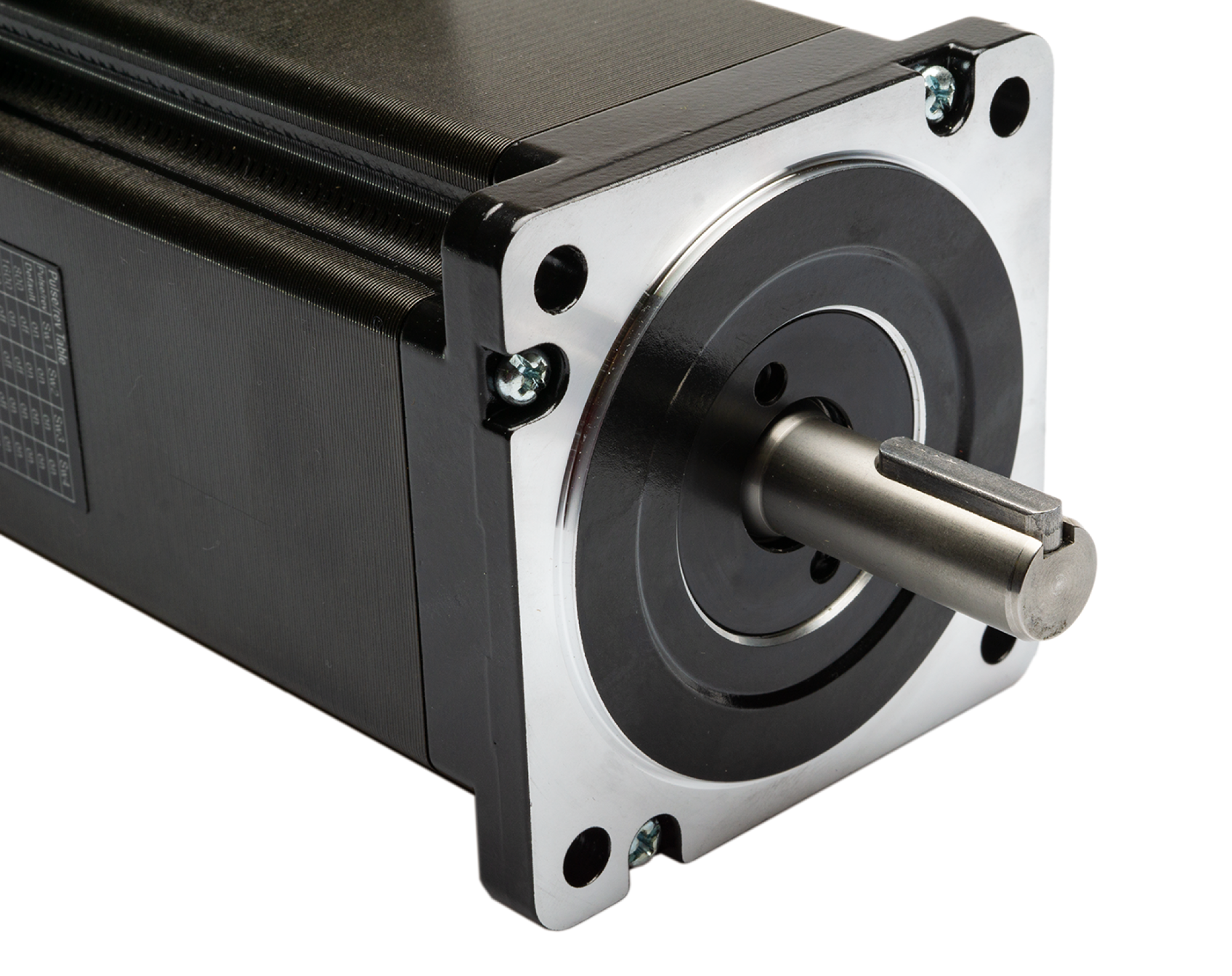

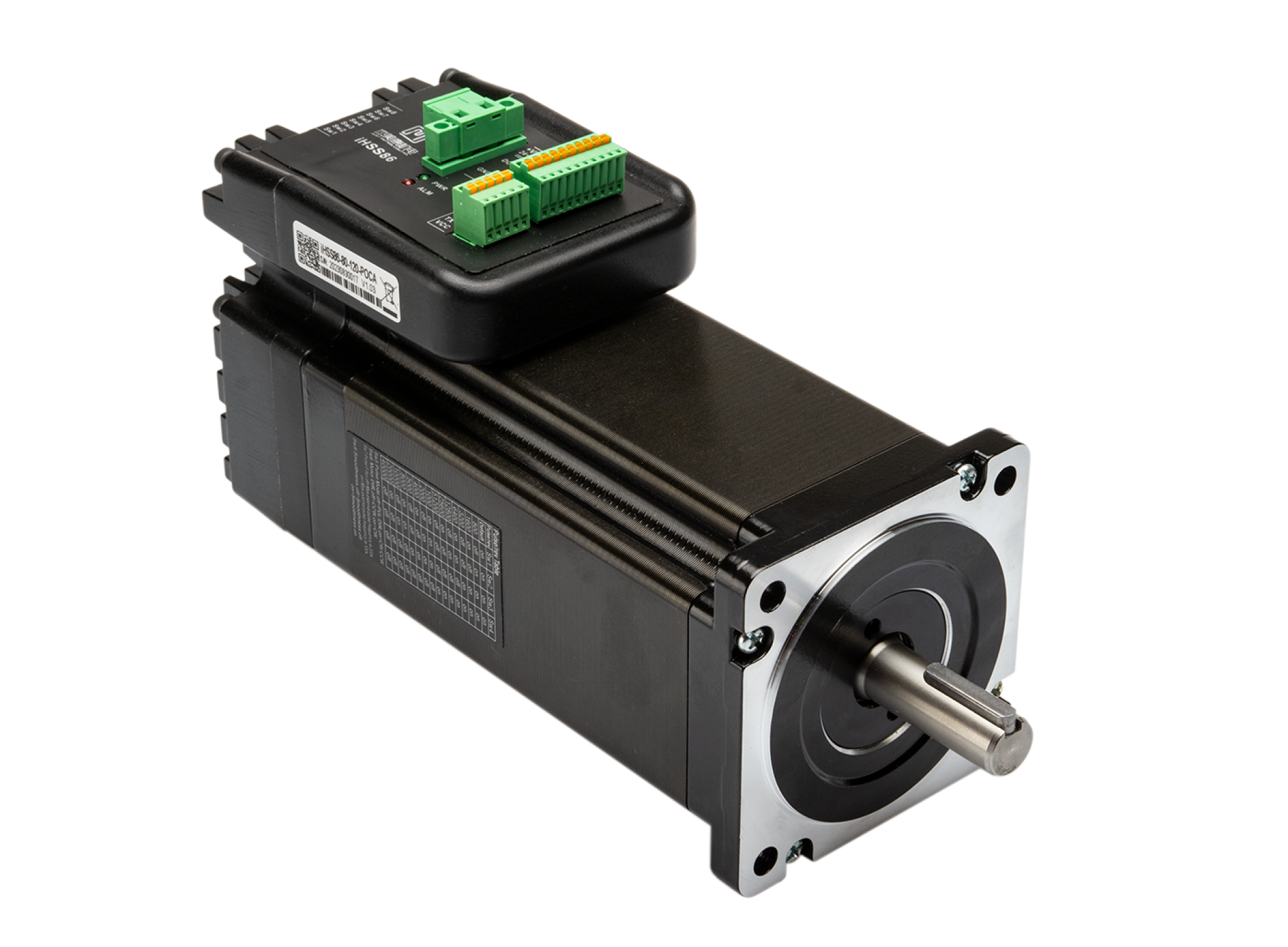

Length of shaft: 38 + 1 mm Shaft diameter: 14 mm Center diameter:73 mm Hole spacing NEMA 34: 69.58 mm

Precise, quiet, reliable

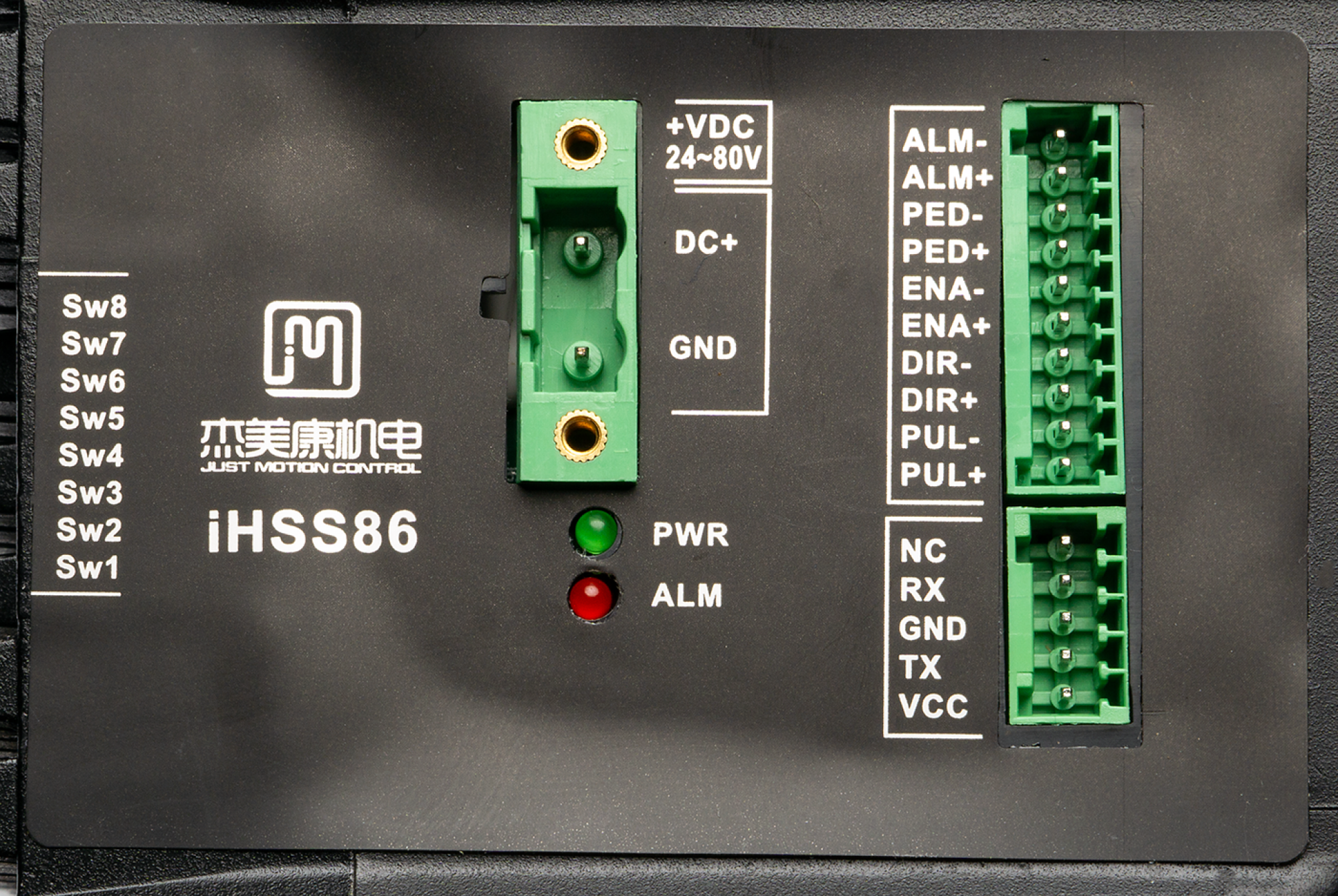

The IHSS42-24-05 combines the strengths of stepper and servo drives in a space-saving, complete system. The integrated power amplifier significantly reduces hardware and controller setup requirements. In closed-loop operation, a high-resolution encoder with a 50 μs sampling rate detects even the smallest position deviations and compensates for them immediately, thus eliminating true step losses. The microsteps are defined once directly on the motor using DIP switches.

Compared to other solutions, the quiet running is astonishing, not only at high speeds. Even during otherwise rough slow running, as well as during acceleration and deceleration, the integrated JMCs behave exceptionally quietly and smoothly.

Technical Data:
Step angle (Resolution): 1.8°

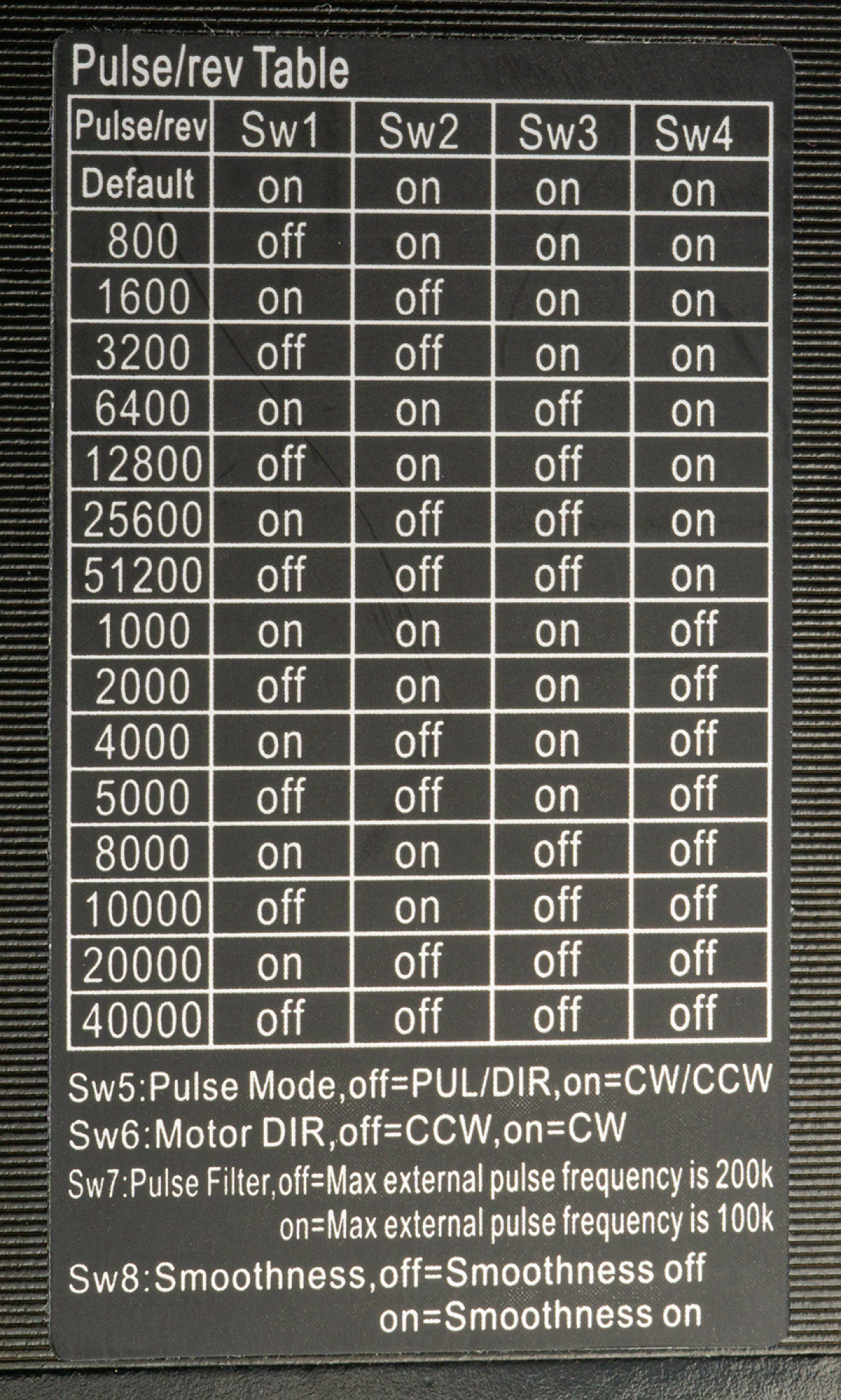

Max. Microsteps: 51200
Min. Microsteps: 200

Operating voltage:24 ... 100 V DC
Rated current (current per winding): 6 A
