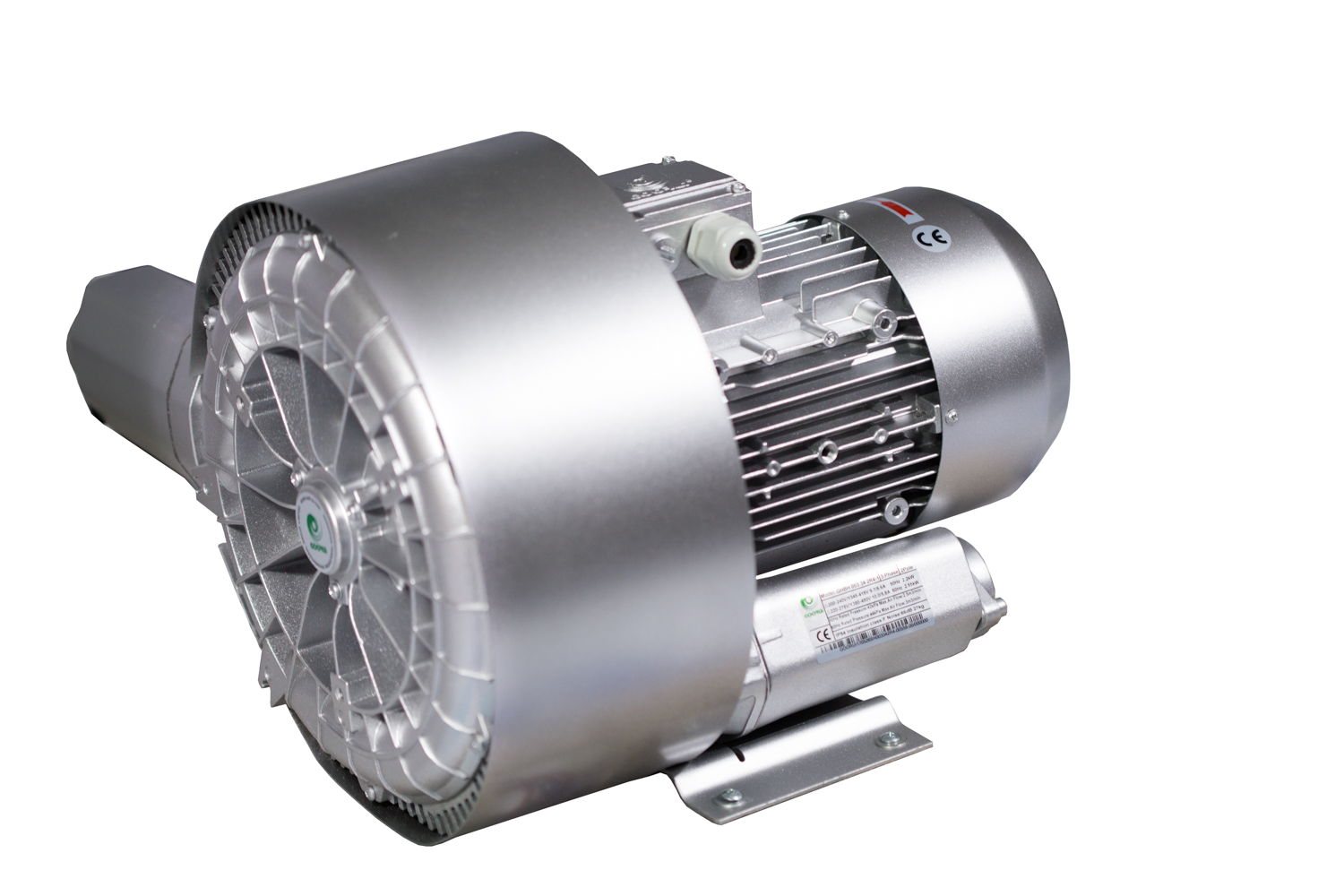

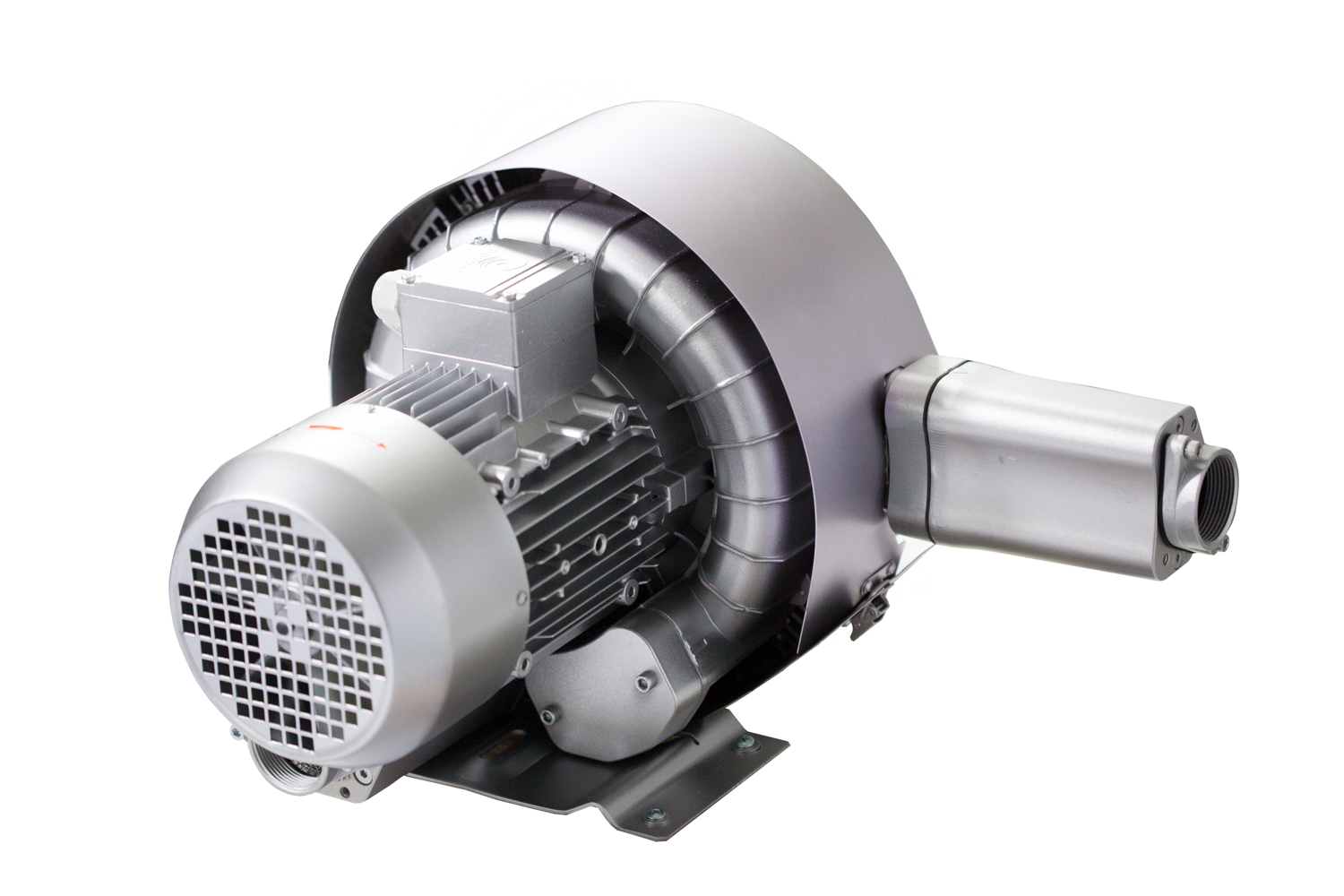

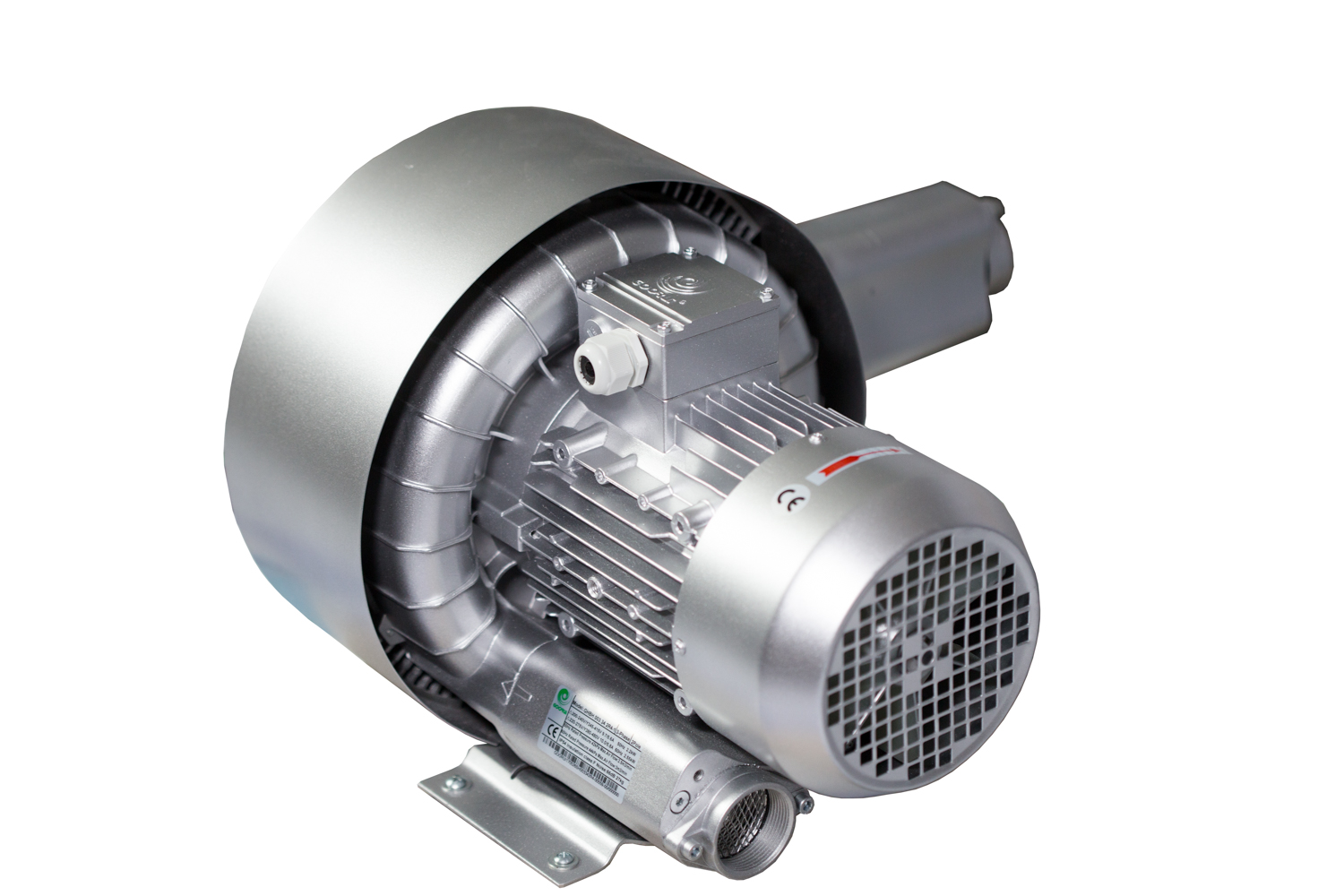

Side channel blower 1.5 kW / -260 mbar double-stage
Side channel blower 1.5 kW / -280 mbar double stage
The advantages of the side channel blower are:
- Economical and environmentally friendly,
Side channel blower stand out due to their low energy consumption. They are quiet and environmentally friendly as a result of oil-free compression. - Compact design
The motor is directly flange-mounted to the pump. - Low maintenance
Robust design, lifetime lubricated bearings and surface cooled motor guarantee a long service life for the pump.
- Phases: 1
- Power: 1500 Watt
- Voltage: 230 Volt
- Ampacity: 9,0 A
- Maximum flow rate: 150 m³/h
- Maximum static pressure: - 280 mbar
- Maximum static vacuum: 290 mbar
- Noise level: 66db (A)
- Dimensions L x B x H: 322 x 401 x 315 mm
- Weight: 26 kg
Datasheet (english)
