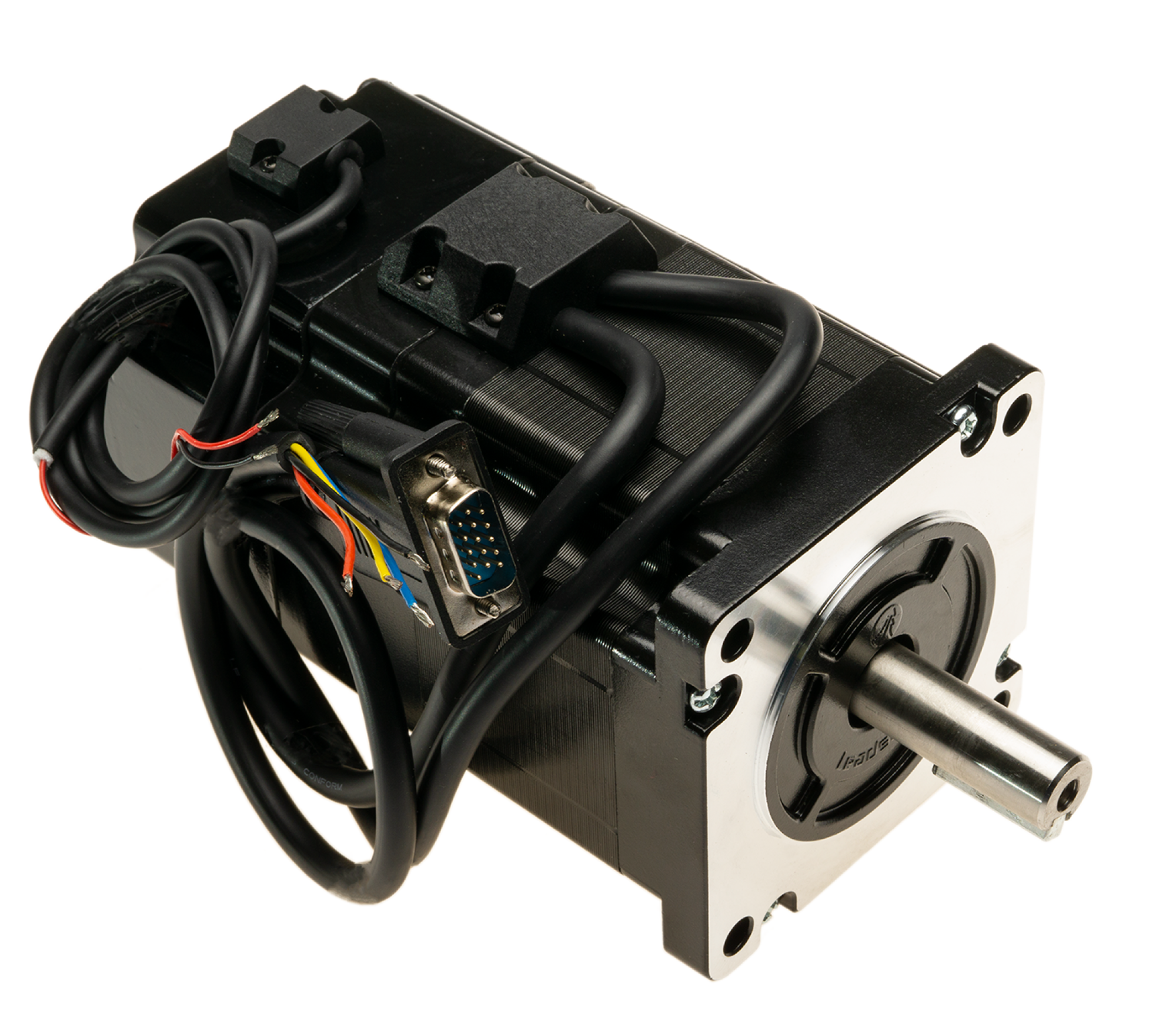

Hybrid Servo Motor 4.5 Nm with brake
2-phase stepper motor with encoder and brake
In combination with the suitable driver this motor makes up a hybrid servo closed loop system without loss of steps. Whithout current, the brake holds the motor in place, for example to prevent a Z-axis from dropping unintentionally.
Technical Specifications:
- 2-phase hybrid stepper motor
- 1000-lines / Rev. encoder
- Standard Nema 34 dimensions
- High torque design
- Angle 1.8, 200 steps
- Size: 86 mm width & height, 144 mm length
- Shaft: Ø 14 mm with key
- Cable length 27 cm
- Weight: approx 2.7 kg

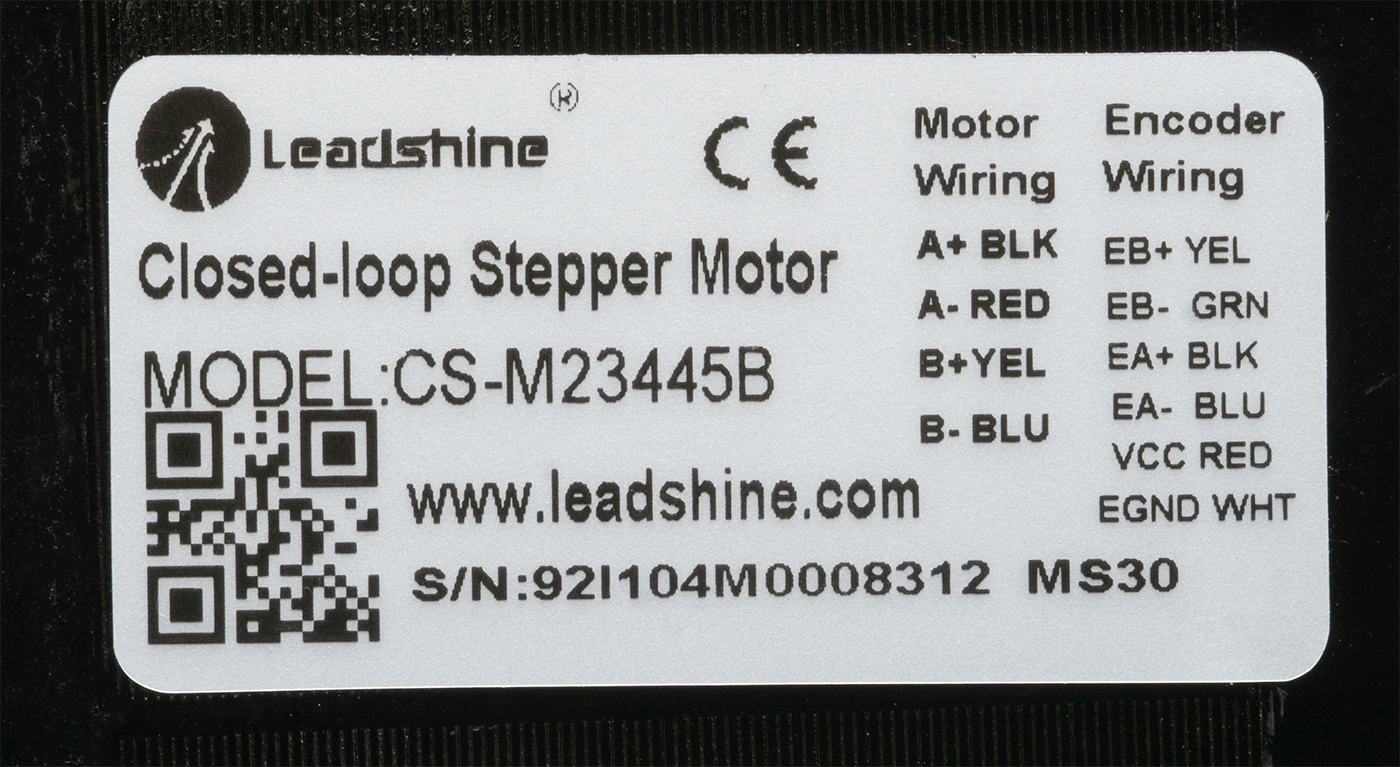

Data sheet CS-M23445B (german)
