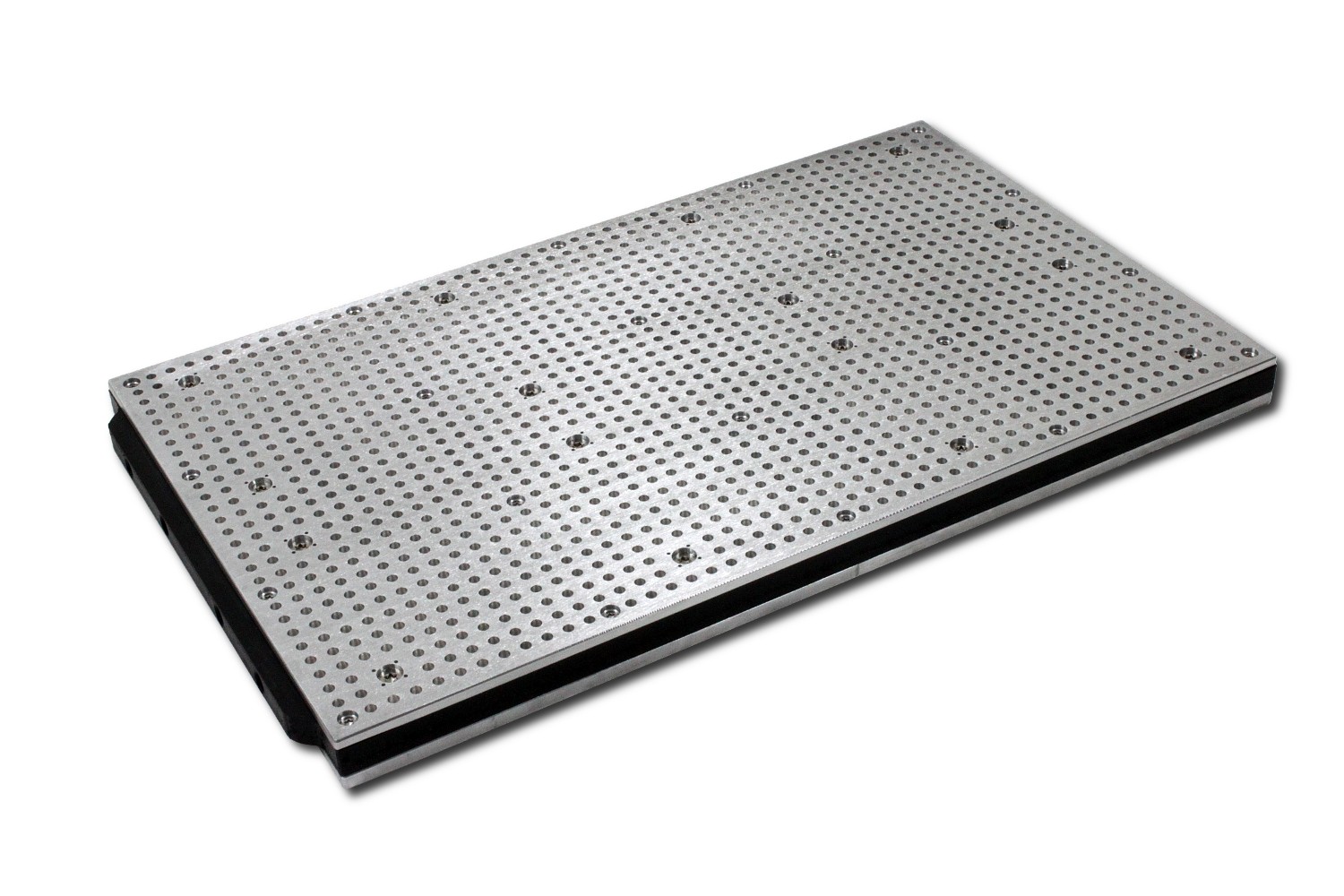

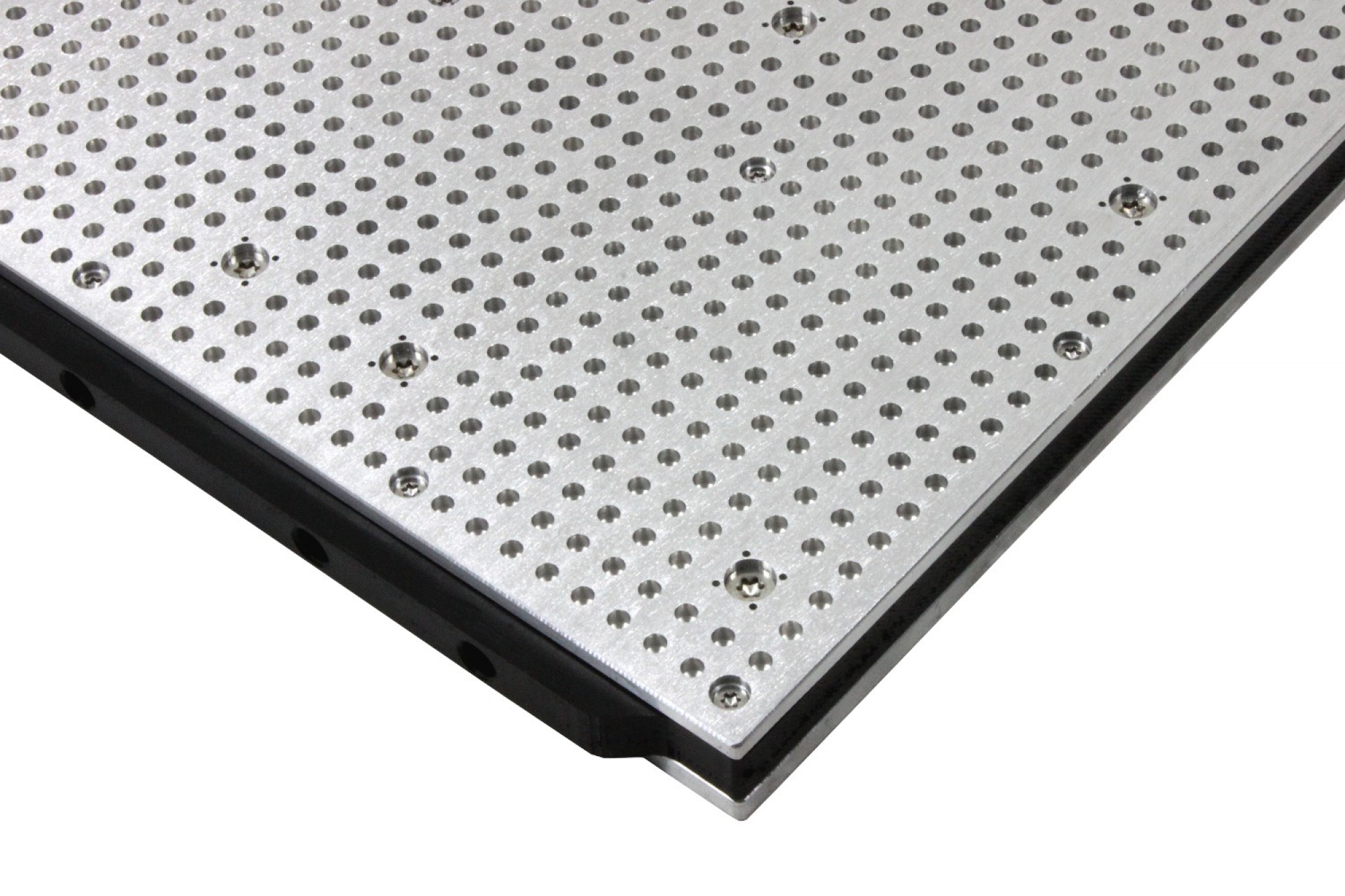

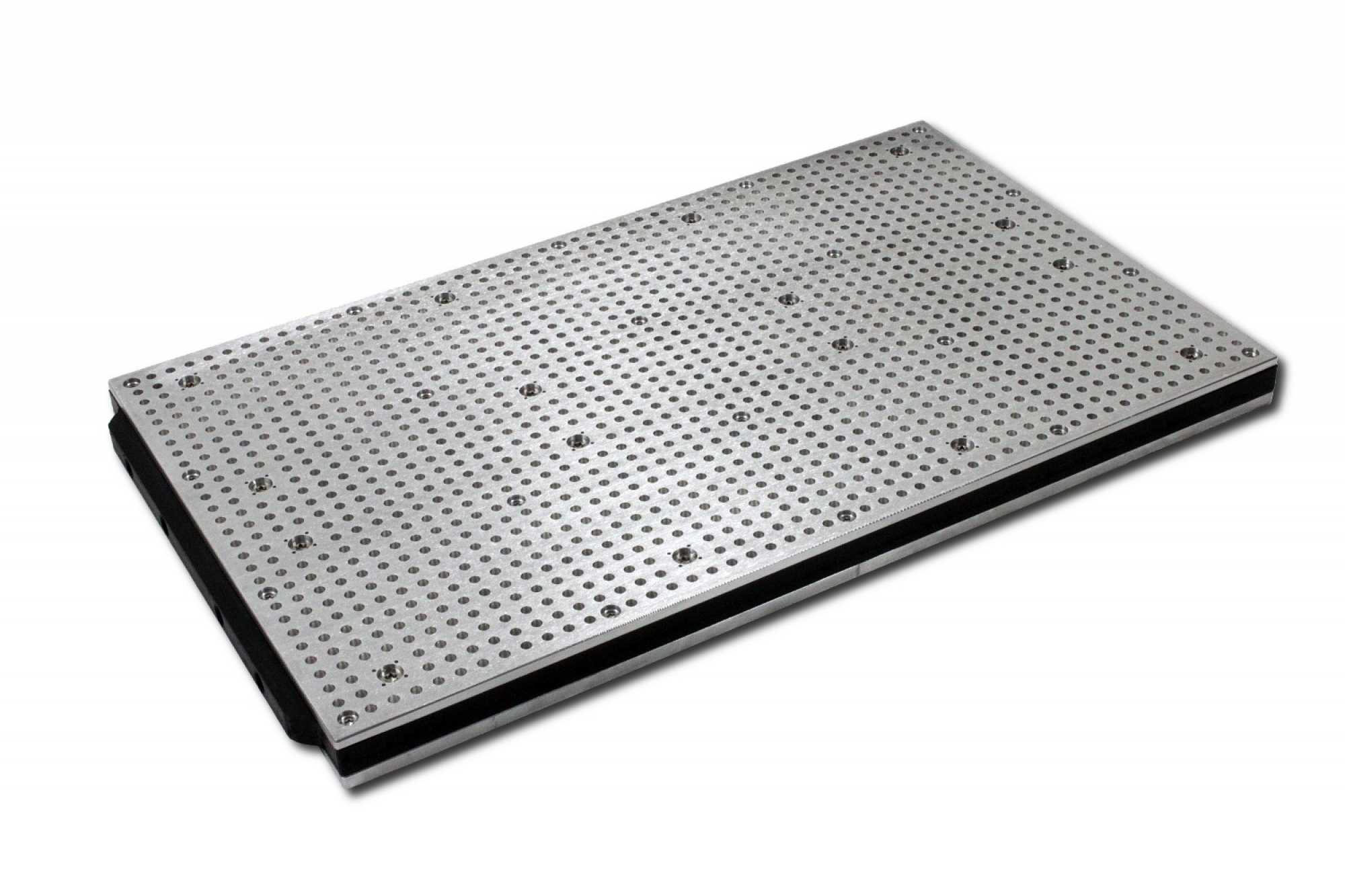

Vacuum table 5030 Seal 2 ALU
Vacuum table 5030 Seal 2 ALU
Technical data:- Material: Aluminium, Polyethylen
- Measure: 510 x 300 mm
- Clamping area: 500 x 300 mm
- Hight: 29 mm
- Drillings: 0.3 mm
- Holegrid: 10 x 10 mm
- Hose conections: 10 mm
- Adaptermat: hole rubber mat
- 1x Vacuum table VT5030 SEAL
- 1x Vaccum conector

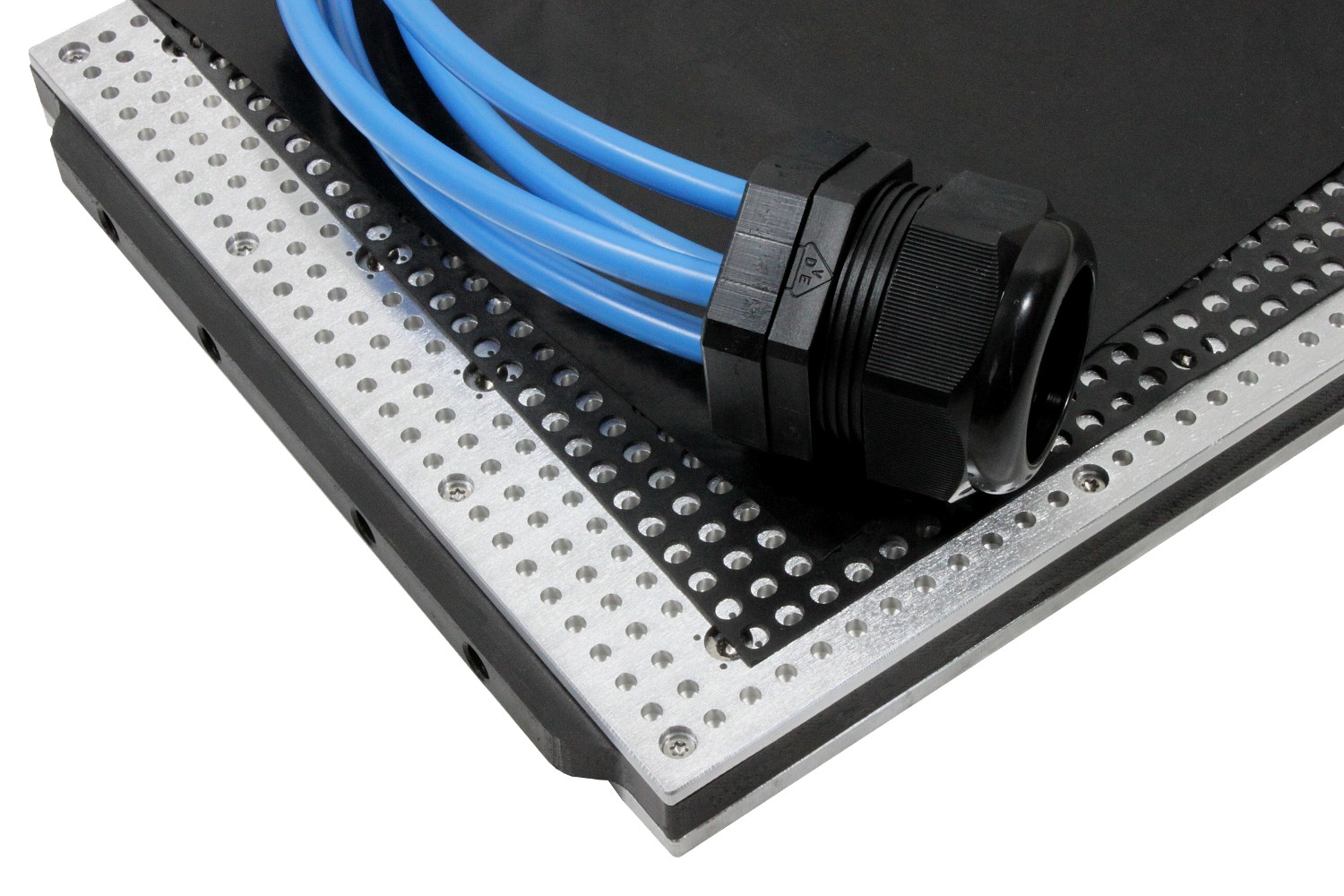

- 1x cover rubber mat
- 1x hole rubber mat
- 1x set conection hose

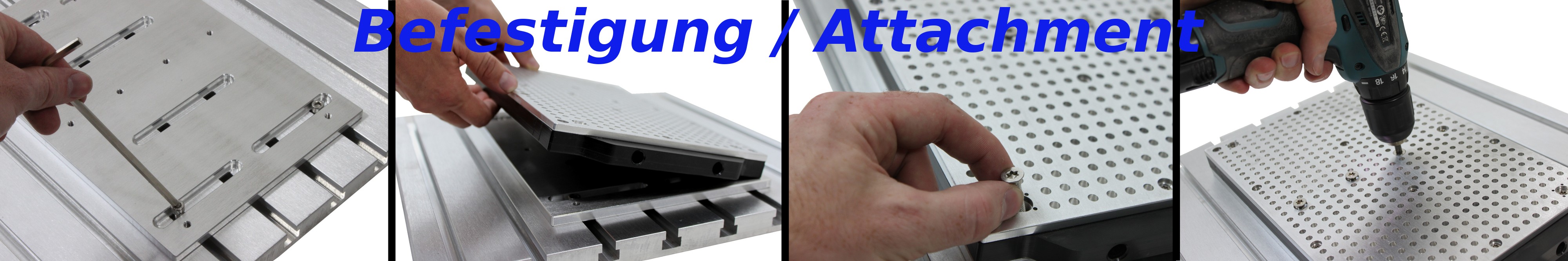

If necessary, the vacuum table can also be mounted on a plate.
If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
